Hinges & Pivots
-
Don-Jo SH74545 Full Mortise Spring Hinge, 4 1/2" x 4 1/2", Steel Material
Model: DON-SH74545
Product SpecificationsFinishes 600, 632, 633, 640, 651, 652Product Type Spring HingeANSI K81071FShelf Pack 24 Features UL ListedSingle ActingSelf lubricating bearingsEasy spring tension adjustmentNon handedGauge 0.134Material SteelDon-Jo
Starting at$42.15$30.99 -
Don-Jo BB74545 Full Mortise Ball Bearing, 4-1/2" x 4-1/2", Steel Material
Model: DON-BB74545
Product SpecificationsFinishes 600, 632, 633, 639, 640, 651, 652Product Type Ball BearingANSI A8112Shelf Pack 24 Features For Medium Weight DoorAverage FrequencyANSI TemplateGauge 0.134Material Steel Options Non removable pin available. Please specifiy...Don-Jo
Starting at$30.95$22.76 -
-
Don-Jo TP 34 Top Pivot, 4-1/4" x 1-1/16", 3/4" Offset
Model: DON-TP-34
Product SpecificationsFinishes 613, 626Type of Pivot TopShelf Pack 1Material Non-FerrousFasteners 8 ea Wood Screws and 8 ea Machine ScrewsLoad Capacity 600 LbsPivot Offset 3/4"Width 4-1/4'"Height 1-1/16"Thickness 1/4"Don-Jo
$187.20$137.65 -
-
Don-Jo BB84545 Full Mortise Ball Bearing, 4 1/2" x 4 1/2", Brass Material, Satin Chrome Finish
Model: DON-BB84545
Product SpecificationsFinishes 626Product Type Ball BearingANSI A2112Shelf Pack 24 Features For Medium Weight DoorsAverage FrequencyANSI TemplateGauge 0.134Material Brass Options Non removable pin available. Please specifiy NRP as a prefix.Don-Jo
Starting at$81.85$60.18 -
Don-Jo BB94545 Full Mortise Ball Bearing, 4-1/2" x 4-1/2", Stainless Steel Material
Model: DON-BB94545
Product SpecificationsFinishes 630Product Type Ball BearingANSI A5112Shelf Pack 24 Features For Medium Weight DoorsAverage FrequencyANSI TemplateGauge 0.134Material Stainless Steel Options Non removable pin available. Please specifiy NRP as a prefix.Don-Jo
Starting at$97.10$71.40 -
Don-Jo BP 1 34 LHR Bottom Pivot 5 1/2" x 4 3/4", 3/4" Offset
Model: DON-BP-1-34-LHR
Product SpecificationsFinishes 613, 626Type of Pivot BottomShelf Pack 1Material Non-FerrousFasteners 8 ea Wood Screws and 8 ea Machine ScrewsLoad Capacity 600 LbsPivot Offset 3/4"Width 5-1/2"Height 4-3/4"Thickness 11/32"Don-Jo
$326.50$240.07 -

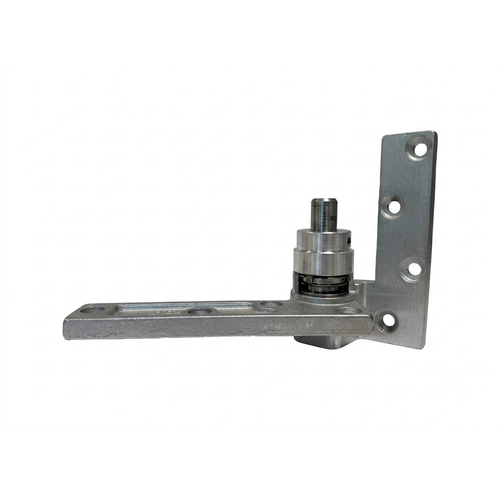

Don-Jo BP 1 34 RHR Bottom Pivot 5 1/2" x 4 3/4", 3/4" Offset
Model: DON-BP-1-34-RHR
Product SpecificationsFinishes 613, 626Type of Pivot BottomShelf Pack 1Material Non-FerrousFasteners 8 ea Wood Screws and 8 ea Machine ScrewsLoad Capacity 600 LbsPivot Offset 3/4"Width 5-1/2"Height 4-3/4"Thickness 11/32"Don-Jo
$326.50$240.07 -
Don-Jo BP 2 34 Bottom Pivot 8-7/16" x 1-3/16", 3/4" Offset
Model: DON-BP-2-34
Product SpecificationsFinishes 605, 606, 612, 613, 626Type of Pivot BottomShelf Pack 1Material Non-FerrousFasteners 9 ea Machine Screws 1/4-20 X 3/4†FPHMS and 3 ea Lead Expansion Shied anchorsLoad Capacity 600 LbsPivot Offset 3/4"Width...Don-Jo
$357.30$262.72 -
-
-
Don-Jo E8WIP 34 RHR Electrified Pivot 5" x 4-1/4", 3/4" Offset
Model: DON-E8WIP-34-RHR
Product SpecificationsFinishes 613, 626Type of Pivot ElectrifiedANSI CO7321Shelf Pack 1Material Non-FerrousFasteners 8 ea Wood Screws and 8 ea Machine ScrewsLoad Capacity 600 LbsPivot Offset 3/4"Width 5"Height 4-1/4"Thickness 5/16"Don-Jo
$654.75$481.44 -

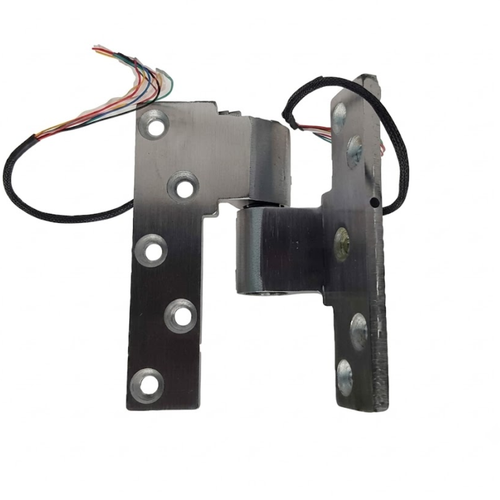

Don-Jo E8WIP34 Electrified Pivot 5" x 4-1/4", 3/4" Offset
Model: DON-E8WIP34
Product SpecificationsFinishes 613, 626Type of Pivot ElectrifiedANSI CO7321Shelf Pack 1Material Non-FerrousFasteners 8 ea Wood Screws and 8 ea Machine ScrewsLoad Capacity 600 LbsPivot Offset 3/4"Width 5"Height 4-1/4"Thickness 5/16"Don-Jo
$654.75$481.44 -
-
-
Don-Jo HWBB75045 Heavy Weight 5" x 4 1/2", Steel Material, Satin Chrome Finish
Model: DON-HWBB75045
Product SpecificationsFinishes 632, 633, 640, 651, 652Product Type Heavy WeightANSI A8111Shelf Pack 24 Features For Heavy DoorsHigh FrequencyAll heavy duty hinges come with non-removable pins as standard (NRP)Gauge 0.19Material SteelDon-Jo
$103.30$75.96 -
-
-
-
-
Don-Jo IP 34 LHR Intermediate Pivot 5" x 4-1/4", 3/4" Offset
Model: DON-IP-34-LHR
Product SpecificationsFinishes 613, 626Type of Pivot IntermediateANSI CO7321Shelf Pack 1Material Non-FerrousFasteners 8 ea Wood Screws and 8 ea Machine ScrewsLoad Capacity 600 LbsPivot Offset 3/4"Width 5"Height 4-1/4"Thickness 5/16"Don-Jo
$253.45$186.37 -
Don-Jo IP 34 RHR Intermediate Pivot 5" x 4-1/4", 3/4" Offset
Model: DON-IP-34-RHR
Product SpecificationsFinishes 613, 626Type of Pivot IntermediateANSI CO7321Shelf Pack 1Material Non-FerrousFasteners 8 ea Wood Screws and 8 ea Machine ScrewsLoad Capacity 600 LbsPivot Offset 3/4"Width 5"Height 4-1/4"Thickness 5/16"Don-Jo
$253.45$186.37 -
