Don-Jo KLP-110 Latch Protector...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$36.56
$31.74

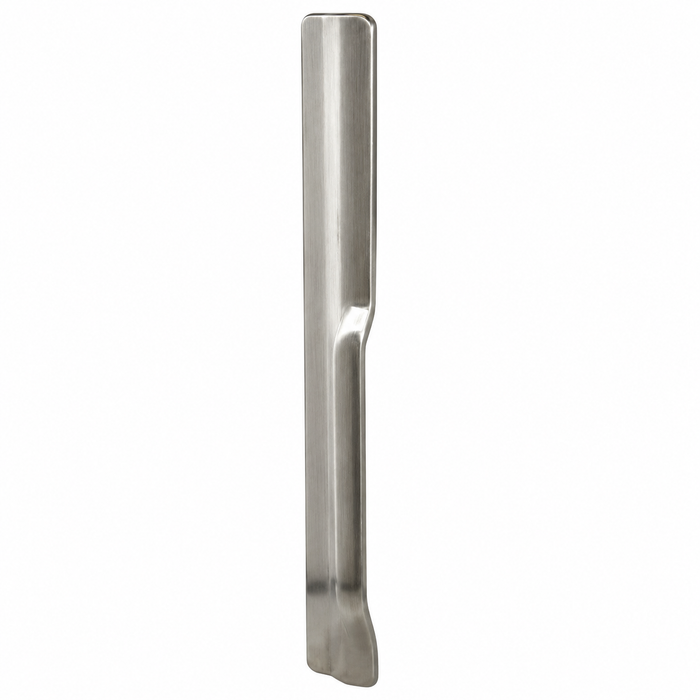

Don-Jo KLP-110 Latch Protector for Electronic Locks, 1-1/2" x 10" Stainless Steel, Out-Swing

Don-Jo KLP-110 Latch Protector for Electronic Locks, 1-1/2" x 10" Stainless Steel, Out-Swing

(No reviews yet) Write a Review

Model: KLP-110-630-RHR
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$36.56
$31.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo KLP-110 Latch Protector for Electronic Locks — 1-1/2" x 10" Stainless Steel

The Don-Jo KLP-110 is a heavy-duty commercial latch protector engineered specifically for use with electronic lock systems on out-swing doors. Measuring 1-1/2" wide by 10" long and fabricated from 12-gauge (0.104") stainless steel in a 630 finish, this latch protector delivers robust protection against forced entry and latch manipulation. Compatible with leading electronic lock brands including ILCO 1000, Alarm Lock Trilogy Locks, Mas-Hamilton Power Levers, Schlage Cobra, and Marks I-Q, the KLP-110 is a versatile solution for demanding commercial door security applications.

Key Features

  • Precise Dimensions: Measures 1-1/2" wide by 10" long, providing comprehensive latch coverage for out-swing commercial doors.
  • Heavy-Gauge Construction: Fabricated from 12-gauge (0.104") stainless steel for exceptional strength and resistance to forced entry attempts.
  • 630 Stainless Steel Finish: Satin stainless steel 630 finish offers a professional appearance while providing superior corrosion resistance for long-term durability.
  • Out-Swing Door Compatibility: Specifically designed for out-swing door applications, ensuring proper fit and maximum latch protection.
  • Broad Electronic Lock Compatibility: Works with ILCO 1000, Alarm Lock Trilogy Locks, Mas-Hamilton Power Levers, Schlage Cobra, and Marks I-Q electronic lock systems.
  • Commercial-Grade Application: Rated for commercial use, making it suitable for high-traffic and high-security environments requiring reliable latch protection.
  • Convenient Shelf Pack: Available in a shelf pack of 10 units, ideal for contractors and facility managers stocking multiple installations.

Technical Specifications

  • Subcategory: Latches & Catches
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Trim and Latch Protection
  • Product Type: Latch Protectors
  • Commercial/Residential: Commercial
  • Electronic: Yes
  • Product Model: KLP 110 LHR
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings with Electronic Access Control
  • Educational Facilities Requiring Secured Entry Points
  • Healthcare Institutions with Controlled Access Doors
  • Retail Establishments Using Electronic Lock Systems
  • Industrial and Warehouse Facilities with Out-Swing Doors
  • Government and Municipal Buildings with Security Requirements
  • Multi-Tenant Residential Properties with Electronic Entry Systems

Why Don-Jo KLP-110?

The Don-Jo KLP-110 is built to meet the rigorous demands of commercial door security, combining 12-gauge (0.104") stainless steel construction with a 630 satin finish for lasting durability and a professional appearance. Its broad compatibility with major electronic lock platforms — including ILCO 1000, Alarm Lock Trilogy, Mas-Hamilton, Schlage Cobra, and Marks I-Q — makes it a reliable, versatile choice for security professionals and facility managers who require dependable latch protection on out-swing doors.

Manufacturer Resources

DON-JO Latch Protectors

Product Specs

Subcategory:
Latches & Catches
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Trim and Latch Protection
Product Type:
Latch Protectors
Commercial/Residential:
Commercial
Electronic:
Yes
Door Swing:
Out Swing
Product Model:
KLP 110 LHR
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Department:
Door Hardware

Don-Jo KLP-110-630-RHR – Frequently Asked Questions

1) Do I need to specify handing when ordering the Don-Jo KLP-110?
Yes, handing is an order decision here. The KLP-110 comes in Left Hand Reverse (LHR) and Right Hand Reverse (RHR), both in 630 satin stainless. Stand outside the door: reverse handing is what an out-swing door has, so pick LHR or RHR based on which side the hinges are on. Ordering the wrong hand puts the plate on the wrong side of the latch.
2) Will a latch guard fit over an Alarm Lock Trilogy or Schlage Cobra electronic lock?
That is exactly what the KLP-110 is cut for. Don-Jo lists it as compatible with ILCO 1000, Alarm Lock Trilogy, Mas-Hamilton Power Levers, Schlage Cobra, and Marks I-Q. Standard latch guards often foul the larger housings and escutcheons on those electronic locksets; this one is dimensioned to clear them.
3) What is the alternative to the Don-Jo KLP-110 latch protector on an out-swing door?
The Trimco PG8000 Series covers the same job of guarding a latch on an out-swing door, so it is the usual cross-brand alternative to the KLP-110. The KLP-110 is a latch protector made of stainless steel for out-swing openings and is handed, sold Left Hand Reverse and Right Hand Reverse, so whichever way you go you match the guard to the door's hand. If the opening already carries other Trimco trim and you want the same maker across the door, the PG8000 Series is the direction to look; if you are matching an existing Don-Jo guard on adjacent doors, stay with the KLP-110.
4) What size is the Don-Jo KLP-110 latch protector and how much of the door edge does it cover?
The plate is 1-1/2 inches by 10 inches. That length runs above and below the latch to cover the gap between door and frame along the strike area, and the narrow 1-1/2 inch width keeps it off the lock housing on an electronic lockset.
5) Is the Don-Jo KLP-110 heavy enough for an exterior commercial door?
It is 12-gauge (0.104 inch) stainless steel, which is the heavy end for a latch guard and is intended for commercial openings. Stainless in a 630 satin finish also holds up outdoors better than plated steel, so it suits exterior entries at schools, healthcare, warehouses, and multi-tenant buildings.
6) What is the difference between the Don-Jo KLP-110 and a Trimco PG8000 latch guard?
Both are latch and panic guards for commercial doors. The KLP-110 is the narrow electronic-lock version, 1-1/2 by 10 inches, made to clear Trilogy, Cobra, and similar keypad housings. The Trimco PG8000 Series is a broader panic and latch guard line, so it is where to look when the opening has an exit device rather than an electronic lockset.
7) Does the KLP-110 latch protector stop someone from jimmying the latch on an out-swing door?
That is its purpose. On an out-swing door the latch bolt and the door-to-frame gap sit on the attack side; the 12-gauge stainless plate covers that gap so a pry bar or shim cannot reach the latch. It bolts through the door rather than the frame, which is why the correct hand matters.
8) Do I need the electronic-lock version, or will a standard latch guard work?
The Don-Jo KLP-110 is cut for openings running an electronic lock, which is why it is specified where the door carries a keypad or credential reader rather than a plain mechanical latch. A general-purpose guard such as the Trimco PG8000 Series is the broader panic and latch guard family and is the one to reach for on an opening without electronic trim to work around. On a door with an electronic lock body, confirm the guard clears the lock before ordering a general-purpose plate.
9) Will the 630 finish on the KLP-110 match my existing door hardware?
630 is satin stainless, the most common commercial finish, so it lines up with the 630 exit devices, levers, and pulls already on most commercial openings. It is the only finish the KLP-110 is made in, in both handings.
10) Can I buy the Don-Jo KLP-110 in bulk for a multi-door rollout?
Yes, it is packed in shelf packs of 10, which suits a facility standardizing a run of out-swing electronic-lock openings across a building or portfolio.
