Don-Jo OH-100 PC Frame Filler ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$22.06

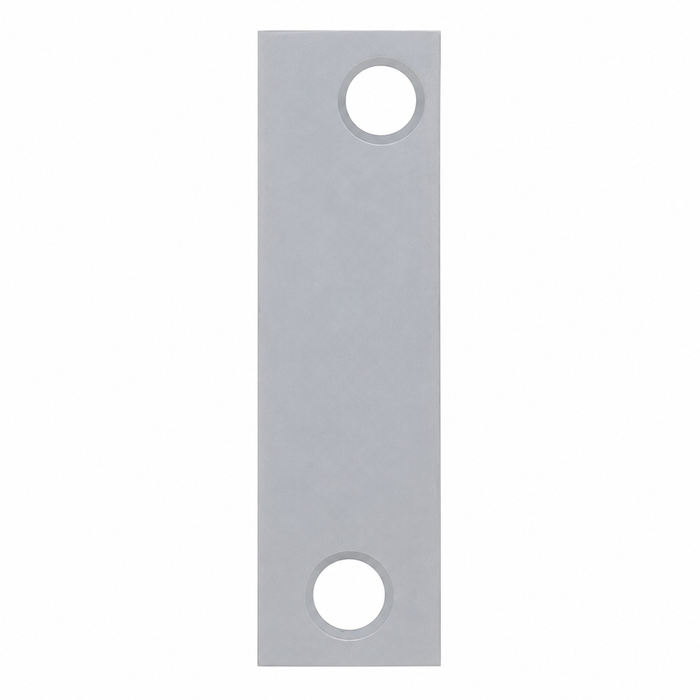

Don-Jo OH-100 PC Frame Filler for Concealed Overhead Stop in Steel with Prime Coat Finish

Don-Jo OH-100 PC Frame Filler for Concealed Overhead Stop in Steel with Prime Coat Finish

(No reviews yet) Write a Review

Model: OH-100-PC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$22.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo OH-100 Frame Filler for Concealed Overhead Stop in Steel with Prime Coat Finish

The Don-Jo OH-100 is a steel frame filler plate designed specifically for use with concealed overhead stops, providing a clean and professional finish to door frame installations. Measuring 3.5" in length and 1" in width, this compact filler plate fills the gap left in the door frame when a concealed overhead stop is installed, maintaining a neat appearance in commercial door applications. Constructed from durable steel and finished in a Prime Coat (PC), it is ready for field painting to match any frame finish, making it a versatile solution for commercial door hardware projects.

Key Features

  • Precise Dimensions: Measures 3.5" in length and 1" in width, engineered to fill the frame opening left by concealed overhead stop installations accurately.
  • Durable Steel Construction: Fabricated from steel for long-lasting performance in demanding commercial door frame applications.
  • Prime Coat Finish: Arrives with a Prime Coat (PC) finish, ready for field painting to seamlessly match any door frame color or finish specification.
  • Purpose-Built Design: Specifically designed as a frame filler for concealed overhead stops, ensuring a clean, professional appearance after hardware installation.
  • Commercial-Grade Quality: Engineered for commercial applications where a polished, finished look is required alongside functional door hardware.
  • Versatile Compatibility: Suitable for use in a wide range of commercial door frame configurations requiring concealed overhead stop filler plates.

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Subcategory: Filler Plates
  • Commercial/Residential: Commercial
  • Product Finish: Prime Coat
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Don-Jo OH-100?

Don-Jo frame filler plates are purpose-built for commercial door hardware applications, delivering reliable steel construction and a field-paintable Prime Coat finish that integrates seamlessly into any professional installation. The OH-100's precise 3.5" x 1" dimensions ensure an accurate, clean fit in door frames equipped with concealed overhead stops, making it an essential finishing component for commercial door hardware projects where appearance and durability both matter.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Frame Filler for Concealed Overhead Stop
Subcategory:
Filler Plates
Commercial/Residential:
Commercial
Product Model:
OH 100
Product Finish:
Prime Coat
Product Category:
Door Trim and Accessories
Product Substrate:
Steel
Department:
Door Hardware

Don-Jo OH-100-PC – Frequently Asked Questions

1) What does the Don-Jo OH-100 frame filler actually do on a door frame?
When a concealed overhead stop is installed, the stop's track and mounting pocket leave a cut opening in the head of the frame. The OH-100 is a steel plate that covers that opening so the head reads as a finished frame instead of an exposed cut. It is a cover plate, not part of the stop mechanism itself, and it has no effect on how the stop holds or arrests the door.
2) Will the Don-Jo OH-100 cover the opening my concealed overhead stop left in the frame?
The OH-100 plate measures 3.5 x 1 inches, so the frame cut it covers has to fall inside that footprint. Concealed overhead stop preps are not all one size, so measure the exposed opening in the head of the frame in both directions before you order. If your cut runs longer than 3.5 inches, this plate will not close it and you need a larger filler.
3) Does the OH-100 frame filler come painted, or do I have to finish it?
Prime Coat only. The plate ships primed steel, meant to be field painted to whatever the frame color is, so plan on painting it as part of the install. If you need a plated architectural finish out of the box (satin chrome, oil rubbed bronze, brass), the OH-100 is not that part, it is a paint-to-match plate.
4) I'm removing an old concealed overhead stop and not replacing it. Can I use the OH-100 to close the frame?
That's exactly the case it handles, provided the leftover opening fits within the plate's 3.5 x 1 inch footprint. The OH-100 does nothing mechanically, so it works the same whether a stop is still in the frame behind it or the pocket is now empty. Painted to the frame color, it leaves the head looking intact.
5) Is the Don-Jo OH-100 filler plate steel or aluminum?
Steel, which is why it takes primer and field paint well and stands up in high-traffic openings. It also matches the substrate of most hollow metal frames it goes on, so the painted plate and the frame age similarly rather than one chalking off ahead of the other.
6) Is the OH-100 rated for commercial openings or is it a residential part?
Commercial. It is built for hollow metal frame work in offices, schools, healthcare, retail and government buildings, the kinds of openings that get concealed overhead stops in the first place. Residential doors rarely carry a concealed overhead stop at all, so this plate seldom has a job in a house.
7) Do I need one OH-100 per door or per pair of doors?
One per stop. A concealed overhead stop is mounted in the head over a single leaf, so a single door takes one OH-100. A pair of doors with a stop on each leaf takes two. Ordering by leaf rather than by opening is the way to get the count right on a multi-door job.
