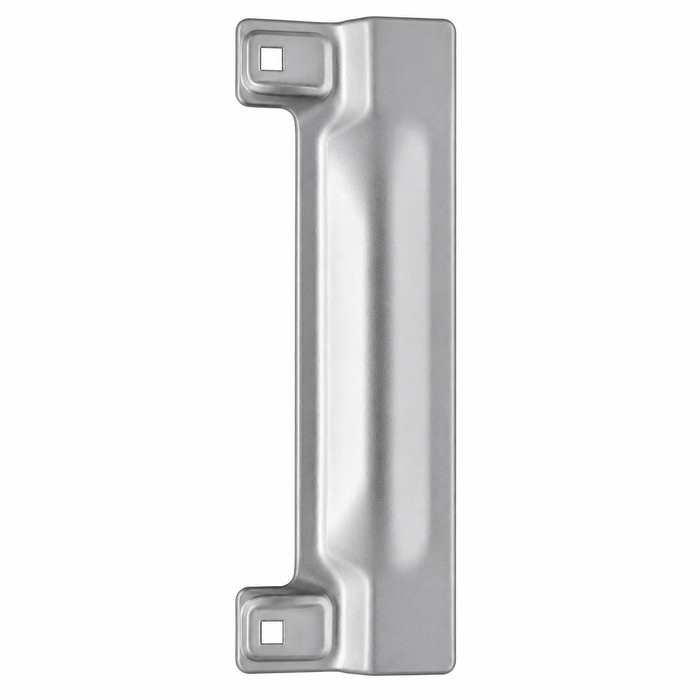

Don-Jo PULP-111 Pin Latch Protector for Outswing Doors — 3-1/2" x 11.75" Stainless Steel, 12 Gauge

Don-Jo PULP-111 Pin Latch Protector for Outswing Doors — 3-1/2" x 11.75" Stainless Steel, 12 Gauge

(No reviews yet) Write a Review

Model: PULP-111-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$36.80
$31.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo PULP-111 Pin Latch Protector for Outswing Doors — 3-1/2" x 11.75" Stainless Steel

The Don-Jo PULP-111 is a heavy-duty pin latch protector engineered specifically for outswing doors, providing reliable protection against forced entry and latch manipulation. Constructed from 12-gauge (.104) stainless steel and measuring 3-1/2" wide by 11.75" long, this latch protector is compatible with lever locks, mortise locks, and exit devices equipped with an anti-spread pin. Finished in 630 satin stainless steel, the PULP-111 delivers both durability and a professional appearance suited for demanding commercial environments.

Key Features

  • Precise Dimensions: Measures 3-1/2" wide by 11.75" long, providing broad coverage of the door latch area on outswing door applications.
  • Heavy-Gauge Construction: Fabricated from 12-gauge (.104) stainless steel for exceptional strength and resistance to forced entry attempts.
  • Stainless Steel Material: Corrosion-resistant stainless steel construction ensures long-term performance in high-traffic and demanding commercial settings.
  • Outswing Door Design: Specifically engineered for outswing door configurations, ensuring proper fit and maximum latch protection.
  • Broad Lock Compatibility: Works with lever locks, mortise locks, and exit devices featuring an anti-spread pin for versatile installation across multiple hardware types.
  • 630 Satin Stainless Finish: Factory-applied 630 finish provides a clean, professional aesthetic that complements commercial door hardware.
  • Convenient Shelf Pack: Available in a shelf pack of 10 units, ideal for contractors and facilities managers stocking multiple installations.

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Trim and Latch Protection
  • Subcategory: Latches & Catches
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo PULP-111?

Don-Jo latch protection products are built to commercial-grade standards, with the PULP-111 featuring 12-gauge (.104) stainless steel construction that resists forced entry and withstands the rigors of high-traffic door applications. Engineered for outswing doors and compatible with lever locks, mortise locks, and exit devices with anti-spread pins, the PULP-111 delivers the versatility and dependability that commercial door hardware professionals demand.

Manufacturer Resources

DON-JO Latch Protectors

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Trim and Latch Protection
Product Type:
Latch Protectors
Subcategory:
Latches & Catches
Commercial/Residential:
Commercial
Door Swing:
Out Swing
Product Model:
PULP 111
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Department:
Door Hardware

Don-Jo PULP-111-630 – Frequently Asked Questions

1) Will the Don-Jo PULP-111 latch protector work on an inswing door?
No. The PULP-111 is built for out swing doors, where the latch edge and the gap between door and frame are exposed on the outside. On an inswing door there is nothing on the pull side to shield, so a latch guard of this type does no work there. If your opening swings out toward the attack side, this is the right family of part; if it swings in, you want a wrap or astragal solution instead of an outswing latch protector.
2) Does the PULP-111 latch guard work with an exit device, or only with a lever lock?
Lever locks, mortise locks, and exit devices are all covered, with one condition on the exit device: it has to have an anti-spread pin. The PULP-111 is a pin-type guard, so the pin on the guard and the hardware have to work together. If your rim exit device has no anti-spread pin provision, a pin latch protector is the wrong choice for that opening.
3) How much of the door edge does the Don-Jo PULP-111 cover?
It covers a 3-1/2 by 11.75 inch area of the latch region. That length gives you coverage above and below the latch itself, which is what stops a pry bar getting a purchase near the bolt. Before ordering, check the stile you are mounting to: you need 3-1/2 inches of flat face beside the lock, clear of the lever rose or the exit device chassis.
4) What is the alternative to the Don-Jo PULP-111 pin latch protector on a door where a flat guard without a pin is wanted?
The Don-Jo PULP-111 is a pin latch protector for outswing doors, 3-1/2 inches wide by 11.75 inches long in 12-gauge (.104) stainless steel, and it is built to work with lever locks, mortise locks and exit devices equipped with an anti-spread pin. If the opening does not need the pin, the comparable line to look at is the Trimco PG8000 series of panic and latch guards, which covers latch guarding as a series rather than as a single pinned plate. Locksmiths choosing between them are really choosing whether the guard needs to engage an anti-spread pin at the lock, which is what defines the PULP-111.
5) Can the Don-Jo PULP-111 be used on an inswing door, or is a different latch guard needed?
The PULP-111 is specified for out swing doors, so it is not the part for an inswing opening; the plate geometry is engineered for the outswing latch condition. For an inswing door the comparable place to look is the Trimco PG8000 series of panic and latch guards, which is a series of latch guards rather than a single outswing part. A property manager standardizing across a building will usually carry the PULP-111 for the outswing exterior doors and select separately for the inswing ones.
6) Is 12-gauge stainless steel heavy enough for a latch guard on a high-traffic commercial exterior door?
12 gauge measures .104 inch thick, which is the heavy end of what gets fabricated for latch protection, and the PULP-111 is stainless rather than plated steel. That matters on an exterior opening: stainless does not rust out at the fastener holes the way a plated guard does after a few winters. Don-Jo builds this one for commercial use.
7) What finish does the Don-Jo PULP-111 come in, and will it match my existing door hardware?
One finish only: 630, satin stainless steel. That is the standard commercial finish on most lever locks, exit device trim, and push plates, so on a typical office or school opening it will read as a match to what is already on the door. If your building is standardized on 626 satin chrome, the two sit close in appearance but 630 is the stainless, not the plated brass base.
8) What is the difference between a pin latch protector and a plain latch guard?
A plain latch guard is a shield: it covers the gap so a shim or pry bar cannot reach the bolt. A pin type like the PULP-111 adds an anti-spread pin that engages the frame, so when someone tries to spread the frame away from the door to jump the latch, the pin holds the two together. On an outswing opening with a mortise lock or an exit device, that spreading attack is the common one, which is why the pin version is specified there.
9) What else does ZenSupply carry if the Don-Jo PULP-111 does not suit my opening?
Trimco's PG8000 Series panic and latch guards are the other line we stock for this job. Worth looking at when you need a guard sized or configured differently from the 3-1/2 by 11.75 inch Don-Jo, particularly on panic hardware openings where the device chassis dictates the plate.
10) Can I buy the Don-Jo PULP-111 in a multi-pack for a building rollout?
It is packed in shelf packs of 10, which suits a property manager or contractor doing a run of exterior openings across a site rather than a single door repair. Every unit in the pack is the same 630 satin stainless.
