Don-Jo RP 13509 Remodeler Plat...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$16.97

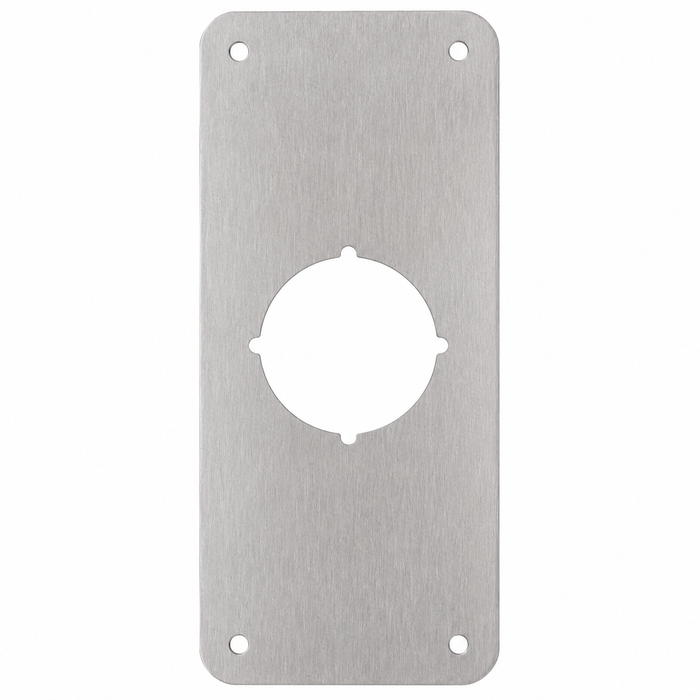

Don-Jo RP 13509 Remodeler Plate 9" x 3-1/2" for Lockset Retrofit and Renovation

Don-Jo RP 13509 Remodeler Plate 9" x 3-1/2" for Lockset Retrofit and Renovation

(5 reviews) Write a Review

Model: RP 13509-630
From the RP Collection
Selected Finish is
Selected Bolt Holes is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$16.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo RP 13509 Remodeler Plate 9" x 3-1/2" for Lockset Retrofit and Renovation

The Don-Jo RP 13509 is a remodeler plate engineered to cover oversized or misaligned door prep cutouts when upgrading or replacing locksets. Measuring 9" x 3-1/2" and formed from 0.032-gauge steel, this commercial-grade filler plate delivers a clean, finished appearance over legacy holes without requiring door replacement or extensive patching. Available in two bolt hole configurations and five finishes.

Key Features

  • Dimensions: 9" length x 3-1/2" width, providing ample coverage for oversized or misaligned door prep cutouts in retrofit applications.
  • Steel Construction: Formed from 0.032-gauge steel for a rigid plate that resists warping in commercial environments.
  • Centered Hole Configuration: Single centered hole supports standard knob or lever installations where thru-bolts are not required.
  • Centered Hole with Thru-Bolt Holes Configuration: Adds thru-bolt holes for applications requiring more secure mechanical fastening on commercial or high-traffic doors.
  • Finish Options: Available in 605 Polished Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, and 630 Satin Stainless Steel to coordinate with existing door hardware.
  • Commercial-Grade: Rated for commercial use, suitable for multi-tenant properties, offices, and high-traffic facilities.

Typical Applications

  • Commercial office buildings undergoing lockset upgrades
  • Multi-tenant residential properties during renovation
  • Educational facilities replacing legacy door hardware
  • Healthcare institutions retrofitting door locksets
  • Retail and industrial facilities updating door hardware
  • Government and municipal buildings during hardware replacement projects

Why Don-Jo RP 13509?

At 9" x 3-1/2" and 0.032-gauge steel, the RP 13509 covers misaligned or oversized door prep cutouts without door replacement. Two bolt hole configurations and five finishes give contractors and property managers the flexibility to match existing hardware on any commercial retrofit or renovation project.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Remodeler Plates
Subcategory:
Remodeler Plates
Commercial/Residential:
Commercial
Gauge:
0.032
Product Model:
RP 13509
Collection:
RP
Product Category:
Door Trim and Accessories
Department:
Door Hardware
Product Width:
3-1/2"
Products Length:
9"

Don-Jo RP 13509-630 – Frequently Asked Questions

1) Will a Don-Jo RP 13509 remodeler plate cover the oversized lockset holes left in my door?
The RP 13509 covers 9 inches in length by 3-1/2 inches in width, so it hides door prep damage that falls inside that footprint. Measure the wallowed-out or torn-up area on the door face before you order: anything wider than 3-1/2 inches across, or longer than 9 inches up and down, will still show past the edge of the plate. The new knob or lever passes through the centered hole in the plate, so the plate dresses the face while the lockset does the holding. It is formed from 0.032 steel, stiff enough to stay flat across the void rather than dishing into it.
2) Centered hole only or centered hole with thru-bolt holes: which RP 13509 remodeler plate do I order?
Two bolt hole configurations, and the lockset decides it for you. Centered Hole Only gives a single opening for the spindle and rose, which is what you want when the lock does not use through-bolts. Centered Hole with Thru-bolt Holes adds the openings for the fasteners that pull the two halves of the lock together through the door, the usual arrangement on commercial levers and high-traffic openings. If your lock has through-bolts and the plate has no holes for them, the trim will not sit flat on the door. Both configurations are offered in all five finishes, so the finish choice does not limit you here.
3) I removed the lock and nothing is going back in the door. Is the Don-Jo RP 13509 the plate that blanks off the hole?
No. Both RP 13509 versions have a centered hole for a knob or lever to pass through, so neither one gives you a solid, unbroken face. For a door where the hardware is coming out for good and the opening just needs to be closed up, you want a blank filler plate with no center cutout. The RP 13509 is for openings where a new lockset IS going back in and the existing prep is too big, chewed up, or in the wrong spot.
4) What finish do I order on a Don-Jo remodeler plate to match the lever hardware already on my other doors?
Five finishes: 605 polished brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, and 630 satin stainless steel. Those are the standard BHMA finish codes, so match the number on the hardware you are already running rather than judging by eye, since satin bronze and oil rubbed bronze read very differently once they are on the door. Most commercial lever sets in offices, schools, and multi-tenant corridors are specified in 630, so that is usually the safe call for a building-wide changeout. Every finish is available in both the centered-hole and thru-bolt versions.
5) My door is damaged at the edge around the latch. Will a remodeler plate fix that, or do I need something else?
Depends where the damage is. The RP 13509 is a flat plate that lies on the lock face of the door, so it covers the bore and the area around it and nothing more. If the door is split, kicked, or torn out at the EDGE where the latch and strike meet, this plate will not reach it. That repair needs a wrap-around plate that folds over the door edge and covers both faces at once. Use the remodeler plate when the trouble is the face prep: hole too big, hole in the wrong place, old rose bigger than the new one.
6) Is 0.032 gauge steel stout enough for a remodeler plate on a high traffic commercial door?
0.032 steel, rated for commercial use. That gauge is the working compromise on this kind of plate: thin enough that it does not shim the lock rose off the face of the door or interfere with the trim seating, heavy enough to stay rigid across the full 9 inch length instead of oil-canning under the hardware. On a heavily used opening, order the version with thru-bolt holes so the lockset's through-bolts clamp the plate against the door rather than leaving it captured by the rose alone.
7) Do Don-Jo RP 13509 remodeler plates come in bulk for a building-wide lockset changeout?
They ship in a shelf pack of 10, which suits a corridor or floor going over to the same lever all at once. The plate comes in one size, 9 by 3-1/2, so across a whole building the only two decisions repeating on the order are the finish and whether the locksets use through-bolts. Worth a walk of the doors first: openings where the old prep is bigger than 3-1/2 inches across still will not be covered, and those need a different repair.
How fast can I get the Don-Jo RP 13509-630 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Don-Jo RP 13509-630 come with a warranty?
Absolutely. The Don-Jo RP 13509-630 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Don-Jo RP 13509-630?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Don-Jo RP 13509-630 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
