DoorBird 423866768 D1102V Surface Mount IP Video Intercom with 1080p HDTV Camera and 4D Motion Sensor

DoorBird 423866768 D1102V Surface Mount IP Video Intercom with 1080p HDTV Camera and 4D Motion Sensor

(No reviews yet) Write a Review

Model: 423866768
Selected Video Intercom is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,192.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

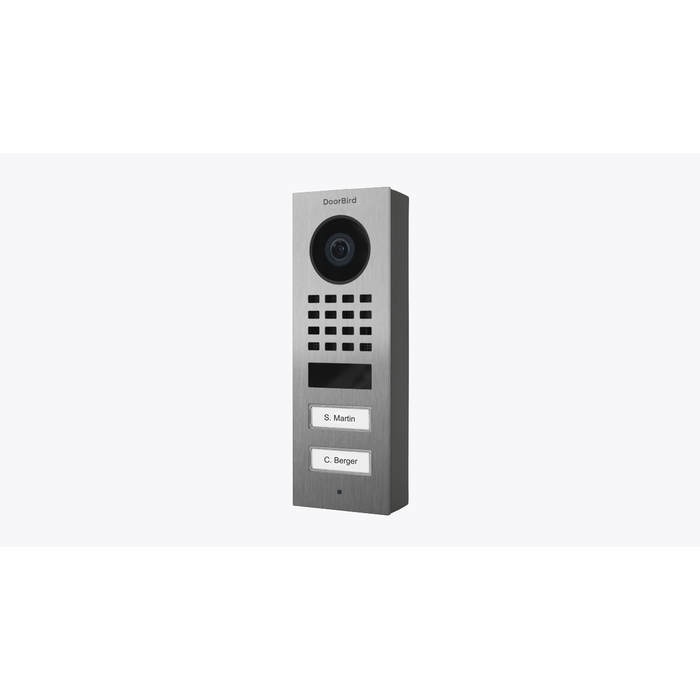

DoorBird D1102V Surface Mount IP Video Intercom with 1080p HDTV Camera and 4D Motion Sensor

The DoorBird D1102V Surface Mount IP Video Intercom is a smart entrance solution built in brushed stainless steel V2A with an included polycarbonate mounting housing (backbox). This surface-mounted video door station connects via Wi-Fi/LAN (PoE capable, 802.3af Mode-A) and delivers 2-way audio, an ultra-wide angle 180" hemispheric HDTV lens, 1080p video, night vision with infrared LEDs, and a 4D motion sensor with adjustable range from 1 - 6 m (3.3 - 19.7 ft) in 1 m (3.3 ft) steps. A freely configurable bistable switching relay allows automatic door or gate release, making it ideal for residential and light commercial entrances.

Key Features

  • Compact Surface-Mount Dimensions: 191.4 x 65 x 34.5 mm (7.54 x 2.56 x 1.36 in, H x W x D) with a 3 mm (0.12 in) brushed stainless steel V2A front panel for durable, low-profile installation.
  • Flexible Power Options: Operates on 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) for simplified wiring and installation.
  • Weatherized Construction: Rated for operating conditions from -25 to +55°C (-13 to 131°F) with 10 to 85% RH (non-condensing), suitable for exterior entrance use.
  • High-Definition Video: HDTV 1080p dynamic camera (VGA - HDTV) paired with a high-end ultra-wide-angle hemispheric lens covering 180" (D), 150" (H), and 82" (V), IR-capable and straightened for clear visitor identification.
  • Night Vision: Automatic IR-cut filter with light sensor and infrared LEDs (850 nm) for reliable low-light and nighttime monitoring.
  • 4D Motion Sensor: Detects motion at a distance of 1 - 6 m (3.3 - 19.7 ft), adjustable via the DoorBird App in 1 m (3.3 ft) increments, enabling automatic lighting or alert triggers.
  • Wi-Fi/LAN Connectivity: Connects via 2.4 GHz b/g/n Wi-Fi or LAN, with PoE support and compatibility with the DoorBird A1071 2-Wire Ethernet PoE converter for bell-wire installations.
  • Configurable Switching Relay: One freely configurable bistable switching relay supports automatic door or gate release, with temporary or permanent circuit status configurable via the App.

Certifications & Compliance

  • Weatherproof Rated

Technical Specifications

  • Front panel: 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and with bronze-finish, V4A
  • Mounting housing (backbox): Polycarbonate
  • Mounting type: Surface-mounted, flush-mounted version sold separately
  • Call button: Illuminated
  • Power supply: 15 V DC (max. 15 W) or power over Ethernet (PoE 802.3af Mode-A)
  • Weight: 530 g
  • Dimensions: 191,4 x 65 x 34,5 mm (H x W x D), 7.54 x 2.56 x 1.36 in (H x W x D)
  • Operating conditions: -25 to +55°C / -13 to 131°F humidity 10 to 85 % RH (non-condensing)

Typical Applications

  • Commercial Office Buildings
  • Medical and Professional Offices
  • Multi-Tenant Residential Properties
  • Retail Establishments
  • Educational Facilities
  • Government and Municipal Buildings

Why DoorBird D1102V?

DoorBird D1102V combines a durable brushed stainless steel V2A housing with weatherproof performance rated from -25 to +55°C, ensuring dependable operation across demanding entrance environments. With HDTV 1080p video, an ultra-wide 180" lens, and App-configurable relay and motion sensor settings, it delivers professional-grade video intercom functionality for both stand-alone use and integration into existing smart home or SIP-based systems.

Product Specs

Catergory:
Access Control
Subcategory:
Intercoms
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Product Type:
Surface Mount Video Intercom
Series:
D1102V
Power Supply:
15 V DC
WiFi:
2.4 GHz b/g/n
Call Button:
Illuminated
Camera:
HDTV 1080p, dynamic (VGA – HDTV)
Lens:
High-end ultra wide-angle hemispheric lens 180° (D), 150° (H), 82° (V), straightened, IR-capable
Night vision:
Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)
Range:
1 - 6 m (3.3 - 19.7 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
Front Panel:
3 mm (0.12 in)
Mounting Housing (backbox):
Polycarbonate
Weatherproof:
Yes
Product Dimension:
7.54 x 2.56 x 1.36 in (H x W x D)
Mounting Method:
Surface Mounted
Department:
Door Hardware

DoorBird 423866768 – Frequently Asked Questions

1) Will the DoorBird D1102V mount on the surface of a wall, or do I have to cut into it?
The D1102V is a surface-mounted door station and ships with its polycarbonate mounting housing (backbox), so it sits on the face of the wall or gate post with no pocket cut into the substrate. That matters on brick, stone, stucco, and metal gate posts where a flush cut-in is not practical. Overall body is 7.54 x 2.56 x 1.36 inches (H x W x D), so it fits on a narrow pilaster or door surround. If the job calls for the station to sit flat in the wall, the flush-mounted version is a separate part, not an option on this one.
2) Can I power the DoorBird D1102V over Ethernet, or does it need a separate transformer?
Either works. The D1102V runs on PoE 802.3af Mode-A, so a single Cat cable from a PoE switch or injector carries power and data, or you can feed it 15 V DC at up to 15 W from a local supply. PoE is the cleaner run for a new install because there is no low-voltage transformer at the door. Note the Mode-A requirement: power rides on the data pairs, so a passive or Mode-B-only injector is not the right choice here.
3) I only have old two-wire bell wire at the door. Can I still use a DoorBird IP intercom?
Yes, without pulling new cable. The D1102V is a Wi-Fi/LAN device, and DoorBird's A1071 2-Wire Ethernet PoE converter carries Ethernet and PoE over the existing bell wire pair, which is the usual path in a retrofit on an older building. The converter is a separate item from the door station. If you would rather go wireless at the door, the station also joins a 2.4 GHz b/g/n network, though a hard-wired run is the more predictable choice on an exterior wall.
4) Can the DoorBird D1102V release an electric strike or open a gate by itself?
Yes. The D1102V carries one freely configurable bistable switching relay for door or gate release, and the DoorBird App sets whether the circuit closes temporarily or holds permanently. Bistable means it latches to a state rather than pulsing only, which is what lets you hold a gate contact open for a delivery window. It is one relay, so a single opening or gate operator per station, and the electric strike, maglock, or gate operator itself is not included.
5) Does the D1102V with 2 call buttons work for a two-tenant building?
That is exactly the configuration. The D1102V is offered as 2 units with 2 call buttons, so each of two tenants or two suites gets a dedicated illuminated button and its own call routing. For a duplex, a two-suite professional office, or a house with a separate rental unit, one station covers both. The buttons are illuminated, so they read at night without a separate courtesy light.
6) What else do I need to order to finish a DoorBird D1102V install?
The station and its polycarbonate backbox come together, so the mounting housing is handled. What is not in the box: the power source, either a PoE 802.3af Mode-A switch or injector or a 15 V DC supply rated for 15 W; the electric strike, maglock, or gate operator the switching relay drives, plus its own power; and the A1071 2-Wire Ethernet PoE converter if you are reusing existing bell wire instead of pulling Cat cable. Network side, it needs either a LAN drop or 2.4 GHz Wi-Fi coverage at the door.
7) Will a DoorBird D1102V hold up outdoors in a cold climate?
It is built for exterior use. The front panel is 3 mm brushed stainless steel V2A, the housing is weatherproof rated, and the operating range runs -25 to +55 C (-13 to 131 F) at 10 to 85 percent RH non-condensing. That covers northern winters and hot direct-sun west elevations. Anything in the data on how long it lasts beyond that is down to the install, so mount it under a soffit or overhang where you can.
8) How much of the entrance will the DoorBird D1102V camera actually see?
Wide enough to catch a package on the mat and a person standing off to one side. The hemispheric lens covers 180 degrees diagonal, 150 degrees horizontal, and 82 degrees vertical, and the image is straightened so faces are not bowed at the frame edges. Video is HDTV 1080p, dynamic from VGA up to HDTV, which is enough resolution to identify a visitor rather than just detect one. Placed at one side of a recessed entry, that 150 degree horizontal spread still covers the full door width.
9) Can I stop the DoorBird motion sensor from alerting me every time someone walks past on the sidewalk?
Yes, by shortening the range. The 4D motion sensor detects from 1 to 6 m (3.3 to 19.7 ft) and is adjustable in 1 m (3.3 ft) steps from the DoorBird App, so a station facing a public walkway can be dialled back to only pick up someone who has actually stepped into the entry. Detection distance does depend on the environment. That adjustability is the difference between a usable alert stream and one a property manager mutes in a week.
10) Do I have to use the DoorBird app, or will the D1102V work with a SIP phone system?
Both paths are supported. The D1102V runs stand-alone through the DoorBird App, and it also integrates into existing smart home or SIP-based systems, which is what makes it workable in an office where calls should land on the desk phones rather than on staff cell phones. Relay behaviour and motion range are configured in the App either way.
11) Is the DoorBird D1102V the right intercom for a large apartment building with 20 units?
No, not on its own. The D1102V is configured for 2 units with 2 call buttons, which suits a duplex, a two-suite office, or a single-tenant entrance with a second buzzer. A 20 unit property needs a station with a button count or a directory to match, so look at a DoorBird model built for that tenant count rather than ganging these. Where the D1102V does fit a larger property is a secondary opening, a service door, a garage entrance, or a leasing office door off the main lobby panel.
12) Do I need a separate floodlight for the DoorBird D1102V to see at night?
No added light is required. The station has infrared LEDs at 850 nm plus a light sensor and an automatic IR-cut filter, so it switches itself to night mode and back. That is the setup for a dark side entrance or a service door with no fixture nearby. If you do want the porch light to come up when someone approaches, the 4D motion sensor can trigger that instead of the camera relying on it.
13) What finish does the DoorBird D1102V front panel come in?
The D1102V ships with a brushed stainless steel V2A front panel, 3 mm thick. Brushed stainless is the safe match against aluminium storefront, glass front entries, and satin chrome door hardware. DoorBird does build this panel design in V4A stainless and in a bronze finish V4A for coastal salt exposure or a darker entry, so if the elevation is on the water or the trim package is dark bronze, ask for those rather than the V2A.
14) Which DoorBird part number is the 2-button surface mount station with the 4D motion sensor?
DoorBird D1102V, item 423866768, is the surface mount 2-button IP video door station with the 1080p HDTV camera and the 4D motion sensor. Series designation is D1102V; the V suffix is the video station. When quoting it, the pairing to confirm is surface mount with the 2 unit, 2 call button configuration, since the flush mount body is a separate part number.
