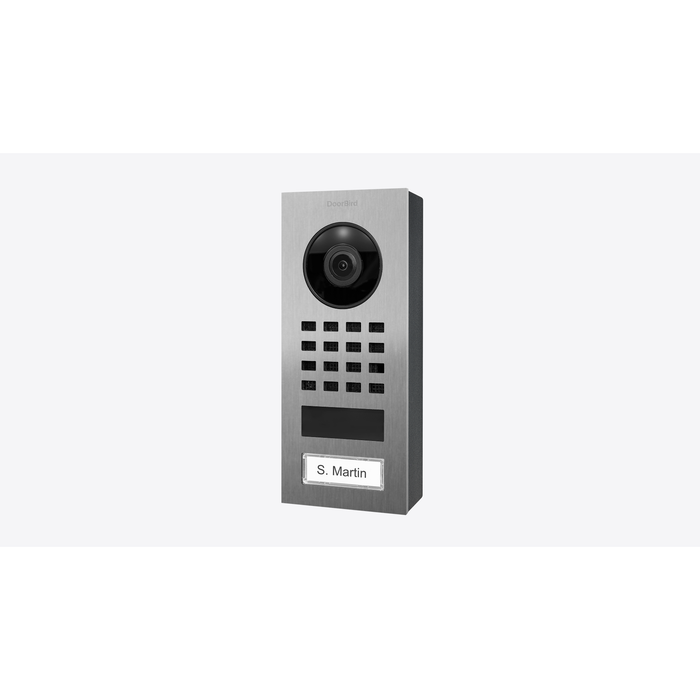

DoorBird DV1101V Surface Mount IP Video Intercom with 1080p HDTV Camera and Night Vision

The DoorBird DV1101V is a surface mount IP video door station built from brushed stainless steel V2A, with mounting housing included and connection via Wi-Fi/LAN (PoE capable) for reliable, real-time communication. Equipped with a 1080p HDTV camera, ultra-wide angle hemispheric lens (180" D, 150" H, 82" V), night vision with infrared LEDs, and a 4D motion sensor with range up to 6 m (19.7 ft), this unit connects your entrance directly to your smartphone, tablet, or SIP-compatible device from anywhere. It includes 2-way audio, one freely configurable bistable switching relay, and an illuminated call button for clear identification day or night.

Key Features

  • Compact Surface Mount Dimensions: 151.9 x 65 x 32 mm (H x W x D), 5.98 x 2.56 x 1.26 in, with a 3 mm (0.12 in) front panel for a low-profile installation.
  • Flexible Power Options: Operates on 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) for simplified wiring.
  • Durable Stainless Steel Construction: Brushed stainless steel V2A housing with polycarbonate mounting backbox rated for -25 to +55°C / -13 to 131°F and 10 to 85% RH non-condensing operating conditions.
  • HDTV 1080p Camera with Ultra-Wide Lens: High-end ultra wide-angle hemispheric lens delivers dynamic VGA to HDTV video, IR-capable for continuous clarity.
  • Advanced Night Vision: Automatic IR-cut filter, light sensor, and infrared LEDs (850 nm) provide clear visibility after dark.
  • 4D Motion Sensor: Detects motion up to 6 m (19.7 ft), adjustable via the DoorBird App in 1 m (3.3 ft) increments, enabling automatic lamp activation between 9 pm and 6 am.
  • Configurable Relay Control: One freely configurable bistable switching relay allows automatic door release scheduling (e.g., Mon-Fri 9 am to 4 pm on call button press) and automatic gate opening on return.
  • Compatible Accessories: Connects via network cable or bell wire using the DoorBird A1071 2-Wire Ethernet PoE converter; flush-mounted housing version sold separately.

Technical Specifications

  • Front panel: 3 mm (0.12 in)
  • Mounting housing (backbox): Polycarbonate
  • Mounting type: Surface-mounted, flush-mounted version sold separately
  • Call button: Illuminated
  • Power supply: 15 V DC (max. 15 W) or power over Ethernet (PoE 802.3af Mode-A)
  • Weight: 405 g
  • Dimensions: 151,9 x 65 x 32 mm (H x W x D), 5.98 x 2.56 x 1.26 in (H x W x D)
  • Operating conditions: -25 to +55°C / -13 to 131°F humidity 10 to 85 % RH (non-condensing)

Typical Applications

  • Commercial Office Buildings
  • Medical and Healthcare Offices
  • Multi-Tenant Residential Properties
  • Retail Establishments
  • Educational Facilities
  • Government and Municipal Buildings

Why DoorBird DV1101V?

DoorBird DV1101V combines a durable brushed stainless steel V2A housing with weather-resistant operating tolerances of -25 to +55°C, ensuring dependable performance in demanding entrance environments. Its 1080p HDTV camera, precision 4D motion sensor, and PoE-capable connectivity give facility managers a professional-grade video intercom solution that integrates with existing smart home platforms, SIP systems, and classic door opener installations alike.

Product Specs

Catergory:
Access Control
Subcategory:
Intercoms
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Product Type:
Surface Mount Video Intercom
Series:
DV1101V
Power Supply:
15 V DC
WiFi:
2.4 GHz b/g/n
Call Button:
Illuminated
Camera:
HDTV 1080p, dynamic (VGA – HDTV)
Lens:
High-end ultra wide-angle hemispheric lens 180° (D), 150° (H), 82° (V), straightened, IR-capable
Night vision:
Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)
Range:
1 - 6 m (3.3 - 19.7 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
Front Panel:
3 mm (0.12 in)
Mounting Housing (backbox):
Polycarbonate
Product Dimension:
5.98 x 2.56 x 1.26 in (H x W x D)
Mounting Method:
Surface Mounted
Department:
Door Hardware

DoorBird 423866744 – Frequently Asked Questions

1) Will the DoorBird DV1101V work over PoE, or do I need a separate power supply at the door?
Both options are on the table. The DV1101V runs on 15 V DC (max 15 W) or on Power over Ethernet, 802.3af Mode-A, so a single Cat cable from a PoE switch can carry power and network together. If the run is already bell wire rather than network cable, DoorBird's A1071 2-Wire Ethernet PoE converter puts the station on the existing pair instead of pulling new cable. That is usually the deciding detail on a retrofit in an occupied building.
2) Do I need to cut into the wall to install a DoorBird DV1101V, or does it mount on the surface?
It is a surface mount station. The DV1101V ships with its polycarbonate mounting housing (backbox) and fastens to the face of the wall or post, so no wall cut-in is needed. The unit measures 5.98 x 2.56 x 1.26 inches (H x W x D) with a 3 mm (0.12 in) front panel, which keeps the projection off the wall small. If the job calls for a flush installation sitting in the wall, that is a separate flush-mounted version, not this one.
3) Can a DoorBird DV1101V release the door strike, or does it only do video and audio?
It can drive a door release. The DV1101V carries one freely configurable bistable switching relay, which is what you wire to a strike or gate operator. Because the relay is schedulable in the DoorBird app, you can set it to release automatically on a call button press during set hours (for example Mon to Fri, 9 am to 4 pm) and hold it locked outside those hours. One relay means one controlled point, so a job needing both a pedestrian door and a separate gate needs a second control path.
4) Is the DV1101V a single-tenant intercom or can it serve a multi-tenant building?
One unit, one call button. The DV1101V is configured as a single call station, so it suits one entrance serving one tenant, office, or household. For a multi-tenant vestibule where each unit needs its own button, this is the wrong station and you want a multi-button DoorBird door station instead. Where a property manager can use it in multi-family is at a service entrance, gate, or back-of-house door that rings a single point.
5) Will a DoorBird DV1101V survive outdoors through a cold winter?
Rated for -25 to +55 C (-13 to 131 F) and 10 to 85 percent RH non-condensing. The front is brushed stainless steel V2A with a polycarbonate backbox behind it, which is the combination that holds up at an exposed entrance. The band covers most of the continental US, but sustained deep-cold sites below -13 F are outside the stated operating range.
6) How much of the doorway will the DoorBird DV1101V camera actually see?
The camera is HDTV 1080p with dynamic scaling from VGA up to HDTV, behind a hemispheric ultra wide-angle lens covering 180 degrees diagonal, 150 degrees horizontal and 82 degrees vertical, straightened. That horizontal spread means a visitor standing off to the side of the station is still in frame, and a package left on the ground near the door stays in view rather than falling below the shot. The lens is IR-capable, so the same field of view holds after dark.
7) Does the DoorBird DV1101V need a porch light to get a usable picture at night?
No added lighting is required. Night vision uses a light sensor, an automatic IR-cut filter, and infrared LEDs at 850 nm, so the station switches itself over as ambient light drops. Separately, the 4D motion sensor can trigger a lamp automatically between 9 pm and 6 am if you want visible light at the entrance as well as an IR image.
8) How far out does the DoorBird DV1101V motion sensor pick people up, and can I stop it triggering on the sidewalk?
Detection runs from 1 to 6 m (3.3 to 19.7 ft) and is adjustable in the DoorBird app in 1 m (3.3 ft) steps. That step adjustment is the answer to nuisance alerts: on a station facing a public walk or a parking aisle, dial the range back so the field stops at your own approach instead of the passing traffic. Actual reach varies with the environment.
9) Can I run the DoorBird DV1101V on Wi-Fi instead of pulling a network cable?
Wi-Fi is supported on 2.4 GHz b/g/n, so the station can join an existing wireless network. Worth weighing on a commercial job: on Wi-Fi you still have to bring 15 V DC power to the door, while a wired LAN run lets PoE 802.3af Mode-A carry power and data on the one cable. Wi-Fi is the shortcut where power already exists at the entrance and cable pulling does not.
10) Will the DoorBird DV1101V tie into a SIP phone system, or is it phone-app only?
Both. The station talks to smartphones and tablets through the DoorBird app from anywhere, and it also connects to SIP-compatible devices, which is how it lands on an office phone system or a desk handset at a front desk. It carries 2-way audio, so the call works in either direction. For facilities standardizing on SIP, that keeps the entrance on the same platform as the rest of the building's calls.
11) Can a visitor find the call button on a DoorBird DV1101V after dark?
The call button is illuminated, so it stays identifiable at night without a separate light at the entrance. That matters more than it sounds on commercial and medical entrances, where an unlit button at a back door generates phone calls instead of door presses.
12) What is the DoorBird DV1101V made of, and will it hold up on a high-traffic commercial entrance?
The front panel is brushed stainless steel V2A at 3 mm (0.12 in) thick, with a polycarbonate mounting housing behind it. Stainless at the face is what resists the weather and the handling an exposed public entrance gets, and the brushed finish hides fingerprints better than a polished one on a door people touch all day.
13) What do I get in the box with a DoorBird 423866744 DV1101V?
The DV1101V comes with its mounting housing included, which is the surface backbox the station sits in, so the enclosure is not a separate line item. What you add depends on the run: a PoE switch or injector, or a 15 V DC supply, plus the A1071 2-Wire Ethernet PoE converter if you are reusing existing bell wire rather than pulling network cable. A door strike or gate operator for the relay to control is also separate.
