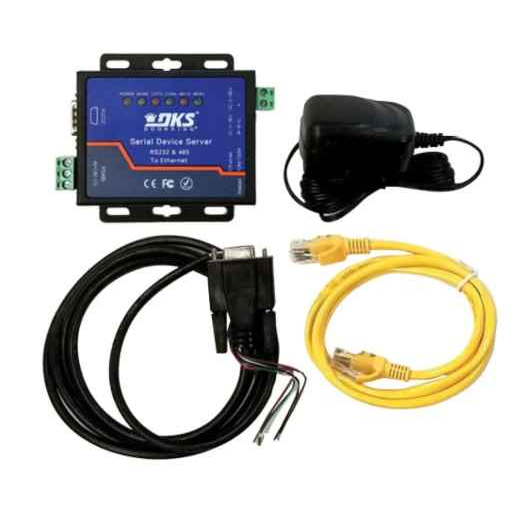

Doorking Inc TCP-IP Adapter, Plug and Play
TCP/IP Client converter kit, plug and play, for 1830 series telephone entry and access control system
- Plug & Play voice and data (programming) for easier installation
- Voice or data only options available
- Compatible with DKS 1830 and Access Plus series telephone entry systems only
- Flat rate monthly subscription service without long term contracts and includes all taxes, fees and charges
- Requires TCP/IP adapter 1830-186 for programming (data), and VoIP adapter 1830-568 for voice service
- Plug & Play for LAN and WAN connections
- Retrofit to your existing DKS controller
Manufacturer Resources
Product Specs
- Subcategory:
- Wire & Power Supplies
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Wire & Power Supplies
- Commercial/Residential:
- Commercial
- Product Model:
- 1830
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Doorking 1830-186 – Frequently Asked Questions
1) Will the DoorKing TCP/IP adapter work with any DKS telephone entry system?
No. The plug and play TCP/IP client converter kit works with DKS 1830 series and Access Plus series telephone entry and access control systems only. If your board is any other DoorKing family, this kit is not the part. Check the model on the controller before ordering.
2) Can I add IP connectivity to a DoorKing 1830 already installed at the gate, or do I need a new entry panel?
The converter kit retrofits to an existing DKS controller, so the 1830 stays in place. It is a plug and play conversion for LAN and WAN connections, which is what makes it a swap for a property manager who does not want to replace the entry system to get off a POTS line.
3) Do I need one adapter or two to get both voice and programming over IP on a DKS 1830?
Two, if you want both. Programming (data) runs through the TCP/IP adapter 1830-186, and voice service runs through the VoIP adapter 1830-568. Voice or data only options are available, so a property that only needs remote programming can order the data adapter alone and leave the phone line for voice.
4) Does the DoorKing IP converter kit require an ongoing service plan?
The service behind it is a flat rate monthly subscription with no long term contract, and taxes, fees and charges are included in that rate. For a property manager comparing this to a dedicated phone line per entry, that is the number to run against your current carrier bill.
5) Is the DoorKing plug and play IP adapter a hardwired network device or does it work over WiFi?
It is a wired network device. The kit is plug and play for LAN and WAN connections, so plan on running Ethernet to the entry panel location or having a switch port available there. That cable run is usually the real work on this install, not the adapter itself.
6) Is the DoorKing 1830-186 TCP/IP adapter rated for commercial gate and multi-family use?
It is a commercial grade access control accessory, which is the category most of these go into: multi-family entries, gated communities, and commercial parking. The 1830 series entry system it converts is a commercial telephone entry and access control platform.
