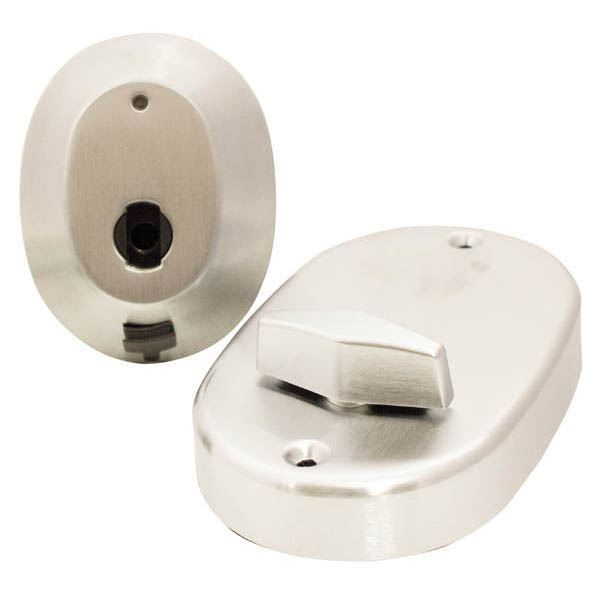

Dormakaba RD01 InSync Battery-Operated Deadbolt Lock
The InSync RD01 is a battery-operated deadbolt lock designed to mount above a passage lever on a door. It works with Windows®-based SAM RF software, an electronic key-encoding device, a handheld utility device, and electronic RFID keys to deliver a comprehensive access control system — eliminating key cutting, lock replacement, and the security risks of unauthorized mechanical keys. Multiple levels of access control provide the highest level of security for multihousing and commercial applications.
SAM RF System Components (Sold Separately)
The RD01 deadbolt is the door-mounted unit only. The following components are required to operate the full SAM RF access control system and are available separately:
- Dormakaba R20470 SAM RF Emergency Lock Power Supply (ELPS)
- Dormakaba R21220 SAM RF Encoder with Extra Memory (power cord not included)
- Dormakaba R21190 SAM RF Utility Device with Extra Memory (battery not included)
Features
- Compatible door thickness: 1‑3/8" to 2"
- Powered by four (4) standard AA alkaline batteries; designed for extended battery life
- Lock dimensions: 3½" H × 2‑51/64" W × 1¼" D
- Robust sectional trim with fully enforced 1" saw-proof deadbolt
- Ideal for apartment homes, student housing, assisted-living facilities, and military family housing
- Suitable for new construction and retrofit projects
- Access control for unit, suite, and common areas
- Inhibit key cancels a specific key — ideal when a key is lost or stolen
- Emergency keys open any lock on the property, including unit, suite, and common access area locks
- Limited-use keys for vendors, staff, and prospective residents requiring regulated access
- Low-power signal indicated upon key insertion
- Weatherized for environmental durability
Product Resources
Brochures, installation manuals, instruction sheets, reference handbooks, and technical drawings are available on the Dormakaba InSync product page.
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- InSync Series
- Configuration:
- Unit
- Product Subgroup:
- Bored Locksets
- Product Type:
- Deadbolts
- Subcategory:
- Cylindrical Latch and Deadbolt Lock
- Lock Type:
- Cylindrical
- Commercial/Residential:
- Commercial
- Power:
- Battery Operated
- Electronic:
- Yes
- Battery Operated:
- Yes
- Product Attribute:
- Electronic Locks
- Product Model:
- RD01
- Product Category:
- Electronic Locks
- Department:
- Door Hardware
Dormakaba RD01-26D – Frequently Asked Questions
1) What is the Dormakaba RD01 InSync lock designed for?
The RD01 InSync is a battery-operated electronic deadbolt for commercial interior applications. It uses RFID technology for keyless entry and integrates with access control systems.
2) What door types and thicknesses are compatible?
Compatible with standard commercial doors from 1-3/8" to 2-1/4" thick. Requires 2-1/8" bore hole and standard ANSI strike preparation. Verify door weight capacity with manufacturer specifications.
3) Is this lock handed or universal?
The RD01 InSync is field-reversible for left or right-hand doors. Handing can be changed during installation by repositioning internal components according to installation instructions.
4) What finish options are available?
Available in standard commercial finishes including satin chrome, dark bronze, and bright brass. Contact us to verify specific finish availability for your project requirements.
5) What is the security grade and power requirements?
ANSI Grade 2 rated for commercial use. Powered by 4 AA batteries with typical 12-month battery life under normal usage. Low battery indicator alerts when replacement is needed.
6) How many access codes or users can be programmed?
Supports up to 500 RFID credentials including cards and fobs. Programming capacity varies by system configuration. Check with access control system requirements for specific user limits.
7) What components and accessories are included?
Includes lock body, interior and exterior escutcheons, mounting hardware, and installation template. RFID cards or fobs sold separately. Programming software may require separate licensing.
8) What are the basic installation requirements?
Requires standard 2-1/8" cross bore and 1" edge bore. No hardwiring needed for basic operation. Use manufacturer template for precise hole placement and strike alignment.
9) How do you maintain and adjust the electronic components?
Replace batteries annually or when low battery warning appears. Keep RFID reader clean and dry. Periodically test emergency override function and verify door alignment for proper operation.
10) What are comparable Dormakaba electronic lock models?
Related models include other InSync series locks and RT-Plus wireless locks. Compare features like connectivity options, credential types, and grade ratings for your specific application needs.
11) What environmental conditions affect performance?
Designed for interior commercial use in standard climate conditions. Avoid exposure to moisture, extreme temperatures, or corrosive environments. Verify IP rating for specific environmental requirements.
12) What are the key dimensions and clearances needed?
Standard backset is 2-3/4". Check manufacturer specifications for exact exterior and interior escutcheon dimensions. Ensure adequate clearance for door swing and electronic components.
