Dormakaba InSync Battery Opera...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$609.37
$504.72
Dormakaba Dormakaba InSync Battery Operated Interconnected Cylindrical Latch and Deadbolt Lock, Unit, Electronic RFID Keys, Troy Lever, Left Hand, Satin Chrome RI6200S-26D

Dormakaba InSync Battery Operated Interconnected Cylindrical Latch and Deadbolt Lock, Unit, Electronic RFID Keys, Troy Lever, Left Hand, Satin Chrome

(No reviews yet) Write a Review

Model: RI6200S-26D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$609.37
$504.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

InSync Lock Series

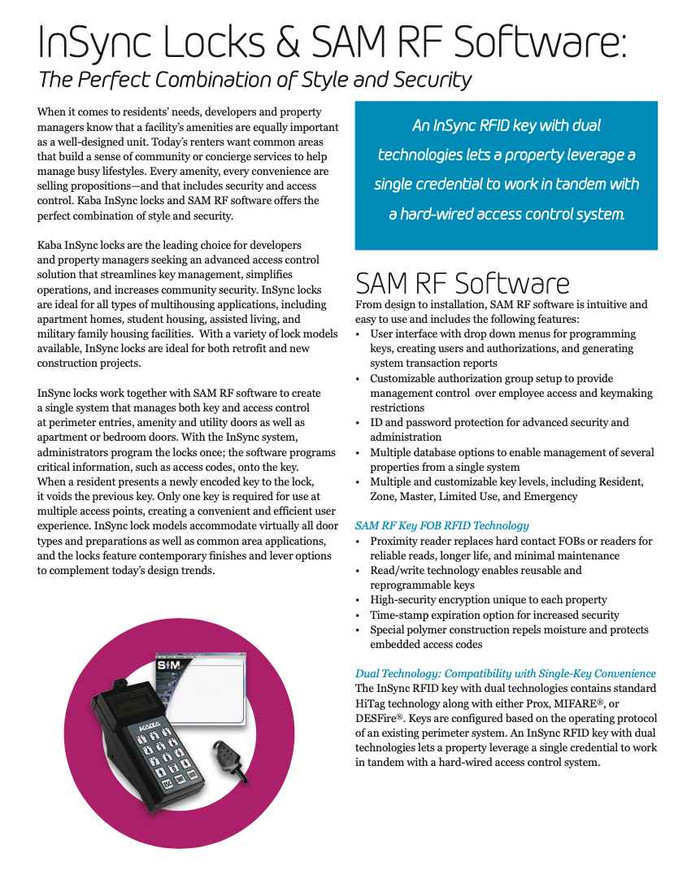

InSync locks work together with SAM RF software to create a single system that manages both key and access control at perimeter entries, amenity and utility doors as well as apartment or bedroom doors. With the InSync system, administrators only need to program the locks once; the software continually manages critical informational changes such as access privileges and move ins/outs. This information is delivered automatically to each lock via the InSync key once the “New” version of the key is created and used in the locks. Only one key is required for use at multiple access points, creating a convenient and efficient “No Touring” user experience. InSync lock models accommodate virtually all door types and preparations, and common area/amenity applications. The locks feature contemporary finishes and lever options to complement today’s design trends.

  • Unit — Designed for apartment entry, offices, utility rooms, and more
  • Suite — Ideal for multiple leases per apartment, such as student housing
  • Common — Used for perimeter entries and amenity spaces
  • Entry — Used to make an InSync Unit lock behave like a hotel lock; the lock will always automatically re-lock behind a resident
  • Suite Egress — Used to make a Suite lock act like a Unit lock where the key or the thumbturn is used to manually re-lock the lock


Product details

The InSync Access Control System has different configurations to accommodate various applications, from unit and suite to elevator and pool access.



InSync I and D Unit Locks

The I and D unit configurations provide operational functionality for individual entry doors. Rotation of the inside thumbturn or the inserted RFID key extends or retracts the 1" dead bolt locking or unlocking the door. In the locked position, only duplicate resident and authorized service keys can access the unit. Unit locks are programmed with one resident code (change key). Each key made with one resident code can have up to 64 unique identity codes.



InSync M and L Unit Locks

The M and L unit configurations provide true residential entry lock functionality. Each time the inside lever is rotated, the lock goes into a “toggled” condition which eliminates the possibility of lock outs. When the key is inserted into the lock after egress, the lock is placed back into a locked position. An audit trail is created and stored within the lock for each occurrence. The inside thumbturn, when turned, will toggle the lock between unlocked and locked. Multiple residents can have access to the same unit if needed. All residents are completely unique in the system and are tracked individually.



InSync I, D, M and L Suite Locks

The suite configuration allows ingress and egress to multiple residents who need to access individual unit doors located behind the suite door. A resident uses the InSync I and D suite locks just like a traditional door lock.  The resident throws the dead bolt using the interior thumbturn or rotating the key in the lock after ingress or egress to relock the door. M and L suite locks have no interior thumbturn and always remain in a locked position after ingress or egress. Suite locks can recognize up to 20 unique resident codes.



InSync RAC Common Area Access

InSync RAC and CP products are available as either standalone battery- operated door locks or hard-wired AC/DC electrically powered devices designed to work in conjunction with other electronic latching hardware.
RAC works in conjunction with remote access points including elevators, outdoor pools, roll-up garage doors, parking arms, electric strikes, magnets, and telephone entry systems.



Technical Data

  • 1" deadbolt (D, I)
  • 2⅜" (60mm) or 2¾" (70mm) backset (D, I)
  • Interior thumbturn (D, I)
  • Standard deadbolt door prep (D, I)
  • Door thickness: 1⅜" – 2" (D, I)
  • Interconnected single motion egress (I)
    • When the inside lever is rotated, both latch and deadbolt are simultaneously retracted
  • ADA-compliant levers and thumbturns (I)
  • UL certified for use on fire-rated doors: 20-minute rating (D, I)
  • Environmental: Indoor/Outdoor approved (D, I) -31 °F to 151 °F (-35 °C to 66 °C)
  • Uses 4 AA batteries (D, I)



InSync M Electronic Lock with ASM Mortise and InSync L Electronic Lock with Tubular Deadlatch

  • ½" tubular deadlatch (L)
  • 2⅜" (60mm) or 2¾" (70mm) backset (L)
  • UL certified for use on fire-rated doors: 20-minute rating (L)
  • Interior thumbturn (Unit models only) (L, M)
  • Complete lever set/single motion egress (L, M)
  • 1" automatic deadbolt (ADB) (M)
  • 2¾" (70mm) backset (M)
  • UL certified for use on fire doors: 20-minute rating or 3-hour rating (M)
  • 8" mortise lock (M)
  • ¾" dead-locking latch (M)
  • ADA-compliant levers and thumbturns (L, M)
  • Environmental: Indoor/Outdoor approved (L, M)
    • -31 °F to 151 °F (-35 °C to 66 °C)
  • Uses 4 AA batteries (L, M)



InSync C Series - RAC Remote Access Controller, CP Electronic Lock for Exit devices, CL Electronic lock with Tubular Deadlatch and CM Electronic lock with ASM Mortise

  • Remote control unit (RCU) switch works with electrified locking devices (RAC)
  • Controls electronic strikes and magnetic latches up to 24 volts AC/DC (RAC)
  • Functions as elevator control unit (ECU) with a single relay (RAC)
  • Available in flush or surface mount (RAC)
  • Works in conjunction with rim and vertical exit hardware for common area doors (CP)
  • Interfaces with industry-leading exit devices (CP)
  • Compatible with a variety of rim and surface mount vertical rod panic hardware (CP)
  • ½" tubular dead latch (CL)
  • Single motion egress with common area electronics (CL, CM)
  • ¾" anti-pick latch (CM)
  • Available with UL 20-minute or 3-hour rating (CM)
  • Environmental: Indoor/Outdoor approved (RAC, CP)
    • -31 °F to 151 °F (-35 °C to 66 °C)



Finishes for all models: (Limited availability)

  • Satin Chrome
  • Satin Brass
  • Bright Chrome
  • Bright Brass
  • *Dark Mahogany
  • *Satin Nickel



Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
InSync Series
Configuration:
Unit - Designed for apartment entry, offices, utility rooms, and more
Product Subgroup:
Bored Locksets
Product Type:
Interconnected Locks
Subcategory:
Mortise Lock
Lock Type:
Cylindrical
Commercial/Residential:
Commercial
Power:
Battery Operated
Electronic:
Yes
Battery Operated:
Yes
Handle Type:
Lever
Product Attribute:
Electronic Locks
Product Model:
RM1100C
Product Category:
Electronic Locks
Department:
Door Hardware

Dormakaba RI6200S-26D – Frequently Asked Questions

1) Will the Dormakaba InSync interconnected lock fit a 1-3/8 inch door, and what door thicknesses does it cover?
Door thickness range on the InSync I interconnected lock set is 1-3/8 inches to 2 inches, so a 1-3/8 inch older interior door and a standard 1-3/4 inch commercial door are both inside the range. That 2 inch top end also covers thicker apartment entry doors that a lot of residential-grade interconnected sets will not reach.
2) How does an interconnected lock like the Dormakaba InSync let a resident get out in one motion?
Rotating the inside lever retracts the latch and the 1 inch deadbolt at the same time, so a resident leaves in a single motion without touching the thumbturn. That is the whole point of an interconnected set on an apartment entry: the deadbolt stays usable without creating a life-safety problem on egress. The levers and thumbturns are ADA-compliant.
3) What is the difference between the InSync Unit configuration and the Suite or Common configurations?
Unit is the apartment entry, office, and utility room configuration, and it is programmed with one resident code (change key), where each key made with that code can carry up to 64 unique identity codes. Suite is for multiple leases behind one door, such as student housing, and recognizes up to 20 unique resident codes. Common is for perimeter entries and amenity spaces. There is also an Entry setup that makes a Unit lock re-lock automatically behind a resident like a hotel lock. Pick the configuration by what sits behind the door, because it is programmed into the lock.
4) Do I have to order handing on the Dormakaba InSync interconnected lever lock?
Handing matters here. The RI6200S with the Troy lever is a left hand lock, so stand outside the door: if the hinges are on your left and it swings away from you, left hand is correct. Order the right hand version for the opposite opening. The finish on this one is 626 satin chrome; across the InSync line the finish choices are satin chrome, satin brass, bright chrome, bright brass, dark mahogany, and satin nickel.
5) Which interconnected lock should I use on a 3-hour fire rated apartment entry door instead of the InSync RI6200S?
The Sure-Loc IN301-CDR is a Grade 2 interconnect lock with a Schlage SC1 keyway and a 3-hour fire rating, so it suits an opening where the door assembly requires a 3-hour rated interconnected set. The InSync RI6200S is the cylindrical interconnected latch-and-deadbolt unit configuration; within the InSync range the 3-hour fire rating belongs to the M mortise model rather than the cylindrical interconnect. The SC1 keyway on the Sure-Loc also lets it drop into a building already keyed to SC1.
6) What mechanical interconnected lock can replace the Dormakaba InSync RI6200S on an apartment entry door if the building does not want electronic credentials?
The Schlage CS210-B500 is a Grade 2 entrance interconnected lockset in the CS210 Series, and the Deltana CL300ILC is a Grade 2 interconnected lock with an entrance function and a Clarendon lever. Both are keyed mechanical interconnected sets, so they give the same single-motion lever-and-deadbolt arrangement on a unit entry door without the RFID key credential and battery power that the InSync RI6200S uses. Programming, key issuance and move-in changes stay a physical key process rather than a software one.
7) If a property is keyed to Schlage SC1 and wants to keep one keyway across the building, which interconnected lock fits?
The Sure-Loc IN301-CDR is a Grade 2 interconnect lock built around the Schlage SC1 keyway, so it keys into an SC1 master system alongside existing doors. The Dormakaba InSync RI6200S works from a different premise: it is a battery operated electronic lock using RFID keys, where one key covers multiple access points and access changes are pushed to the lock through the key instead of through a keyway and pinning.
8) Can a Dormakaba InSync RFID lock go on an exterior apartment or breezeway door in a cold climate?
Indoor and outdoor approved, with an operating range of -31 F to 151 F (-35 C to 66 C). That covers unconditioned breezeways, exterior unit doors, and utility doors in northern climates. It runs on 4 AA batteries, so there is no wiring to pull to the opening.
9) Do I need software to run Dormakaba InSync locks, or do they work standalone?
InSync locks are managed by SAM RF software, which is what makes the RFID key system work across a property. Administrators program a lock once, and the software pushes access privilege changes and move ins and outs to each lock through the key itself the next time a newly created key is used in it. One key opens multiple access points, so staff do not tour the building to reprogram doors. If you want an electronic lever lock with no back-end software behind it, an interconnected set like this is the wrong tool.
10) What is the alternative to the Dormakaba InSync if I just want a mechanical keyed interconnected lock?
Straight mechanical interconnected sets in the same footprint include the Schlage CS210-B500, a heavy duty Grade 2 entrance single locking interconnected lockset, the Deltana CL300ILC Grade 2 entrance interconnected lock with the Clarendon lever, and the Sure-Loc IN301, a Grade 2 interconnect keyed to the Schlage SC1 keyway and 3-hour fire rated. All three give you the single-motion egress an interconnected set is for, with a key cylinder instead of RFID credentials and no software or batteries behind them. The trade is that access changes mean rekeying, not reprogramming.
11) Can a resident lock themselves out of an apartment with a Dormakaba InSync Unit lock?
On the I and D Unit configurations, the deadbolt is thrown by rotating the inside thumbturn or the inserted RFID key, and once it is locked only duplicate resident keys and authorized service keys get in, so a resident who leaves without a key is out. The InSync M and L Unit configurations are the lockout-proof ones: each rotation of the inside lever puts the lock into a toggled condition that eliminates lockouts, and inserting the key after egress returns it to locked, with an audit trail stored in the lock for each occurrence. Choose by whether your residents carry keys reliably.
12) Is the Schlage S270 a substitute for the Dormakaba InSync RI6200S interconnected lock?
No. The Schlage S270 is a Grade 2 cylindrical keyed lever lock in the S200 Series with a classroom function, which is a single lever set on one bore with no deadbolt tied to it. The InSync RI6200S is an interconnected latch and deadbolt where rotating the inside lever retracts both at once, and it is configured as a Unit lock for apartment entry, offices and utility rooms. A door prepped for the interconnected pair of bores will not be filled by the S270, and a classroom function does not give resident entry behavior.
13) Can I use a Schlage Residential handleset like the FC58 Plymouth on the same apartment entry door as the InSync RI6200S?
The Schlage Residential FC58 Plymouth is an outside handleset with 3 and 4 trim in the Custom FCT-Series with an entrance function, and the FC94 with Latitude lever and Collins trim is the matching inside dummy handleset in the Custom FC-Series. Those are residential-line decorative handlesets. The InSync RI6200S is specified as commercial hardware and carries ADA-compliant levers and thumbturns, so on a commercial apartment entry under a lever and ADA requirement the handleset trim is a different class of product rather than a like-for-like exchange.
14) Is the Dormakaba InSync RI6200S a commercial-grade lock or a residential one?
Commercial. It is a battery operated cylindrical electronic lever lock built for multi-housing and MRO use, with an indoor/outdoor rating and standard deadbolt prep. That matters for a property manager standardizing a building: this is the same platform used on perimeter entries and amenity doors through the other InSync configurations, so the key a resident carries works across access points rather than only on the unit door.
