Dormakaba RI6200C InSync Batte...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$609.37
$504.72
Dormakaba Dormakaba RI6200C InSync Battery Operated Interconnected Cylindrical Latch and Deadbolt Lock, Unit, Electronic RFID Keys, Continental Lever, Left Hand, Satin Chrome RI6200C-26D

Dormakaba RI6200C InSync Battery Operated Interconnected Cylindrical Latch and Deadbolt Lock, Unit, Electronic RFID Keys, Continental Lever, Left Hand, Satin Chrome

(No reviews yet) Write a Review

Model: RI6200C-26D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$609.37
$504.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

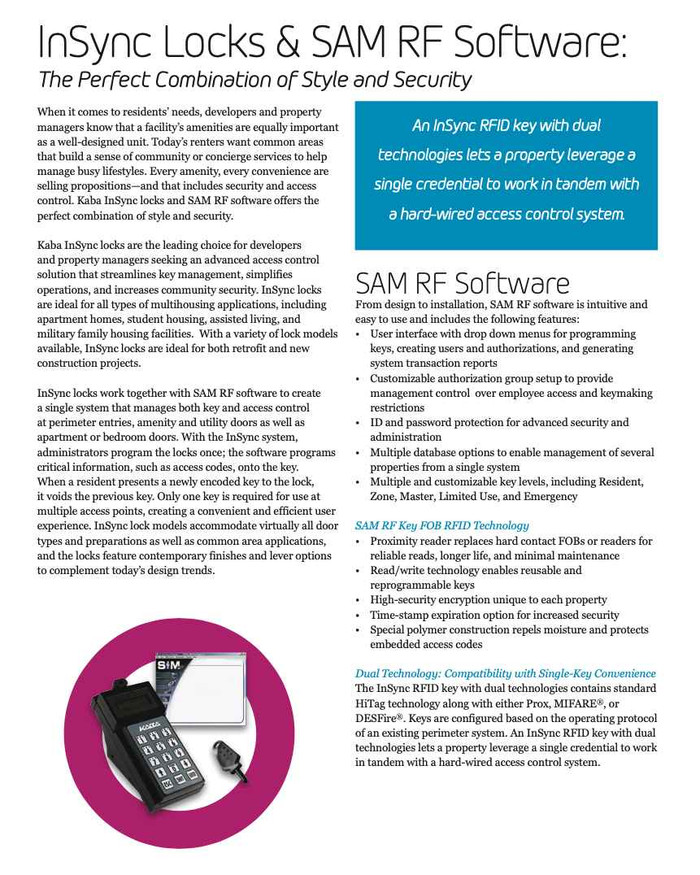

InSync Lock Series

InSync locks work together with SAM RF software to create a single system that manages both key and access control at perimeter entries, amenity and utility doors as well as apartment or bedroom doors. With the InSync system, administrators only need to program the locks once; the software continually manages critical informational changes such as access privileges and move ins/outs. This information is delivered automatically to each lock via the InSync key once the “New” version of the key is created and used in the locks. Only one key is required for use at multiple access points, creating a convenient and efficient “No Touring” user experience. InSync lock models accommodate virtually all door types and preparations, and common area/amenity applications. The locks feature contemporary finishes and lever options to complement today’s design trends.

  • Unit — Designed for apartment entry, offices, utility rooms, and more
  • Suite — Ideal for multiple leases per apartment, such as student housing
  • Common — Used for perimeter entries and amenity spaces
  • Entry — Used to make an InSync Unit lock behave like a hotel lock; the lock will always automatically re-lock behind a resident
  • Suite Egress — Used to make a Suite lock act like a Unit lock where the key or the thumbturn is used to manually re-lock the lock


Product details

The InSync Access Control System has different configurations to accommodate various applications, from unit and suite to elevator and pool access.



InSync I and D Unit Locks

The I and D unit configurations provide operational functionality for individual entry doors. Rotation of the inside thumbturn or the inserted RFID key extends or retracts the 1" dead bolt locking or unlocking the door. In the locked position, only duplicate resident and authorized service keys can access the unit. Unit locks are programmed with one resident code (change key). Each key made with one resident code can have up to 64 unique identity codes.



InSync M and L Unit Locks

The M and L unit configurations provide true residential entry lock functionality. Each time the inside lever is rotated, the lock goes into a “toggled” condition which eliminates the possibility of lock outs. When the key is inserted into the lock after egress, the lock is placed back into a locked position. An audit trail is created and stored within the lock for each occurrence. The inside thumbturn, when turned, will toggle the lock between unlocked and locked. Multiple residents can have access to the same unit if needed. All residents are completely unique in the system and are tracked individually.



InSync I, D, M and L Suite Locks

The suite configuration allows ingress and egress to multiple residents who need to access individual unit doors located behind the suite door. A resident uses the InSync I and D suite locks just like a traditional door lock.  The resident throws the dead bolt using the interior thumbturn or rotating the key in the lock after ingress or egress to relock the door. M and L suite locks have no interior thumbturn and always remain in a locked position after ingress or egress. Suite locks can recognize up to 20 unique resident codes.



InSync RAC Common Area Access

InSync RAC and CP products are available as either standalone battery- operated door locks or hard-wired AC/DC electrically powered devices designed to work in conjunction with other electronic latching hardware.
RAC works in conjunction with remote access points including elevators, outdoor pools, roll-up garage doors, parking arms, electric strikes, magnets, and telephone entry systems.



Technical Data

  • 1" deadbolt (D, I)
  • 2⅜" (60mm) or 2¾" (70mm) backset (D, I)
  • Interior thumbturn (D, I)
  • Standard deadbolt door prep (D, I)
  • Door thickness: 1⅜" – 2" (D, I)
  • Interconnected single motion egress (I)
    • When the inside lever is rotated, both latch and deadbolt are simultaneously retracted
  • ADA-compliant levers and thumbturns (I)
  • UL certified for use on fire-rated doors: 20-minute rating (D, I)
  • Environmental: Indoor/Outdoor approved (D, I) -31 °F to 151 °F (-35 °C to 66 °C)
  • Uses 4 AA batteries (D, I)



InSync M Electronic Lock with ASM Mortise and InSync L Electronic Lock with Tubular Deadlatch

  • ½" tubular deadlatch (L)
  • 2⅜" (60mm) or 2¾" (70mm) backset (L)
  • UL certified for use on fire-rated doors: 20-minute rating (L)
  • Interior thumbturn (Unit models only) (L, M)
  • Complete lever set/single motion egress (L, M)
  • 1" automatic deadbolt (ADB) (M)
  • 2¾" (70mm) backset (M)
  • UL certified for use on fire doors: 20-minute rating or 3-hour rating (M)
  • 8" mortise lock (M)
  • ¾" dead-locking latch (M)
  • ADA-compliant levers and thumbturns (L, M)
  • Environmental: Indoor/Outdoor approved (L, M)
    • -31 °F to 151 °F (-35 °C to 66 °C)
  • Uses 4 AA batteries (L, M)



InSync C Series - RAC Remote Access Controller, CP Electronic Lock for Exit devices, CL Electronic lock with Tubular Deadlatch and CM Electronic lock with ASM Mortise

  • Remote control unit (RCU) switch works with electrified locking devices (RAC)
  • Controls electronic strikes and magnetic latches up to 24 volts AC/DC (RAC)
  • Functions as elevator control unit (ECU) with a single relay (RAC)
  • Available in flush or surface mount (RAC)
  • Works in conjunction with rim and vertical exit hardware for common area doors (CP)
  • Interfaces with industry-leading exit devices (CP)
  • Compatible with a variety of rim and surface mount vertical rod panic hardware (CP)
  • ½" tubular dead latch (CL)
  • Single motion egress with common area electronics (CL, CM)
  • ¾" anti-pick latch (CM)
  • Available with UL 20-minute or 3-hour rating (CM)
  • Environmental: Indoor/Outdoor approved (RAC, CP)
    • -31 °F to 151 °F (-35 °C to 66 °C)



Finishes for all models: (Limited availability)

  • Satin Chrome
  • Satin Brass
  • Bright Chrome
  • Bright Brass
  • *Dark Mahogany
  • *Satin Nickel



Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
InSync Series
Configuration:
Common - Used for perimeter entries and amenity spaces
Product Subgroup:
Bored Locksets
Product Type:
Interconnected Locks
Subcategory:
Tubular Dead-Locking Latch Bolt Lock
Lock Type:
Cylindrical
Commercial/Residential:
Commercial
Power:
Battery Operated
Electronic:
Yes
Battery Operated:
Yes
Handle Type:
Lever
Product Attribute:
Electronic Locks
Product Model:
RL3240S
Product Category:
Electronic Locks
Department:
Door Hardware

Dormakaba RI6200C-26D – Frequently Asked Questions

1) Can a Dormakaba InSync electronic lock go on a fire rated apartment or corridor door?
The InSync I interconnected lock set is UL certified for use on fire rated doors with a 20-minute rating, as is the D deadbolt. If the opening needs a longer rating, the interconnected cylindrical lock is not the one: the InSync M with the ASM mortise lock is the model carrying a UL 20-minute or 3-hour rating.
2) Does a resident have to turn two things to get out with an interconnected deadbolt lock like the Dormakaba InSync?
No, and that is the point of the interconnected design. Rotating the inside lever retracts the latch and the 1 inch deadbolt at the same time, so egress is a single motion. That is what an interconnected lock buys you over a separate lockset plus deadbolt on the same door.
3) Is the RI6200C InSync lock the right configuration for a building perimeter or amenity door, or for apartment entries?
The RI6200C is built in the Common configuration, which is the one used for perimeter entries and amenity spaces. Apartment or office entry doors take the Unit configuration instead, multiple leases behind one door (student housing) take Suite, and Entry is the version that makes a Unit lock relock automatically behind the resident the way a hotel lock does.
4) Does the Dormakaba InSync lock need to be wired to power?
No wiring. The InSync runs on 4 AA batteries, so it goes on an existing door with no electrician and no power run to the frame. If you need to control an elevator, a pool gate, an electric strike or a magnetic latch instead of a door lock, that is the RAC remote access controller, which is offered as either a battery unit or a hard-wired AC/DC device and switches devices up to 24 volts AC/DC.
5) Do I need to specify handing for the Dormakaba RI6200C InSync lever lock?
Yes. The RI6200C is built left hand with a Continental lever, so handing is fixed at the order, not adjustable in the field. Stand outside the door: if the hinges are on your left and the door swings away from you, that is left hand. Get it wrong and the lever points the wrong way.
6) I want an interconnected lock but not an electronic one. What is a mechanical alternative to the Dormakaba InSync?
If you want the single-motion egress without RFID credentials or batteries, look at keyed mechanical interconnected locksets: the Schlage CS210-B500 is a Grade 2 heavy duty entrance interconnected lockset, and the Deltana CL300ILC is a Grade 2 entrance interconnected lock with the Clarendon lever. Both give you the latch-and-deadbolt-together egress. What you give up is the credential management, the audit trail, and one key working across perimeter, amenity and unit doors.
7) What is the deadbolt throw on the Dormakaba InSync interconnected lock, and will it reach my existing strike?
One inch of deadbolt throw, which is full commercial length and reaches a standard deadbolt strike box already mortised into the frame. The lock also uses standard deadbolt door prep, so on a replacement the existing bolt hole and strike normally carry over. Confirm the frame strike is a full 1 inch deep before pulling the old lock.
8) What is a mechanical alternative to the Dormakaba RI6200C InSync interconnected lock for an apartment entry door?
The Schlage CS210-B500 is a Grade 2 entrance single locking interconnected lockset, and the Deltana CL300ILC is a Grade 2 interconnected lock in the entrance function with a Clarendon lever. Both give the same interconnected latch-and-deadbolt arrangement on an apartment entry door using a keyed cylinder. The RI6200C InSync is a battery operated electronic lock credentialed with RFID keys rather than a mechanical key, so choosing between them is a decision about whether the door is managed by access control software or by a key ring.
9) Will a battery powered InSync lock hold up on an exterior door in a cold climate?
It is approved for indoor and outdoor use with an operating range of -31 F to 151 F (-35 C to 66 C), which covers exposed perimeter and amenity doors in most of North America.
10) How many keys or credentials can one InSync lock handle across a building?
Depends on the configuration. A Unit lock is programmed with one resident code (the change key), and each key made with that resident code can carry up to 64 unique identity codes. A Suite lock recognizes up to 20 unique resident codes. The system runs on RFID keys managed through SAM RF software, and one key works at multiple access points, so a resident carries a single credential for the perimeter, the amenity door and their own door.
11) How do access changes and move-outs get pushed to InSync locks that have no wiring?
The lock is programmed once at install. After that, SAM RF software handles access privilege changes and move ins and outs, and the update travels to each lock on the InSync key itself: create the new version of the key, use it in the lock, and the lock takes the change. Nobody walks the building with a laptop.
12) Does the InSync lever lock meet ADA requirements for accessible openings?
The levers and thumbturns on the InSync I interconnected lock are ADA-compliant, as they are on the L and M models. The lever handle itself is what does it, since it operates without tight grasping or twisting.
13) Can I use InSync on a common area door that already has a panic exit device?
Not with a cylindrical lockset. A door with rim or surface vertical rod panic hardware takes the InSync CP, which is the electronic reader made to interface with exit devices and drive them on common area doors. The CP is the credential side only, so the exit hardware stays on the door.
14) Which interconnected lock should be used on a classroom or office door that needs a classroom function instead of a unit entry function?
The Schlage S270 is a Grade 2 cylindrical keyed lever lock in the classroom function from the S200 Series. That function is the one specified where the door is locked and unlocked from the outside by key and the inside lever always allows egress. The Dormakaba RI6200C InSync is a cylindrical lever lock configured for common area use at perimeter entries and amenity spaces, so it addresses a different opening than a classroom door.
15) Is a Schlage Plymouth handleset a substitute for the Dormakaba RI6200C InSync lock?
No. The Schlage Residential FC58 Plymouth is an outside handleset with 3 and 4 trim in the entrance function from the Custom FCT-Series, and the FC94 with Latitude lever and Collins trim is an inside dummy handleset from the Custom FC-Series - a dummy has no operating latch at all. The Dormakaba RI6200C InSync is a commercial cylindrical interconnected latch and deadbolt lock with a lever handle. A residential handleset changes the appearance of the door but does not provide the interconnected commercial function.
16) What is the difference between a cylindrical interconnected lock and a plain cylindrical lever lock when replacing a Dormakaba RI6200C InSync?
The Schlage S270 is a Grade 2 cylindrical keyed lever lock, a single lever unit with no deadbolt tied to it. The Deltana CL300ILC and Schlage CS210-B500 are Grade 2 interconnected locks, which pair a latch and a deadbolt so one motion of the inside lever retracts both. The Dormakaba RI6200C InSync is an interconnected latch and deadbolt lock, so a plain cylindrical lever lock would leave the opening without the deadbolt half of the assembly.
17) What finish does the RI6200C come in, and will it match the rest of my building hardware?
This one is 626 satin chrome, the standard commercial finish that matches most existing lever and closer hardware. Across the InSync line the finishes offered are satin chrome, satin brass, bright chrome, bright brass, dark mahogany and satin nickel.
18) For a multi-family building standardizing on one interconnected lock across both keyed and credentialed doors, what pairs with the Dormakaba RI6200C InSync?
The Schlage CS210-B500 is a heavy duty Grade 2 entrance interconnected lockset and the Deltana CL300ILC is a Grade 2 entrance interconnected lock, either of which carries the same single-motion interconnected arrangement on doors that stay on mechanical keys. The Dormakaba RI6200C InSync covers the doors that move onto RFID credentials, since it is battery operated and electronic. Keeping the interconnected function consistent means the resident operates every door the same way regardless of how it is credentialed.
