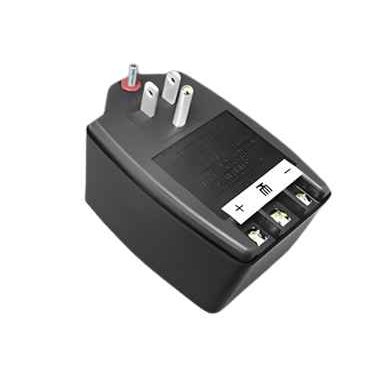

Dortronics 4000 Series - 24 Volt Plug-in Power Supply (1 Amp @ 24VDC), AC to DC Transformer, for Use with 1100 Maglocks

Dortronics 4000 Series - 24 Volt Plug-in Power Supply (1 Amp @ 24VDC), AC to DC Transformer, for Use with 1100 Maglocks

(No reviews yet) Write a Review

Model: 4024

In Stock (leaves warehouse same day if ordered before 3pm ET)

$75.00
$48.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Dortronics 4000 Series - 24 Volt Plug-in Power Supply (1 Amp @ 24VDC), AC to DC Transformer, for Use with 1100 Maglocks

  • Plug in power transformer, 1 AMP at 24VDC

Manufacturer Resources

Product Specs

Product Group:
Electronic Access Controls
Series:
4000 Series
Product Subgroup:
Controllers, Power Supplies and Transformers
Product Type:
Plug Ins
Subcategory:
Power Distribution
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
4024
Product Category:
Electronic Access Controls
Department:
Door Hardware

Dortronics 4024 – Frequently Asked Questions

1) What power supply do I need for a Dortronics 1100 Series maglock?
The Dortronics 4024 plug-in transformer is the matched supply for the 1100 Series maglocks. It converts AC wall power to 24VDC at 1 amp, so it drives the lock directly with no separate rectifier or filtered supply in between. It plugs into a receptacle rather than mounting in an enclosure, which is why it suits a single opening rather than a multi-door head end.
2) Is the Dortronics 4024 a 12 volt or 24 volt supply?
24VDC only. The 4024 is offered in a single voltage, so there is no 12 volt version of it to order. If the maglock or strike on your door is a 12VDC device, this is the wrong transformer for it.
3) Will a 1 amp transformer be enough to run more than one maglock?
The 4024 delivers 1 amp at 24VDC total, and that is the ceiling for everything hanging off it. Add up the holding current of each lock plus anything else on the same run (keypad, reader, timer) and stay under 1 amp. For a bank of doors or a shared head end, you want a rack or enclosure-mounted supply sized to the full load rather than a plug-in unit like this one.
4) Does the Dortronics 4024 output AC or DC power?
DC. It is an AC to DC transformer, taking wall AC and putting out regulated 24 volts DC. Maglocks and most electric strikes with a DC coil need that conversion. A device that calls for 24VAC will not run correctly off it.
5) Do I need a separate power supply cabinet or backup battery with the 4024?
No cabinet is involved. The 4024 is a plug-in unit that goes straight into a receptacle, so there is no enclosure, no battery charger circuit, and no standby battery. If your egress scheme or fire alarm interface requires the lock to stay powered through an outage, you need a supply built with battery backup instead of this one.
6) Is this Dortronics transformer rated for commercial door hardware use?
Yes, the 4024 is a commercial-grade access control component from the Dortronics 4000 Series, intended for electrified door hardware rather than consumer electronics.
