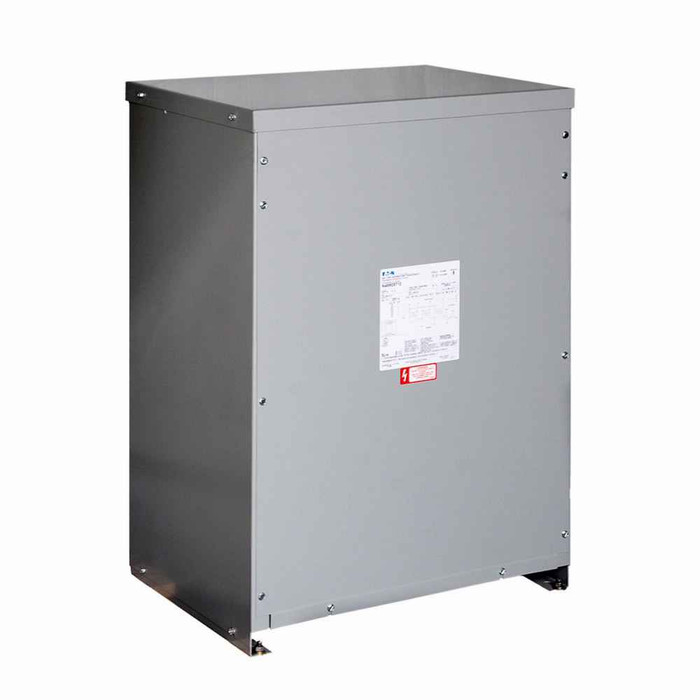

Drive Isolation Transformer, Ventilated, Dry Type Distribution, DT-3, Three-phase, PV: 460 delta, Taps: 1 at +5% FCAN, 1 at -5% FCBN, SV: 460 delta, 150°C, 175 kVA, Al windings, Frame: 918AN
Manufacturer Resources
Product Specs
- Catalog Notes:
- Totally enclosed non-ventilated DS-3 or DT-3
- Certifications:
- UL Listed
- Coil Material:
- Aluminum
- Design:
- DT-3
- Frame:
- 918AN
- Frequency Rating:
- 60 Hz
- Phase:
- Three-phase
- Primary Voltage:
- 460 V
- Product Height:
- 62.18 in
- Product Length Depth:
- 30.68 in
- Product Weight:
- 1525 lb
- Product Width:
- 31.44 in
- Secondary Voltage:
- 460 V
- Tap Size:
- 1 at +5% FCAN, 1 at -5% FCBN
- Temperature Rise:
- 150 °C rise
- Type:
- Dry Type Distribution, Drive Isolation Transformer
- Volt Ampere Rating:
- 175 kVA
