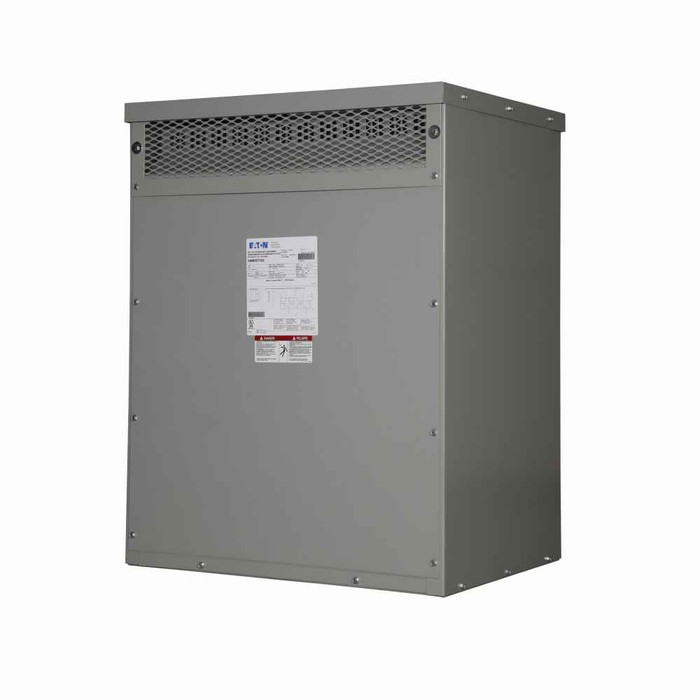

Drive Isolation Transformer, Ventilated, Dry Type Distribution, DT-3, Three-phase, PV: 575 delta, Taps: 1 at +5% FCAN, 1 at -5% FCBN, SV: 575Y/332V, 150°C, 118 kVA, Al windings, Frame: 916A, uses WS19
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Coil Material:
- Aluminum
- Design:
- DT-3
- Frame:
- 916A
- Frequency Rating:
- 60 Hz
- Phase:
- Three-phase
- Primary Voltage:
- 575 V
- Product Height:
- 48.56 in
- Product Length Depth:
- 23.42 in
- Product Weight:
- 948 lb
- Product Width:
- 28.22 in
- Secondary Voltage:
- 575Y/332 V
- Tap Size:
- 1 at +5% FCAN, 1 at -5% FCBN
- Temperature Rise:
- 150 °C rise
- Type:
- Dry Type Distribution, Drive Isolation Transformer
- Volt Ampere Rating:
- 118 kVA
- Weathershield:
- WS19
