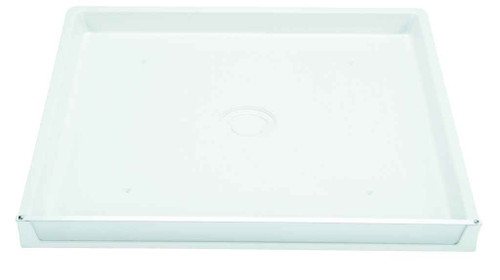

Mustee 99 DURAPAN WASHER PAN 30X32 2" CENTER DRAIN

The Durapan 99 measures 30 by 32 inches, which covers the footprint of a typical residential washer sitting on the floor. Measure the machine's base and leveling foot spread before ordering; the pan needs the full 30 x 32 inch floor area clear, plus room for the drain line to exit.

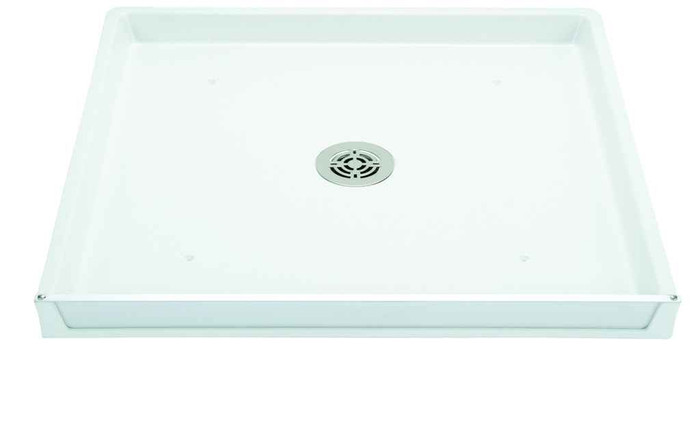

The 99 Durapan has a 2 inch drain located at the center of the pan. Plumb it to a 2 inch line, and because the outlet is in the center rather than at an edge, the connection has to be made under the pan, so plan the floor penetration or the pan's elevation before setting it.

A center drain, like the one on the Mustee 99, drains from the middle of the pan and needs access below the pan for the connection, which suits a wood-frame floor where you can drop through the deck or a slab with a stubbed-up drain in the right spot. An end or side drain routes to the perimeter and is easier when the pan sits flat on a slab and the waste line runs out to a wall. Pick based on where your existing drain comes up.

It's a catch pan that sits under a washing machine to contain a hose failure or an overflow and carry it to a drain instead of into the floor. In stacked multi-family and over finished space, this is the part that keeps a burst supply hose from becoming a ceiling claim on the unit below. The 99 is the 30 x 32 inch size with a 2 inch center outlet.

Mustee model 99. That's the manufacturer part number to order against, and it identifies the 30 by 32 inch Durapan with the 2 inch center drain specifically, so it won't be confused with the other pan sizes Mustee builds.
