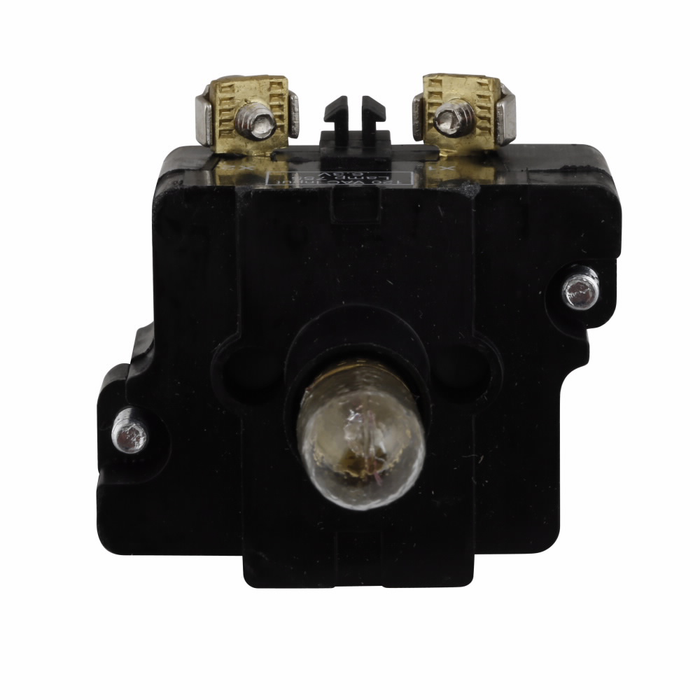

Eaton Heavy-Duty 30.5 mm Incandescent Transformer Light Unit, 600 Vac

Eaton Heavy-Duty 30.5 mm Incandescent Transformer Light Unit, 600 Vac

(No reviews yet) Write a Review

Model: 10250T63

In Stock (leaves warehouse same day if ordered before 3pm ET)

$239.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Heavy-Duty 30.5 mm Incandescent Transformer Light Unit, 600 Vac

The Eaton Heavy-Duty 30.5 mm Incandescent Transformer Light Unit is built for industrial control panels, machine enclosures, and process equipment where reliable visual signaling is critical. Configured as a 30.5 mm heavy-duty incandescent transformer light unit rated for 600 Vac systems, this Eaton unit uses lamp #755 for consistent, bright indication. The CE Marked design supports installations that require documented compliance, making it a dependable choice for professional electrical and control panel work.

Key Features

  • Configuration: 30.5 mm heavy-duty light unit body designed for demanding industrial control applications.
  • Light Unit Type: Incandescent, transformer-type illumination for dependable pilot light performance.
  • Voltage Rating: Rated 600 Vac, suitable for a wide range of industrial control voltages.
  • Lamp Number: Uses lamp #755 for consistent brightness and easy replacement.
  • Series: Part of the Eaton 10250T series of heavy-duty pilot devices.
  • Compliance: CE Marked for documented conformity in qualifying installations.
  • Warranty: Backed by a 1 year manufacturer warranty for added confidence.

Certifications & Compliance

  • CE Marked

Technical Specifications

  • Warranty: 1 year
  • Department: Electrical
  • Light Unit Type: Incandescent, transformer
  • Type: 30.5 mm, Heavy-Duty
  • LED Lamp Number: #755
  • Series: 10250T
  • Compliances: CE Marked

Typical Applications

  • Industrial Control Panels and Machine Enclosures
  • Process Equipment Status Indication
  • Panelboard and Switchgear Signaling
  • Commercial and Industrial Electrical Installations
  • Renovation and New Construction Control Systems

Why Eaton?

Eaton engineers heavy-duty pilot light components like this 30.5 mm transformer light unit for the reliability that industrial control applications demand. With a 600 Vac rating, CE Marked compliance, and a 1 year warranty, this Eaton unit delivers the code-compliant, dependable performance electrical professionals expect from Eaton control products.

Manufacturer Resources

Product Specs

Light unit type:
Incandescent, transformer
Product Type:
Pilot Light
LED lamp number:
#755
Warranty:
1 year
Series:
10250T
Compliances:
CE Marked
Department:
Electrical
Voltage Rating:
600V
Standards:
CE Marked
Configuration:
Heavy-Duty
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton 10250T63 – Frequently Asked Questions

1) What supply voltages does the Eaton 10250T transformer light unit come in?
Four voltages: 24, 120, 480 and 600 volts. The part numbers run 10250T89 for 24V, 10250T63 for 120V, 10250T67 for 480V and 10250T68 for 600V. Pick the one that matches the control voltage feeding the pilot circuit, not the panel's incoming service.
2) Will the Eaton 10250T light unit fit a 30.5 mm panel cutout?
Yes. It is a 30.5 mm heavy-duty body, which is the standard large pilot device hole used on industrial control panels and machine enclosures, so it drops into existing 30.5 mm punchings alongside other heavy-duty pushbuttons and selector switches.
3) Can I standardize one part number across a plant with mixed control voltages?
Not with a single number. The 10250T light unit is voltage specific, so a facility running 120 volt control on some machines and 480 or 600 volt on others needs the matching unit for each: 10250T63, 10250T67 or 10250T68. Same 30.5 mm body and same #755 lamp across all of them, which keeps the spares list short even when the part numbers differ.
4) Why is a transformer-type pilot light used instead of a direct-voltage lamp on a 480V control circuit?
The 10250T transformer light unit carries its own step-down transformer, so the lamp itself runs at low voltage while the unit is fed from the higher control voltage. That is what lets one 30.5 mm device work on 480 or 600 volt circuits. If your control circuit is already low voltage, the 24 volt version (10250T89) is the one to order.
5) What lamp does the Eaton 10250T pilot light take when the bulb burns out?
Lamp #755. It is a standard replacement bulb, so keeping a few on the shelf covers every indicator on the panel using this unit.
6) Is the Eaton 10250T indicator light CE Marked for an export machine build?
CE Marked, yes. That is the compliance the unit carries, which matters when the panel documentation package has to show conformity for equipment shipping into or operating in a CE jurisdiction.
7) Is this an LED indicator or an incandescent one?
Incandescent. The 10250T transformer light unit uses a replaceable #755 incandescent lamp rather than a solid state LED module, so plan on occasional lamp changes over the life of the panel.
