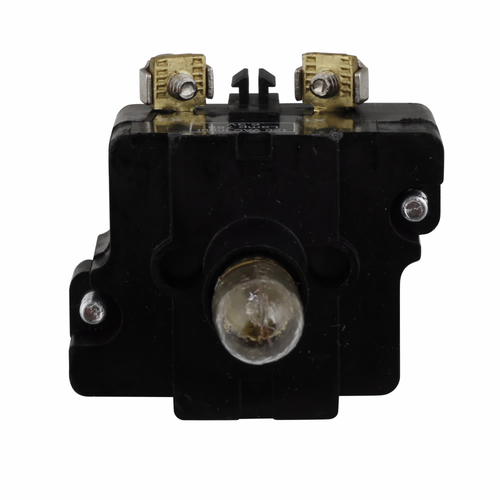

Eaton Heavy-Duty 30.5 mm LED Pilot Light Unit, Bayonet Base

Eaton Heavy-Duty 30.5 mm LED Pilot Light Unit, Bayonet Base

(No reviews yet) Write a Review

Model: 10250T97L

In Stock (leaves warehouse same day if ordered before 3pm ET)

$160.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Heavy-Duty 30.5 mm LED Pilot Light Unit, Bayonet Base

The Eaton 10250T Series is a heavy-duty, 30.5 mm LED full voltage light unit designed for panel-mount indication in demanding industrial environments. Featuring a bayonet base and rated NEMA 3, 3R, 4, 4X, 12, 13, this Eaton light unit delivers dependable, code-compliant performance across indoor, outdoor, and washdown applications. The unit does not include the LED lamp — order the correct bayonet-base LED separately to match your desired lens color.

Key Features

  • Compact Footprint: Measures 1 in wide x 1 in deep x 1 in high, suited for standard panel cutouts.
  • Heavy-Duty 30.5 mm Type: Robust 30.5 mm heavy-duty construction built for industrial control panel service.
  • LED, Full Voltage Light Unit: Full voltage LED operation eliminates the need for a separate transformer for panel indication.
  • Bayonet Base: Accepts a bayonet-base LED lamp, ordered separately to match the required lens color.
  • Multi-Environment NEMA Rating: Rated NEMA 3, 3R, 4, 4X, 12, 13 for use in a wide range of indoor, outdoor, and washdown environments.
  • 10250T Series: Part of Eaton's 10250T pilot light and light unit series for control and connectivity applications.

Certifications & Compliance

  • CSA Certified
  • CE Marked

Technical Specifications

  • Warranty: 1 year
  • Product Type: Electrical Component
  • Department: Electrical

Typical Applications

  • Industrial Control Panels
  • Machine and Equipment Status Indication
  • Washdown and Outdoor Equipment Enclosures
  • HVAC and Process Control Systems
  • Panel-Mount Indicator Light Installations

Why Eaton?

Eaton's 10250T Heavy-Duty 30.5 mm LED light unit combines CSA certified and CE marked construction with broad NEMA 3, 3R, 4, 4X, 12, 13 environmental protection, making it a reliable choice for panel indication in harsh industrial settings. Its full voltage LED design and bayonet-base lamp compatibility support consistent, code-compliant performance for professional electrical and controls work.

Manufacturer Resources

Product Specs

LED lamp number:
Bayonet base
Product Width:
1 in
Performance Rating:
NEMA 12
Warranty:
1 year
Series:
10250T
Product Length/Depth:
1 in
Compliances:
CE Marked
Light unit type:
LED, full voltage
Product Height:
1 in
Product Type:
Pilot Device Accessory
Certifications:
CSA Certified
Department:
Electrical
Configuration:
NEMA 3/3R/4/4X/12/13
Listing:
CSA Certified
Standards:
CE Marked
Bulb Base:
Bayonet
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices
Product Weight:
0.1 lb
Product Length:
1 in

Eaton 10250T97L – Frequently Asked Questions

1) Does the Eaton 10250T97L pilot light come with the LED lamp?
No. The 10250T97L is the light unit only. You order the bayonet-base LED lamp separately, and that lamp is what sets the lens color you end up with. Plan on two line items if you're stocking a panel build.
2) What size panel cutout does the Eaton 10250T light unit need?
It's a 30.5 mm heavy-duty device, so it drops into the standard 30.5 mm hole used across industrial control panels. The unit itself measures 1 inch wide by 1 inch deep by 1 inch high, so it doesn't eat much space behind the door.
3) Can I use the Eaton 10250T LED light unit on a washdown or outdoor enclosure?
Yes. It carries NEMA 3, 3R, 4, 4X, 12 and 13 ratings, which covers outdoor rain and sleet exposure, hosedown, corrosion-resistant 4X service, and oil and dust tight indoor panels. That's the reason it shows up on food plant and process skid panels as well as indoor control cabinets.
4) Can I use a Leviton 1201-PLG pilot light toggle switch instead of an Eaton 10250T panel indicator?
They do different jobs. The Leviton 1201-PLG is an illuminated pilot light toggle switch, 15A 120V single-pole, extra heavy-duty industrial specification grade - it switches a circuit and indicates while doing it, and it mounts in a wiring device box. The Eaton 10250T97L is an indication-only 30.5 mm light unit for a panel cutout, with no switching function, and it carries a NEMA 3/3R/4/4X/12/13 environmental rating for outdoor and washdown enclosures. Use the Leviton where you need a wall switch that shows status, and the Eaton where a control panel needs a status lamp only.
5) Do I need a transformer for the Eaton 10250T97L indicator?
No. It's a full voltage LED light unit, so it's wired directly at line voltage for the lamp you install. No separate control transformer is required just for the indication circuit.
6) Is the Eaton 10250T pilot light approved for Canadian jobs?
It is CSA Certified and also CE Marked, so it's acceptable for Canadian panel work and for export builds heading to Europe.
7) I need a colored indicator light for a control panel. Does the Eaton 10250T come in green or red?
Color isn't chosen on the light unit itself. The 10250T97L takes a bayonet-base LED lamp that you specify separately, and that lamp determines the color. If you'd rather buy a light where the color is fixed at the device, an alternative is the ABB Uniblok green pilot light indicator with a refractive lens.
8) What is the difference between the Eaton 10250T97L light unit and the ABB Uniblok green pilot light indicator?
The Eaton 10250T97L is a 30.5 mm heavy-duty LED full voltage light unit with a bayonet base, and the bayonet-base LED lamp is ordered separately so you choose the lens color at order time. The ABB Uniblok pilot light indicator from the Uniblok series is supplied as a green indicator with a refractive lens, so the color is fixed by the part you buy. If you are standardizing a panel on one indicator color, the ABB part settles it in a single item; if you want one light unit body stocked and the color decided by the lamp, the Eaton bayonet-base approach does that.
9) Will the Eaton 10250T97L match the other indicators already in my 10250T panel?
It's part of Eaton's 10250T heavy-duty 30.5 mm family, so it mounts in the same hole pattern as the rest of that series and keeps a consistent look across the door. Useful when you're standardizing indicators across a fleet of machines instead of mixing device families.
