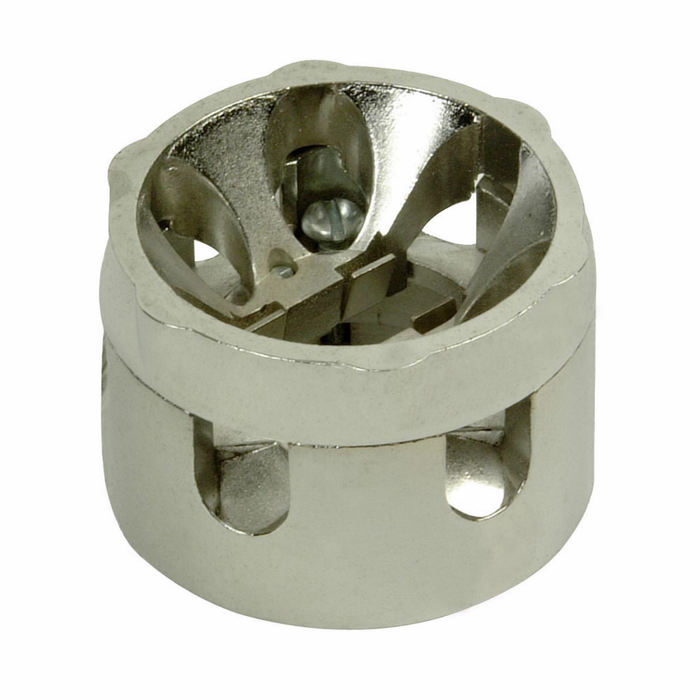

Eaton Heavy-Duty 30.5 mm Padlock Accessory
The Eaton Heavy-Duty 30.5 mm Padlock Accessory is designed for use with non-illuminated, knob type selector switch operators, allowing operators to be secured in place with a padlock for lockout/tagout and safety compliance. Built to the 30.5 mm, Heavy-Duty type specification, this padlock accessory is CSA Certified and CE Marked, making it suitable for demanding industrial control panel applications. Compact in size, it integrates cleanly with Eaton's selector switch operator line without adding bulk to the panel face.
Key Features
- Type: 30.5 mm, Heavy-Duty padlock accessory engineered for reliable mechanical lockout of the operator.
- Used With: Non-illuminated, knob type selector switch operators for direct, purpose-built compatibility.
- Compact Footprint: Product Width of 1.8 in, Product Height of 1.9 in, and Product Length/Depth of 2.4 in for easy fit within control panel layouts.
- Series: Part of the Eaton 10250T series of control station accessories.
- Compliance: CE Marked for use in applicable regulated markets.
- Certification: CSA Certified for verified safety performance.
- Backed Reliability: Covered by a 1 year warranty for added assurance.
Certifications & Compliance
- CSA Certified
- CE Marked
Technical Specifications
- Product Width: 1.8 in
- Product Length/Depth: 2.4 in
- Product Height: 1.9 in
- Type: 30.5 mm, Heavy-Duty
- Series: 10250T
- Used With: Non-illuminated, knob type selector switch operator
- Compliances: CE Marked
- Certifications: CSA Certified
- Warranty: 1 year
- Product category: Padlock accessory
- Warranty: 1 year
- Product Type: Electrical Component
- Department: Electrical
Typical Applications
- Industrial Control Panels and Enclosures
- Lockout/Tagout Safety Procedures
- Machine Control Stations
- Selector Switch Operator Security
- Commercial and Industrial Electrical Installations
Why Eaton?
Eaton's 10250T series padlock accessory is built to a Heavy-Duty, 30.5 mm specification and backed by CSA Certification and CE Marking, giving electrical professionals a dependable way to lock out non-illuminated, knob type selector switch operators. With a compact form factor and a 1 year warranty, it delivers code-conscious, reliable performance for professional control panel work.
Manufacturer Resources
Product Specs
- Product Width:
- 1.8 in
- Warranty:
- 1 year
- Used With:
- Non-illuminated, knob type selector switch operator
- Product Category:
- Padlock accessory
- Series:
- 10250T
- Product Length/Depth:
- 2.4 in
- Compliances:
- CE Marked
- Product Height:
- 1.9 in
- Product Type:
- Pilot Device Accessory
- Certifications:
- CSA Certified
- Department:
- Electrical
- Listing:
- CSA Certified
- Standards:
- CE Marked
- Product Group:
- Motor Control & Automation
- Product Subgroup:
- Push Buttons & Pilot Devices
- Product Weight:
- 0.25 lb
- Product Length:
- 2.4 in
Eaton 10250TA11 – Frequently Asked Questions
1) What Eaton operators does the 10250TA11 padlock attachment work with?
The 10250TA11 is built for non-illuminated, knob type selector switch operators in Eaton's 30.5 mm 10250T line. It will not suit illuminated operators or pushbuttons, since it keys to the knob body of a non-illuminated selector switch.
2) Is the Eaton 10250TA11 acceptable for lockout/tagout on a machine control station?
It is made for exactly that: it holds a non-illuminated knob selector switch operator in position so a padlock can secure it during LOTO and maintenance work. The accessory itself is the mechanical means of locking the operator; you supply the padlock.
3) How much room do I need on the panel face for the Eaton 10250TA11 lockout attachment?
Allow 1.8 in width, 1.9 in height, and 2.4 in length/depth. On a densely populated door, check clearance to the adjacent operator and to anything mounted behind the panel before you commit the layout.
4) Does this Eaton padlock accessory carry any third-party approvals for use in Canada or Europe?
It is CSA Certified and CE Marked, which covers Canadian control panel work and applicable regulated European markets.
5) Does the 10250TA11 include a padlock, or do I order one separately?
The part is the padlock attachment only. It provides the hasp point on the operator; the padlock is a separate purchase, so decide your shackle size and keying scheme (often keyed-different per technician for LOTO) when you order.
6) I am standardizing lockout hardware across a plant. Is one part number enough for all my 10250T selector switches?
The 10250TA11 covers the non-illuminated knob type selector switch operators in the 10250T heavy-duty line only. Illuminated selector switches and other operator styles in the same series are not what this accessory is specified for, so survey your panels by operator style before standardizing on a single number.
