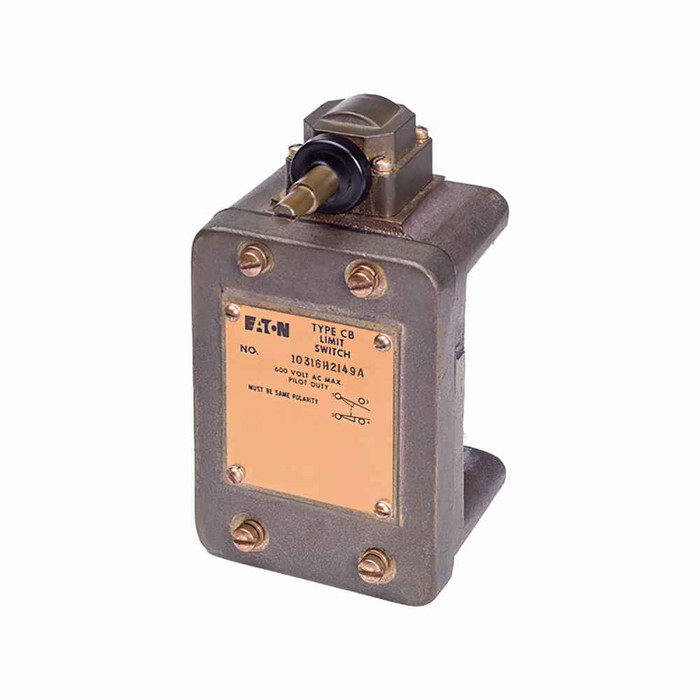

Eaton 10316 hazardous location limit switch, Side Rotary, Cast Bronze enclosure, 5A max AC, 0.1A max DC, 2NO, 5A at 600Vac, 0.1A at 120Vdc, Screw Terminals
Manufacturer Resources
Product Specs
- Catalog Notes:
- Field convertible to CW only or CCW only operation. Use only levers with Nylatron rods or rollers with explosion-proof limit switches. Contact factory for availability of CSA & CE approval status.
- Certifications:
- UL Listed
- Compliances:
- CE Marked
- Connection:
- Screw terminal
- Contact Configuration:
- 2 NO
- Contact Rating:
- 5A at 600Vac, 0.1A at 120Vdc
- Enclosure Material:
- Cast bronze
- Environmental Rating:
- NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG, NEMA 1, NEMA 4, NEMA 4X, NEMA 13
- Maximum Ac Current:
- 5:00 AM
- Maximum Dc Current:
- 0.1 A
- Operating Temperature Max:
- 200 °F
- Operating Temperature Min:
- -20 °F
- Product Height:
- 5.35 in
- Product Length Depth:
- 3 in
- Product Weight:
- 1.6813 lb
- Product Width:
- 3.08 in
- Switch Type:
- Side rotary
- Product Group:
- Electrical
