Eaton 12250T Momentary Pushbutton Operators, Non-illuminated Extended button UL (NEMA) Type 3, 3R, 4, 4X, 12, 16

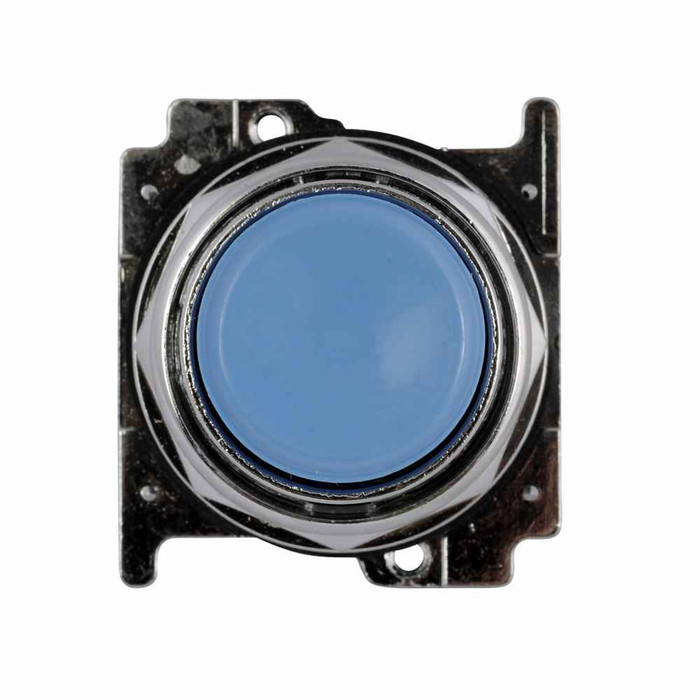

Eaton 10250T Heavy-Duty Momentary Pushbutton Operator 30.5mm Extended Non-Illuminated Chrome Bezel

(No reviews yet) Write a Review

Model: 10250T118

In Stock (leaves warehouse same day if ordered before 3pm ET)

$88.57
$53.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 10250T Heavy-Duty Momentary Pushbutton Operator 30.5mm Extended Non-Illuminated Chrome Bezel

Professional NEMA-rated pushbutton control for demanding industrial applications

The Eaton 10250T Heavy-Duty Momentary Pushbutton Operator delivers reliable control performance with its robust 30.5mm design and extended mounting configuration. This non-illuminated operator features a durable plastic actuator with chrome bezel finish, providing professional operation in NEMA Type 3, 3R, 4, 4X, 12, and 16 rated enclosures. UL Listed and CE Marked for comprehensive compliance, this 40mm series pushbutton ensures dependable momentary switching in industrial control applications.

Professional Features & Benefits

  • Heavy-Duty 30.5mm Design: Robust construction ensures reliable operation under demanding industrial conditions and frequent use cycles.
  • Extended Mounting Method: Provides enhanced accessibility and ergonomic operation while maintaining secure panel installation.
  • NEMA Multi-Type Rating: Compatible with Type 3, 3R, 4, 4X, 12, and 16 enclosures for versatile environmental protection requirements.
  • UL Listed Certification: Meets rigorous safety standards for electrical control devices in commercial and industrial installations.
  • Chrome Bezel Finish: Professional appearance with corrosion resistance for long-term durability in various environments.
  • Momentary Operating Mode: Provides precise spring-return action for reliable control circuit switching and operator feedback.
  • CE Marked Compliance: Ensures conformity with European safety and performance standards for international applications.

Technical Specifications

  • Actuator Material: Plastic
  • Bezel: Chrome
  • Certifications: UL Listed
  • Compliances: CE Marked
  • Illumination: Non-illuminated
  • Mounting Method: Extended
  • Operating Mode: Momentary
  • Product Details: 30.5 mm, Heavy-Duty
  • Product Size: 40 mm
  • Series: 10250T

Professional Applications

  • Industrial Control Panels and Machine Operation
  • Manufacturing Equipment and Process Control
  • Commercial Building Automation Systems
  • Motor Control Centers and Distribution Panels
  • Emergency Stop and Safety Control Circuits
  • HVAC and Mechanical System Controls
  • Material Handling and Conveyor Systems

Why Choose Eaton Quality?

Eaton delivers proven reliability through UL Listed certification and comprehensive NEMA environmental ratings, ensuring dependable performance across diverse industrial applications. The heavy-duty construction and chrome bezel finish provide long-term durability, while CE Marked compliance supports international installation requirements for professional control system integration.

Manufacturer Resources

Product Specs

Actuator Material:
Plastic
Bezel:
Chrome
Certifications:
UL Listed
Compliances:
CE Marked
Illumination:
Non-illuminated
Mounting Method:
Extended
Operating Mode:
Momentary
Product Details:
30.5 mm, Heavy-Duty
Product Size:
40 mm
Series:
10250T
Department:
Electrical
Product Group:
Push Buttons
Product Type:
Pushbutton Operator
Product Subgroup:
Parts & Accessories

Eaton 10250T118 – Frequently Asked Questions

1) Will the Eaton 10250T pushbutton fit a standard 30.5mm panel cutout?
Yes. The 10250T heavy-duty operator is built for the 30.5 mm hole size, which is the standard heavy-duty panel cutout used across industrial control enclosures. Its size class is listed as 40 mm, which refers to the button/bezel series, not the panel hole. If your existing panel is drilled 22.5 mm for compact-series devices, this one will not drop in without an adapter or a redrill.
2) Does the Eaton 10250T pushbutton come with a contact block?
No. The 10250T is a pushbutton operator, which is the actuator, bezel and mounting hardware only. You order the contact block or blocks separately and stack them behind the operator to get the NO and NC poles your control circuit needs. Plan that into the order so the panel is not sitting half built.
3) Can this Eaton 10250T pushbutton go in a washdown or outdoor enclosure?
It is rated for NEMA Type 3, 3R, 4, 4X, 12 and 16 enclosures, so it covers outdoor rain and sleet, hosedown, corrosion-resistant 4X, and dust-tight industrial 12. The seal only holds if the enclosure itself carries the matching rating and the operator is torqued down against a clean panel face.
4) Is the 10250T a momentary or maintained pushbutton?
Momentary. The 10250T spring returns the moment you let go, so the contact only changes state while the button is held. For a function that has to stay latched after the operator walks away, such as a hand/off/auto or a maintained stop, you need a maintained pushbutton or selector switch instead, not this operator.
5) Will a 10250T operator work with the 10250T contact blocks already in my panel?
Yes. This is an Eaton 10250T series operator, so it mounts and stacks within the 10250T heavy-duty family already in service. That matters on a maintenance swap: you can replace a cracked or faded button without pulling the contact blocks and rewiring the circuit.
6) What colors does the Eaton 10250T momentary pushbutton come in, and what are the part numbers?

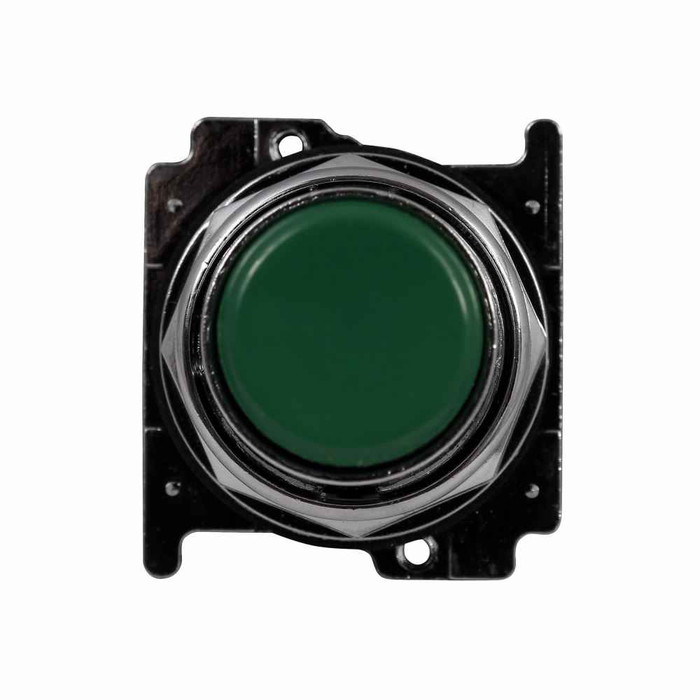

Seven colors, each its own Eaton catalog number: black 10250T111, red 10250T112, green 10250T113, white 10250T116, blue 10250T118, orange 10250T119, and yellow 10250T120. Typical panel practice is green for start, red for stop, yellow or orange for reset and alarm functions, which is why the full range is stocked.
7) What does the extended button on the Eaton 10250T mean on a panel?
The extended actuator stands proud of the bezel rather than sitting flush or shrouded, so it is easy to find and press with gloves on. The flip side is that it is more exposed to accidental contact, so for a stop or a function that must not be bumped, a flush or guarded actuator is the better choice. The actuator is plastic with a chrome bezel.
