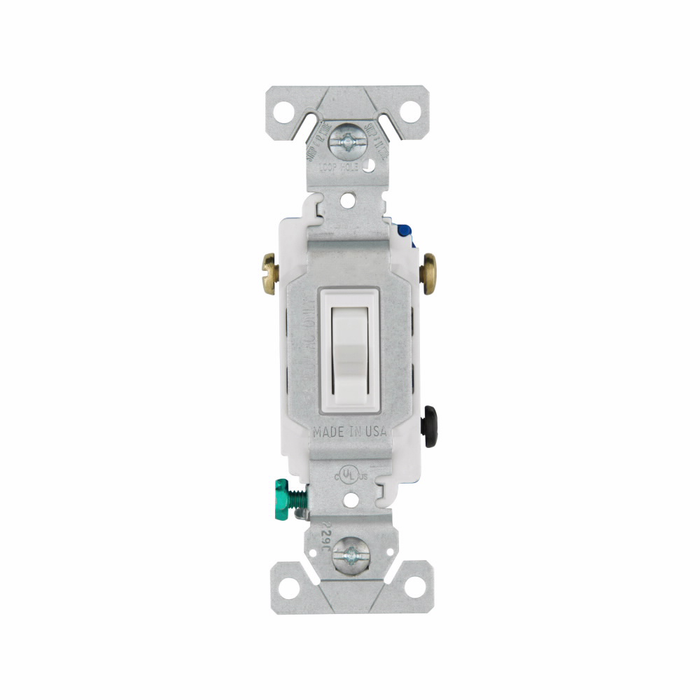

Eaton 1303-7W 15A 3-Way Toggle Switch, White, 120V

Eaton 1303-7W 15A 3-Way Toggle Switch, White, 120V

(No reviews yet) Write a Review

Model: 1303-7W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 1303-7W 15A 3-Way Toggle Switch, White, 120V

The Eaton 1303-7W is a 15A, 120V 3-way toggle switch built for flush installation in standard wall boxes. Finished in white, this switch accepts #14-10 AWG conductors and supports back, side, and push wire connections along with traditional screw terminals, giving electricians flexibility during rough-in and finish wiring. It is rated for a broad range of load types — Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Fluorescent, and Halogen — making it a practical choice for multi-location switching in residential and light commercial applications.

Key Features

  • Electrical Rating: 15A, 120V rating suitable for standard lighting, fan, and motor control circuits.
  • Wire Range: Accepts #14-10 AWG conductors for compatibility with common branch-circuit wiring.
  • Flush Mounting: Flush-style toggle mechanism designed for standard wall-box installation.
  • Versatile Wiring Methods: Back, side, and push wire connections plus screw terminals support multiple installation preferences.
  • Broad Load Compatibility: Rated for Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Fluorescent, and Halogen loads, reducing the need for multiple switch types.
  • 3-Way Configuration: Enables control of a single fixture or circuit from two separate switch locations.
  • Finish: Clean white housing for a standard, versatile appearance in any room.

Technical Specifications

  • Amperage Rating: 15A
  • Voltage Rating: 120V
  • Wire Range: #14-10 AWG
  • Mounting Style: Flush
  • Wiring Methods: Back, Side, and Push Wire, Screw
  • Color: White
  • Switch Configuration: 3-Way

Typical Applications

  • Residential and Light Commercial Lighting Circuits
  • Multi-Location (3-Way) Switching
  • Motor and Fan Control Applications
  • LED, CFL, Fluorescent, and Halogen Lighting Circuits
  • New Construction and Remodel Wiring Projects

Why Eaton?

Eaton engineers the 1303-7W toggle switch to deliver dependable 15A, 120V switching across a wide variety of load types, from incandescent and halogen to modern LED and CFL fixtures. With flexible back, side, push-wire, and screw termination options, this switch is built to simplify installation while providing the consistent performance electrical professionals rely on from Eaton devices.

Manufacturer Resources

Product Specs

list_batch:
EAT-20260922
Product Type:
3-Way Toggle Switch
Configuration:
3-Way
Voltage Rating:
120V
Amperage Rating:
15A
Department:
Electrical
Product Subgroup:
Toggle Switches
Product Color:
White
Product Group:
Wiring Devices
Product Length:
1.31 in
Compliances:
RoHS Compliant
Certifications:
cULus Listed
Product Height:
3.28 in
Product Material:
Polycarbonate
Product Width:
0.88 in
Product Weight:
0.14 lb
Allowable Wire Size:
#14-10 AWG
Number Of Poles:
Single-pole

Eaton 1303-7W – Frequently Asked Questions

1) Can the Eaton 1303-7W be used to control one light from two switch locations?
That is exactly what the 1303-7W is for. It is a 3-way toggle switch, so you wire a pair of them (one at each location) with travelers between, and either switch turns the fixture on or off. For a single switch location you want a single-pole device instead, not this one.
2) Will the Eaton 1303-7W switch dim or work with LED fixtures?
It switches LED loads but it does not dim anything. The 1303-7W is a straight on/off toggle rated for Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Fluorescent, and Halogen loads at 15A, 120V. If you need dimming on an LED or MLV circuit, you need a dimmer, not this switch.
3) What wire size does the Eaton 1303-7W accept, and can I back-wire it?
Conductor range is #14-10 AWG, which covers standard 15A and 20A branch-circuit wiring. Termination is flexible: back, side, and push wire connections plus screw terminals, so you can push-in on a quick rough-in or land it on the screws where the inspector or spec calls for it.
4) Can I put the Eaton 1303-7W on a 20-amp circuit?
No. The 1303-7W is a 15A device at 120V. On a 20A branch circuit you need a 20A-rated switch. From other brands, the Bryant 4903W is a 3-way toggle rated 20A 277V, and the Pass & Seymour PS20AC3W is a 20A specification grade toggle.
5) Is the Eaton 1303-7W suitable for a 277V commercial lighting circuit?
No. It is a 120V device. For 277V switching, look at the Bryant 4903W (3-way, 20A 277V) or the Bryant 4801W single-pole 15A 277V. The Leviton 1221 is rated 120/277V but is single-pole, not 3-way.
6) What is the closest 3-way toggle switch alternative to the Eaton 1303-7W if a 20A circuit is involved?
The Eaton 1303-7W is rated 15A at 120V in a 3-way configuration. Where the circuit calls for a 20A 3-way device, the Bryant 4903W is a 3-way AC toggle switch rated 20A 277V in commercial grade. Both handle multi-location switching of one fixture from two points; the difference is the amperage and voltage rating and Bryant's commercial-grade build.
7) Which switches look like substitutes for the Eaton 1303-7W but will not work in a 3-way circuit?
The Eaton 1303-7W is a 3-way device, meaning it has the travelers needed to control one fixture from two locations. Single-pole toggle switches cannot do that job: the Bryant 4801W is a single-pole 15A 277V AC toggle switch in white, the Leviton 1221 is an SPST extra heavy-duty industrial specification grade switch rated 20A 120/277V, and the Leviton 1221-2KL is a 1-pole extra heavy-duty spec grade switch at 20A, 120/277V. Any of those will match the look of a white toggle in the wall plate, but they only switch from one location.
8) Is the Eaton 1303-7W tough enough for a high-traffic commercial corridor?
It is a residential and light commercial device at 15A, 120V. For heavy daily cycling in a school, hospital, or industrial space, property and MRO buyers usually standardize on a spec or industrial grade switch: the Leviton 1221-2KL and 1201-2I are extra heavy-duty spec/industrial grade, and the Pass and Seymour CS20AC3I is commercial specification grade.
9) Will the Eaton 1303-7W fit a standard wall box and a decorator plate?
It mounts flush in a standard wall box with the usual strap and 6-32 mounting screws, and it takes a standard toggle-opening wall plate, not a decorator/rocker opening plate. Plates are a separate order.
10) Can I use the Eaton 1303-7W to switch a ceiling fan motor?
Yes, within its 15A 120V rating. Fan and motor control are among the load types it is rated for, so it works as a wall switch for a fan or small motor load. It controls on/off only, so fan speed needs a separate speed control.
11) What should be specified instead of the Eaton 1303-7W for a heavy-traffic commercial or industrial opening?
The Eaton 1303-7W is a 15A, 120V white toggle switch suited to residential and light commercial lighting circuits. For higher-duty specification work, the Pass & Seymour PS20AC3W is an industrial extra heavy duty specification grade toggle switch in white, and the Leviton 1201-2I is an extra heavy-duty industrial/specification grade toggle switch in ivory. Both are rated at specification grade rather than the general-purpose build of the Eaton, so confirm the pole configuration you need before substituting.
12) Which toggle switch adds a pilot light where the Eaton 1303-7W does not have one?
The Eaton 1303-7W is a plain 15A, 120V 3-way toggle with no indicator. Where the fixture is out of sight and crews need visual confirmation the circuit is energized, the Leviton 1201PLC is an industrial grade pilot light toggle switch, 1-pole, 120V. It shares the 120V rating but is a single-pole device, so it cannot replace a 3-way leg.
13) Will the white Eaton 1303-7W match other white devices already in the building?
The 1303-7W housing is white, the standard toggle color used alongside white receptacles and plates. It is sold in white only under this model number; if your building is standardized on ivory, the Pass and Seymour CS20AC3I is an ivory toggle option.
14) What is the exact Eaton part number to order for a white 15A 3-way toggle?
Order Eaton 1303-7W. That is the manufacturer part number for the white, 15A, 120V, 3-way flush toggle switch.
15) What is a simpler single-location alternative to the Eaton 1303-7W for a basic 15A lighting circuit?
If only one switch location is needed, the 3-way wiring of the Eaton 1303-7W is unnecessary. The Pass & Seymour 660 Trademaster is a grounding toggle switch, and the Bryant 4801W is a single-pole 15A 277V AC toggle switch in white that keeps the same white toggle appearance. Both switch from a single point rather than two.
