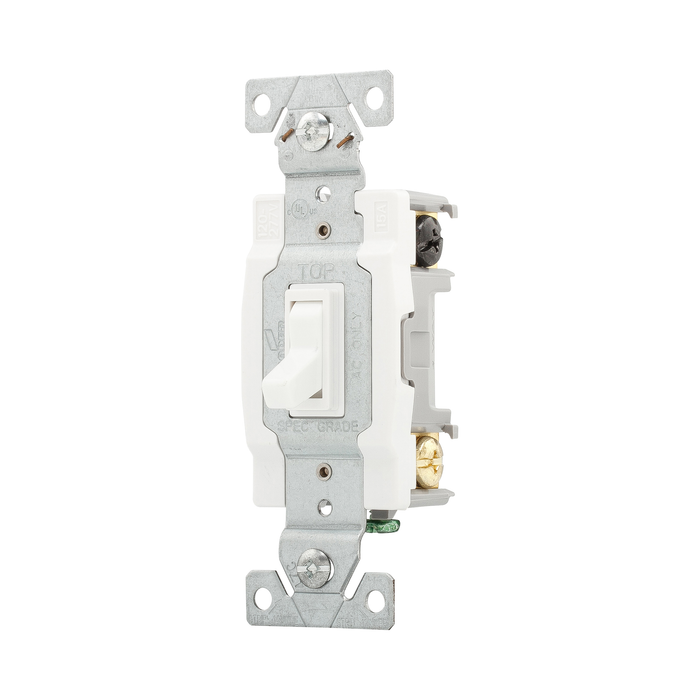

Eaton Four-Way Grounding Toggle Switch, 15A 120V, White

Eaton Four-Way Grounding Toggle Switch, 15A 120V, White

(No reviews yet) Write a Review

Model: 1242-7W-BOX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$8.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Four-Way Grounding Toggle Switch, 15A 120V, White

The Eaton Four-Way Grounding Toggle Switch is a residential-grade wall switch engineered for reliable multi-location lighting control. Rated 15A at 120V and molded from durable polycarbonate, this toggle switch accepts #14-10 AWG allowable wire size through side and push wiring, and it carries cULus Listing along with NAFTA compliance for code-compliant installations. Its four-way switch configuration, two-pole design, and grounding connector type make it a dependable choice for residential switching circuits where a fixture must be controlled from three or more locations. Finished in clean white, it is designed for straightforward wall mounting in homes, apartments, and light commercial spaces.

Key Features

  • Amperage & Voltage Rating: Rated 15A at 120V for dependable residential switching performance.
  • Four-Way Switch Type: Number of ways is Four-way, enabling control of a fixture from three or more switch locations in a single circuit.
  • Grounding Connector Type: Grounding connector type supports safe, code-compliant wiring practices for residential and light commercial use.
  • Durable Polycarbonate Construction: Molded polycarbonate body resists impact, heat, and everyday wear for long service life.
  • Side and Push Wiring: Side and push wiring method accepts #14-10 AWG allowable wire size, giving installers flexibility in the field.
  • Two-Pole Design: Two-pole switching configuration suited to standard residential circuits.
  • Wall Mounting: Designed for standard wall mounting, with special features including box compatibility for straightforward rough-in and finish work.
  • Clean White Finish: White color finish blends with most wall plates, trim, and interior decor for a clean, finished look.

Certifications & Compliance

  • cULus Listed
  • NAFTA Compliant

Technical Specifications

  • Voltage Rating: 120V
  • Special features: Box
  • Department: Electrical

Typical Applications

  • Residential Electrical Wiring
  • Multi-Location Lighting Control
  • Wall-Mounted Switch Installations
  • New Construction and Remodel Projects
  • Bedroom, Hallway, and Stairway Switching
  • Light Commercial Interior Wiring

Why Eaton?

Eaton builds this four-way toggle switch with a durable polycarbonate housing and a grounding connector type for safe, long-lasting performance in residential applications. Backed by cULus Listing and NAFTA compliance, it delivers the code-compliant reliability that electrical professionals and homeowners expect from Eaton residential wiring devices. Rated for 15A at 120V and compatible with #14-10 AWG wire through side and push wiring, this switch is a practical, trustworthy choice for any four-way switching application.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Number Of Poles:
Two-pole
Product Width:
.88 in
Mounting Method:
Wall
Amperage Rating:
15A
Voltage Rating:
120V
Product Color:
White
Wiring Method:
Side and push
Product Length/Depth:
1.31 in
Special Features:
Box
Application:
Residential
Product Height:
3.28 in
Product Type:
4-Way Toggle Switch
Product Material:
Polycarbonate
Allowable Wire Size:
#14-10 AWG
Number of ways:
Four-way
Switch Classification:
Four-way
Compliances:
NAFTA
Connector Type:
Grounding
Certifications:
cULus Listed
Department:
Electrical
Configuration:
Four-Way
Listing:
cULus
Pack size (unit):
100
Product Group:
Wiring Devices
Product Subgroup:
Toggle Switches
Product Length:
1.31 in
Product Weight:
0.19 lb

Eaton 1242-7W-BOX – Frequently Asked Questions

1) Can I control one light from three locations with the Eaton 1242-7W four-way switch?
That is exactly what a four-way switch is for, but it never works alone. The Eaton 1242-7W is a four-way device, so it goes in the middle of the run and gets wired between two three-way switches. Two locations only needs a pair of three-ways with no four-way at all. For four locations, use two three-ways at the ends and two four-ways in between.
2) What wire gauge does the Eaton 1242-7W toggle switch accept, and can I backwire it?
It takes #14-10 AWG and offers both side terminals and push-in (back) wiring, so 14/2 and 12/2 branch circuits both land fine. Push-in is quicker on a long trim-out; side screws are what most inspectors prefer on 12 AWG.
3) Is the Eaton four-way toggle switch rated for a 20 amp circuit?
No. It is rated 15A at 120V, so it belongs on a 15 amp lighting circuit. If your panel schedule shows a 20 amp branch, move to a 20 amp device such as the Pass & Seymour PS20AC3W specification grade toggle in white or the Leviton 1221 at 20A, 120/277V.
4) My circuit is 277V lighting. Can I use the Eaton 1242-7W-BOX, or do I need something else?
The Eaton 1242-7W-BOX carries a 120V rating, so it is not the device for a 277V branch. For 277V toggles, the Bryant 4801W is a 4-Series single-pole 15A 277V AC toggle in white, and the Leviton 1221 and 1221-2KL are rated 20A at 120/277V. All three are single-pole devices.
5) What should I use instead of the Eaton 1242-7W-BOX four-way toggle switch if the fixture is only controlled from one location?
The Eaton 1242-7W-BOX is a four-way switch, which is the middle switch in a circuit controlled from three or more locations. For a single-location circuit you want a single-pole switch: the Pass & Seymour 660G Trademaster grounding toggle switch is a grounding single-pole style device in brown satin thermoplastic, and the Pass & Seymour 663LAG TradeMaster grounding toggle switch is the light almond version. If you want white to match, the Pass & Seymour PS20AC3W is a white 20A specification grade toggle switch.
6) I need a heavier-duty toggle switch than the Eaton 15A residential device for a commercial corridor. What are my options?
The Eaton 1242-7W-BOX is rated 15A at 120V and is catalogued for residential application. For heavier traffic, the Leviton 1221 is an extra heavy-duty industrial specification grade SPST toggle rated 20A at 120/277V, the Leviton 1221-2KL is an extra heavy-duty spec grade 1-pole toggle at 20A 120/277V, and the Pass & Seymour CS20AC3I is a commercial 20A specification grade toggle in ivory. Note these are single-pole devices, so they replace the end switches in a circuit, not the four-way middle switch.
7) Is the Leviton 1221 a direct replacement for an Eaton 1242-7W-BOX four-way switch?
No. The Leviton 1221 is an SPST single-pole toggle switch rated 20A at 120/277V, so it has one common and one traveler-free load terminal. The Eaton 1242-7W-BOX is a four-way, two-pole device wired between the two three-way switches with four traveler conductors. Swapping a single-pole switch into a four-way position will leave the circuit unable to switch from every location.
8) Is this a residential grade switch or a spec grade device for a commercial job?
Residential grade, with a polycarbonate body and cULus Listing. Apartments, homes and light commercial interiors are its lane. For corridors, schools or anywhere with heavy daily switching, the comparable spec grade options are the Pass & Seymour CS20AC3I commercial 20A, the PS20AC3W industrial extra heavy duty, or the Leviton 1221-2KL extra heavy-duty spec grade.
9) How many switches come in a box of the Eaton 1242-7W?
They ship 100 to a box, which is how most electricians buy them for a multifamily or tract rough-in. If you need one or two for a service call, that quantity is worth knowing before you order.
10) Does the Eaton four-way toggle switch have a ground screw?
Yes, it is a grounding-type device, so the equipment ground lands on the switch itself rather than relying on the yoke and box alone. That matters in plastic boxes and on any inspection where a bonded device is called out.
11) Will the Eaton 1242-7W fit a standard single-gang box and a standard toggle wall plate?
It is a standard wall-mount toggle body measuring 3.28 by 1.31 by .88 inches, so it drops into normal device boxes and takes a standard toggle-opening plate. Wall plates are not included, so add them to the order.
12) I need a toggle switch with a pilot light for a basement or attic fixture instead of the plain Eaton white toggle. What is available?
The Eaton 1242-7W-BOX is a plain white polycarbonate toggle with no indicator. For a lighted device, the Leviton 1201PLC is an industrial grade pilot light toggle switch, 1-pole, 120V, and the Leviton 1221-2L is an industrial grade pilot light toggle rated 20A at 120/277V AC, 1-pole. Both are single-pole, so they suit a one-location circuit rather than a four-way run.
