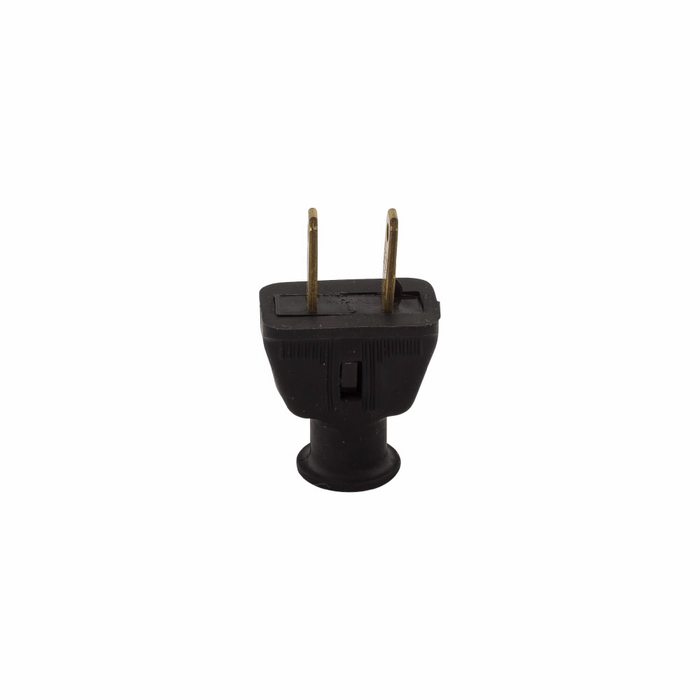

Eaton 183BK-BOX Straight Blade Plug, Black Thermoplastic, 15A 125V

Eaton 183BK-BOX Straight Blade Plug, Black Thermoplastic, 15A 125V

(No reviews yet) Write a Review

Model: 183BK-BOX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 183BK-BOX Straight Blade Plug, Black Thermoplastic, 15A 125V

The Eaton 183BK-BOX Straight Blade Plug is a commercial-grade, two-pole, two-wire, non-grounding plug built for reliable connections in light-duty cord applications. Rated 15A at 125V, this NEMA 1-15P configuration accepts #18-10 AWG conductors and features a durable black thermoplastic housing paired with brass contact blades for long-lasting conductivity. Designed for back-wire, screw-terminal installation, this plug is a straightforward, cost-effective solution for commercial cord-and-plug assemblies where a grounding conductor is not required.

Key Features

  • Wire Range: Accepts #18-10 AWG conductors for compatibility with a variety of commercial cord sets.
  • Amperage & Voltage Rating: Rated 15A at 125V for standard commercial straight-blade applications.
  • Configuration: NEMA 1-15P two-pole, two-wire, non-grounding plug design.
  • Termination: Back-wire, screw-terminal connection for a secure, repeatable wire attachment.
  • Durable Construction: Black thermoplastic housing with thermoplastic rubber elements resists wear in commercial-use settings.
  • Brass Contact Blades: Brass blades measuring 0.328" diameter provide dependable electrical contact.
  • Commercial Grade: Built to commercial specification for use in demanding cord-connection applications.

Technical Specifications

  • Wire Range: #18-10 AWG
  • Amperage: 15A
  • Voltage: 125V
  • Configuration: NEMA 1-15P, Two-Pole, Two-Wire, Non-Grounding
  • Termination: Back Wire, Screw
  • Blade Diameter: 0.328"
  • Materials: Thermoplastic housing, Thermoplastic Rubber, Brass contacts
  • Color: Black

Typical Applications

  • Commercial Cord-and-Plug Assemblies
  • Light-Duty Equipment Cord Replacement
  • Non-Grounding Straight Blade Cord Connections
  • Commercial and Facility Maintenance Repairs

Why Eaton?

Eaton engineers its straight blade plugs with commercial-grade thermoplastic housings and brass contact blades to deliver dependable, long-lasting performance in everyday cord-connection applications. The 183BK-BOX combines a secure back-wire screw termination with a NEMA 1-15P non-grounding configuration, giving electrical professionals a reliable, code-appropriate option for 15A, 125V commercial installations.

Manufacturer Resources

Product Specs

list_batch:
EAT-20260924
Product Type:
Straight Blade Plug
Voltage Rating:
125V
Amperage Rating:
15A
Configuration:
2-Pole, 2-Wire, Non-Grounding
Connection Type:
Back Wire, Screw
Department:
Electrical
Product Subgroup:
Plugs & Connectors
Product Material:
Thermoplastic
Product Color:
Black
Product Size:
328"
Product Group:
Wiring Devices
Product Weight:
0.038 lb
Product Width:
1.17 in
Product Height:
1.98 in
Product Length:
0.73 in
Number Of Poles:
Two-pole

Eaton 183BK-BOX – Frequently Asked Questions

1) Will the Eaton 183BK-BOX plug work on a three-wire grounded cord?
No. The 183BK-BOX is a 2-pole, 2-wire non-grounding plug in the NEMA 1-15P configuration, so it has two blades and no ground pin. There is no terminal for an equipment grounding conductor. If the cord you are repairing has a green ground wire, or the equipment requires a ground path, you need a NEMA 5-15P grounding plug instead.
2) What wire gauge does the Eaton 183BK-BOX straight blade plug accept?
It takes #18 through #10 AWG conductors, which covers typical 18/2 and 16/2 light-duty cord sets right up through 10 AWG. Wires land on screw terminals with a back-wire connection, so you strip and clamp rather than form loops around the posts.
3) Can I use a 15A 125V non-grounding plug to replace a two-prong lamp or appliance cord end?
That is exactly what the 183BK-BOX is for. It is rated 15A at 125V on a standard 120V branch circuit and is sold for commercial cord-and-plug assemblies and light-duty equipment cord replacement where no grounding conductor is present. Do not use it to replace a three-prong plug on grounded equipment.
4) Is the Eaton 183BK-BOX polarized, and does that matter for how I wire it?
It is a NEMA 1-15P two-wire device, so wire the hot (black or smooth-jacket) conductor and the neutral (white or ribbed) conductor to their matching screw terminals and keep polarity consistent with the equipment you are feeding. There is no third terminal, so nothing goes to ground.
5) What are the blades on the Eaton 183BK-BOX made of, and will they hold up in a receptacle that gets plugged and unplugged a lot?
The contact blades are brass at 0.328 inch, housed in a black thermoplastic body with thermoplastic rubber elements. Brass blades in a commercial-grade body are what a facility maintenance crew wants for repeated cord connections, rather than a residential plated-steel plug.
6) What is the Eaton part number to order for this black 15A two-wire plug?
Order Eaton 183BK-BOX. One part number covers it, black thermoplastic, 15A 125V, NEMA 1-15P non-grounding, with no finish or size options to specify.
