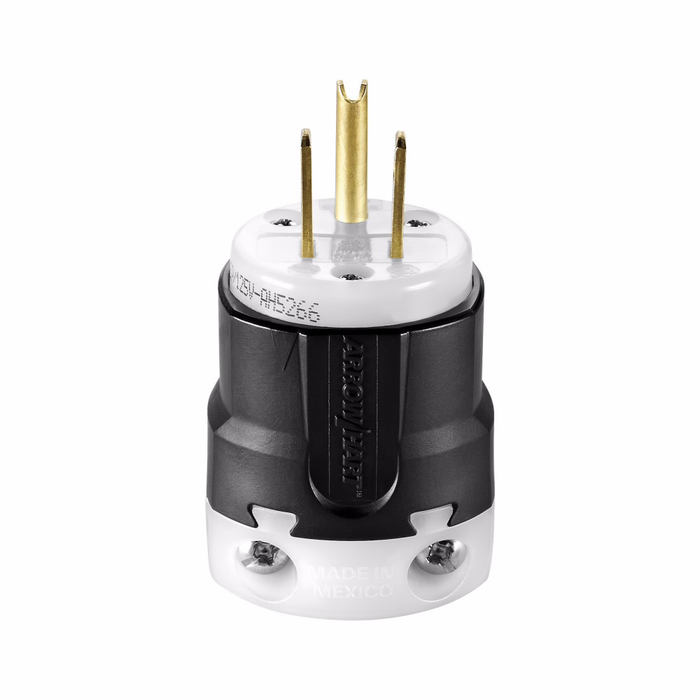

Eaton Arrow Hart Ultra Grip Straight Blade Plug, 15A 125V Industrial Grade

Eaton Arrow Hart Ultra Grip Straight Blade Plug, 15A 125V Industrial Grade

(No reviews yet) Write a Review

Model: AH5266

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Arrow Hart Ultra Grip Straight Blade Plug, 15A 125V Industrial Grade

The Eaton Arrow Hart Ultra Grip Straight Blade Plug is an extra heavy-duty industrial specification grade plug built for demanding commercial and industrial power connections. Configured as a NEMA 5-15P two-pole, three-wire grounding plug rated 15A at 125V, it features brass contacts, a nylon face and body, and a secure back-wire screw connection for #18-#12 AWG conductors. The rugged nylon housing and cULus Listed, RoHS Compliant construction make it a dependable choice for cord sets and portable equipment wiring on job sites, in facilities, and on the plant floor.

Key Features

  • NEMA Configuration: 5-15P two-pole, three-wire grounding configuration for standard 15A 125V circuits.
  • Durable Construction: Nylon face and body paired with brass contacts for long-lasting, corrosion-resistant performance.
  • Back-Wire Screw Connection: Screw-terminal back-wire termination accepts #18-#12 AWG conductors for a secure, reliable connection.
  • Electrical Rating: Rated 15A at 125V for dependable industrial and commercial power delivery.
  • Extra Heavy-Duty Industrial Grade: Meets extra heavy-duty industrial specification grade requirements for demanding environments.
  • Cord Range: Accommodates cords from 0.33" to 0.66" in diameter.
  • Straight Body Design: Straight blade, straight body style for straightforward cord and cable assembly.
  • Two-Pole, Three-Wire Grounding: Provides a grounded connection for added safety on portable and fixed equipment.
  • Finish: Black nylon housing.

Certifications & Compliance

  • cULus Listed
  • RoHS Compliant

Technical Specifications

  • Warranty: Refer to warranty document.
  • Number of wires: 3

Typical Applications

  • Industrial and Commercial Power Connections
  • Portable Cord Sets and Extension Cords
  • Heavy-Duty Equipment and Machinery Wiring
  • Manufacturing and Warehouse Facilities
  • Renovation and New Construction Electrical Work

Why Eaton?

Eaton's Arrow Hart line delivers extra heavy-duty, industrial specification grade devices engineered for reliable, code-compliant performance. With brass contacts, a rugged nylon housing, and cULus Listed, RoHS Compliant construction, this straight blade plug is built to withstand demanding industrial use while providing a secure back-wire connection professionals can trust on the jobsite.

Manufacturer Resources

Product Specs

Number Of Poles:
Two-pole
Contact Material:
Brass
Product Width:
2.59 in
Voltage Rating:
125V
Amperage Rating:
15A
Device Grade:
Extra heavy-duty industrial specification grade
Product Color:
Black
Certifications:
cULus Listed
Connection Type:
Screw
Nema Configuration:
5-15P
Product Length/Depth:
2.23 in
Application:
Industrial
Wiring Method:
Back wire
Face/body material:
Nylon
Product Height:
2.1 in
Product Type:
Straight Blade Plug
Product Material:
Nylon
Design Type:
Straight blade
Allowable Wire Size:
#18-12 AWG
Cord Range:
0.33-0.66" in diameter
Warranty:
Refer to warranty document.
Receptacle Type:
Two-pole, three-wire, grounding
Packaging Type:
Core pack
Style Type:
Straight body
Compliances:
RoHS Compliant
Number Of Wires:
3
Device Type:
Plug
Department:
Electrical
Listing:
cULus
Grade:
Industrial Specification Grade
Product Group:
Wiring Devices
Product Subgroup:
Plugs & Connectors
Product Weight:
0.17 lb
Product Length:
2.23 in

Eaton AH5266 – Frequently Asked Questions

1) Will the Eaton Arrow Hart AH5266 plug fit 12/3 SJOOW cord?
The AH5266 takes cord from 0.33 to 0.66 inch outside diameter, and the terminals accept #18 through #12 AWG conductors. A 12/3 SJOOW jacket typically lands inside that range, so measure the jacket OD before you cut. If your cord is fatter than 0.66 inch, this clamp won't close on it properly and you need a larger-body plug.
2) Is the Arrow Hart AH5266 a standard 5-15P plug for a regular 120V outlet?
Yes. It's a NEMA 5-15P, two-pole three-wire grounding plug rated 15A at 125V, which is the standard grounded 120V cord plug. Three conductors land on it: hot, neutral, and ground.
3) Can I use the AH5266 on a hospital or patient care circuit?
No. The AH5266 is an industrial specification grade device, not hospital grade, so it carries no green dot and shouldn't go on patient care equipment. For that, Bryant's 8266T is a hospital grade NEMA 5-15P plug, and Bryant's 8395T is the hospital grade version in 5-20P if your equipment draws 20A.
4) I need a 250V plug, not 125V. Is this one usable?
No. The AH5266 is rated 125V with a 5-15P blade pattern, which won't mate with a 250V receptacle. For 250V work, the Leviton 5666-C is a 3-wire 2-pole industrial grade straight blade plug rated 250V single phase, and the Leviton 931-E is a commercial grade 250V straight blade plug in 30/50A.
5) What is the closest equivalent to the Eaton Arrow Hart AH5266 plug from another manufacturer?
The Pass & Seymour PS5266X is the nearest match. It is a 15A 125V extra-hard use spec-grade plug with a nylon housing, the same rating and housing material class as the AH5266, which is a NEMA 5-15P 15A 125V industrial specification grade plug with a nylon face and body. The main visible difference is color: the Eaton is black, while the Pass & Seymour carries a white face.
6) What should I use instead of the AH5266 if my equipment draws 20 amps?
The AH5266 is rated 15A at 125V, so it is not the right device for a 20A cord cap. The Pass & Seymour PS5366SSAN is a 20A 125V straight blade plug; note it is an angled body, where the Arrow Hart is a straight body style.
7) How do the wires terminate on the AH5266 plug, screws or push-in?
Screw terminals, back-wired. You strip the conductor, land it under the terminal screw on the back of the device, and torque it down. No push-in or clamp-only termination, and no soldering.
8) Is this Arrow Hart plug tough enough for plant floor and jobsite cord sets?
It's built to extra heavy-duty industrial specification grade, with a nylon face and body and brass contacts. Nylon resists impact and chemical splash better than thermoplastic residential plugs, which is why this style gets used on portable tool cords, extension sets, and machinery leads in manufacturing and warehouse work.
9) Is the Eaton Arrow Hart AH5266 listed and RoHS compliant for a spec submittal?
It's cULus Listed and RoHS Compliant, so it covers both US and Canadian listing on a single device and clears RoHS language on institutional and government specs.
10) Is the AH5266 suitable for a wet or washdown location?
The AH5266 is a nylon-bodied cULus Listed industrial plug, but it is not a watertight device. For washdown or wet locations, the Bryant 8666TSP is a watertight hospital-grade plug in the NEMA 6-15P configuration; because it is 6-15P rather than 5-15P, it will not mate with a standard 125V receptacle.
11) The AH5266 looks like a fit but my cord is larger than 0.66 inch. What else works?
The AH5266 accepts cord diameters from 0.33 to 0.66 inch with #18 to #12 AWG conductors, so a heavier cord will not seat properly. Step up to a larger-configuration device such as the Bryant 7516NC, an NM10-50P series rubber plug, and confirm the cord range against the circuit you are terminating.
12) What model number do I order for the Eaton Arrow Hart Ultra Grip 15A plug?
Order Eaton part AH5266. That's the single configuration for this plug, black nylon, 5-15P, and it ships as a core pack.
13) Is there a commercial grade alternative if I do not need the extra heavy-duty industrial build of the AH5266?
Leviton's commercial grade cord plugs are the lighter-duty tier. The Leviton 275-E is a commercial grade 4-wire 3-pole straight blade angle plug and the Leviton 931-E is a commercial grade 3-wire 2-pole 250V 30/50 amp plug. Both differ from the AH5266 in configuration, so match the pole and wire count and the circuit rating before you substitute.
14) What is the difference between the Arrow Hart AH5266 and the Pass & Seymour MaxGrip M3 PS5965Y?
Both are nylon cord plugs. The AH5266 is a black NEMA 5-15P 15A 125V industrial specification grade device with brass contacts and a back-wire screw termination. The PS5965Y is a MaxGrip M3 series nylon cord plug in yellow, a high-visibility choice where crews need to spot the cord end on a floor or jobsite.
