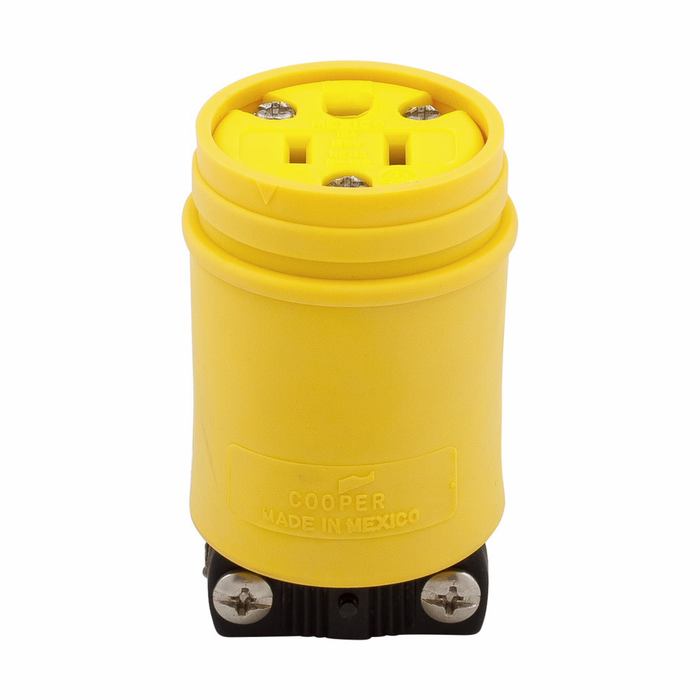

Eaton Arrow Hart Severe Duty Straight Blade Connector, 15A 125V, NEMA 5-15R

Eaton Arrow Hart Severe Duty Straight Blade Connector, 15A 125V, NEMA 5-15R

(No reviews yet) Write a Review

Model: 1547

In Stock (leaves warehouse same day if ordered before 3pm ET)

$35.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Arrow Hart Severe Duty Straight Blade Connector, 15A 125V, NEMA 5-15R

The Eaton Arrow Hart severe duty straight blade connector is a two-pole, three-wire grounding connector rated 15A at 125V, built to NEMA 5-15R configuration for demanding industrial applications. Constructed with a thermoplastic body, nylon face, and nickel-plated brass contacts, this connector is engineered for complex, corrosive environments where standard-duty devices fall short. It is cULus Listed and accepts an allowable wire size of #14-8 AWG, with a back-wire screw connection for secure, code-compliant terminations on cordsets and portable equipment.

Key Features

  • Amperage & Voltage Rating: Rated 15A at 125V for reliable performance on industrial branch circuits and portable power cords.
  • NEMA Configuration: Two-pole, three-wire grounding connector built to NEMA 5-15R configuration for standard straight blade compatibility.
  • Durable Construction: Thermoplastic body with a nylon face and back for impact resistance and long service life in industrial settings.
  • Nickel-Plated Brass Contacts: Corrosion-resistant contact material sustains reliable conductivity in harsh, corrosive environments.
  • Back-Wire Screw Connection: Screw-terminal, back-wire connection method accepts #14-8 AWG wire for a secure, vibration-resistant termination.
  • Cord Range: Accommodates cords from 0.38"-1" in diameter, suiting a wide range of cordset assemblies.
  • Severe Duty Grade: Complex-environment device type designed for corrosive and severe-duty industrial conditions.
  • Visual Identification: Yellow housing color for quick identification on job sites and equipment.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Warranty: Refer to warranty document.
  • Number of wires: 3

Typical Applications

  • Industrial and Commercial Electrical Connections
  • Portable Power Cord and Cordset Assemblies
  • Corrosive and Complex Environment Installations
  • Severe Duty and Wash-Down Equipment Wiring
  • Extension Cord and Temporary Power Connections

Why Eaton?

Eaton Arrow Hart devices are engineered with nickel-plated brass contacts, corrosion-resistant thermoplastic and nylon construction, and cULus Listed performance to withstand severe-duty industrial demands. This connector delivers dependable, code-compliant power connections for professionals who need equipment that holds up in corrosive, complex environments.

Manufacturer Resources

Product Specs

Number Of Poles:
Two-pole
Contact Material:
Nickel plated brass
Product Width:
1.69 in
Voltage Rating:
125V
Amperage Rating:
15A
Device Grade:
Severe duty
Product Color:
Yellow
Certifications:
cULus Listed
Connection Type:
Screw
Nema Configuration:
5-15R
Product Length/Depth:
1.69 in
Application:
Industrial
Wiring Method:
Back wire
Face/body material:
Nylon
Environmental Conditions:
Corrosive
Product Height:
2.78 in
Product Material:
Nylon
Design Type:
Straight blade
Product Type:
Straight Blade Connector
Allowable Wire Size:
#14-8 AWG
Cord Range:
0.38-1" in diameter
Environmental resistance:
Corrosion resistant
Warranty:
Refer to warranty document.
Receptacle Type:
Two-pole, three-wire, grounding
Packaging Type:
Core pack
Style Type:
Straight body
Number Of Wires:
3
Device Type:
Connector
Department:
Electrical
Configuration:
NEMA 5-15R
Listing:
cULus
Grade:
Severe Duty
Product Group:
Wiring Devices
Product Subgroup:
Plugs & Connectors

Eaton 1547 – Frequently Asked Questions

1) Will the Eaton Arrow Hart 1547 connector fit my SJOOW cord, and what cord diameters does it clamp?
The 1547 severe duty connector accepts cords from 0.38 to 1 inch in outside diameter, which covers most 14/3 through 8/3 portable cord builds. Terminations are screw-type, back wired, and the terminals take #14 through #8 AWG conductors. Measure your jacket OD first: anything under 0.38 inch will not clamp properly and anything over 1 inch will not seat in the cord grip.
2) What plug does a NEMA 5-15R connector accept?
NEMA 5-15R is the standard 15A 125V straight blade grounding pattern, so the Eaton Arrow Hart 1547 mates with any NEMA 5-15P plug, the ordinary three-prong 120V cord cap found on tools and equipment. It is two-pole, three-wire grounding, rated 15A at 125V. It will not accept a 20A 5-20P plug with the T-slot blade.
3) Why pay for a severe duty connector instead of a standard rubber cord connector?
Severe duty is the grade here, and the difference is materials. The 1547 uses nickel plated brass contacts and a nylon face and body, both chosen for corrosive service. If the cordset lives in a wash-down bay, a plating shop, a food plant, or outdoors around chemicals, standard-duty contacts corrode and the connection heats. In a dry office or shop, a standard-duty device does the same electrical job.
4) Is the Eaton 1547 connector UL listed for a commercial inspection?
It is cULus Listed, meaning it carries both US and Canadian listing under the same mark, so it is acceptable for code-compliant cord and cordset terminations on either side of the border.
5) Can I use the Eaton 1547 as the female end of a shop-built extension cord?
That is exactly what it is for. It is a connector, the female body that goes on the load end of a cord, not a wall receptacle and not a plug. Pair it with a matching 5-15P cord cap on the supply end. Wiring is back wire with screw terminals, so you strip and land three conductors including ground.
6) Can I put the Eaton 1547 on a 20 amp circuit?
The connector itself is rated 15A at 125V, so the device and anything plugged into it must stay within 15 amps. It can be fed from a 20A branch circuit where the NEC permits a 15A receptacle on a 20A circuit, but do not use it as a 20A outlet. For a 20A cord end you need a 5-20R configuration instead.
7) How much space does the Eaton 1547 connector need where the cord drops?
The body measures 2.78 x 1.69 x 1.69 inches, a straight body shape rather than an angled one. Allow clearance beyond that for the cord to leave the back without a sharp bend, especially in a cable tray or a reel application.
