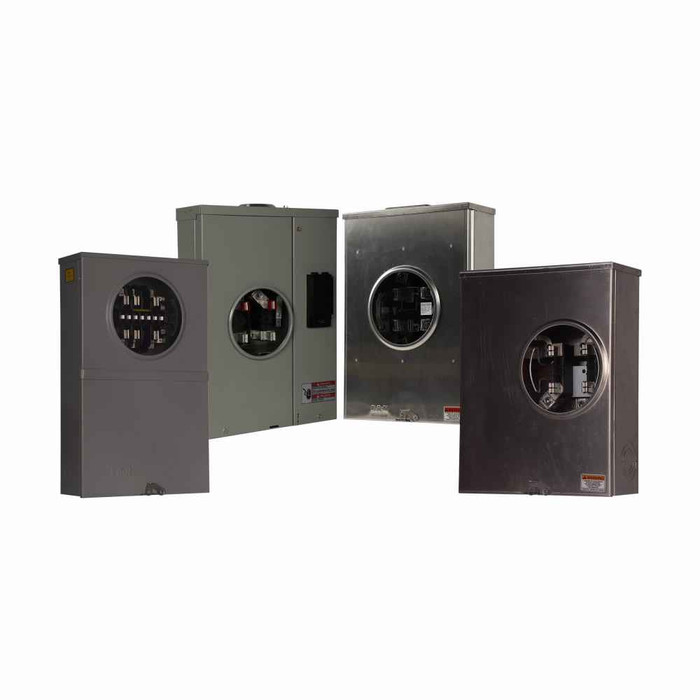

Eaton 200A Single-Phase Meter Socket with Lever Bypass and Barrel Lock

Eaton 200A Single-Phase Meter Socket with Lever Bypass and Barrel Lock

Professional Commercial & Residential Service Solution

The Eaton 200A Single-Phase Meter Socket delivers reliable electrical metering for commercial and residential applications. This UL Listed meter socket features a lever bypass mechanism with barrel lock security, four-jaw configuration, and ringless design for professional installations requiring 600V service capability.

Professional Features & Benefits

• 200A Service Rating: Handles substantial electrical loads for commercial and residential applications with reliable current capacity.
• Lever Bypass System: Enables safe meter removal and maintenance without service interruption for operational flexibility.
• Barrel Lock Security: Provides tamper-resistant protection and unauthorized access prevention for secure installations.
• Four-Jaw Configuration: Ensures secure meter connection and reliable electrical contact for consistent performance.
• UL Listed Certification: Meets rigorous safety and performance standards for code-compliant installations.
• 600V Rating: Accommodates high-voltage applications with professional-grade electrical capacity.
• Ringless Design: Simplifies installation and maintenance procedures while maintaining secure connections.

Technical Specifications

• Accessories: Barrel lock
• Amperage Rating: 200A
• Bypass: Lever
• Certifications: UL Listed
• Feed Type: Top/bottom
• Hub Type: Small opening
• Line: #6-350 kcmil
• Load: #6-350 kcmil
• Number Of Jaws: Four-jaw
• Number Of Sockets: 1
• Number Of Wires: Three-wire
• Phase: Single-phase
• Product Details: Single-position commercial or residential service
• Product Height: 19 in
• Product Length Depth: 4.94 in
• Product Weight: 26 lb
• Product Width: 10.5 in
• Security: Ringless
• Utility Approvals: CT : Eversource (Connecticut Light and Power Co./Nstar/PSC New Hampshire/Western Mass Electric)
• Voltage Rating: 600 V

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Service
• Residential Service Entrance
• Multi-Unit Properties
• Professional Offices
• Retail Establishments
• Light Industrial Facilities
• Utility Metering Installations

Why Choose Eaton Quality?

Eaton meter sockets deliver proven reliability with UL Listed certification and utility approvals including Eversource systems. The robust construction and professional-grade components ensure long-term performance in demanding commercial and residential service applications.
