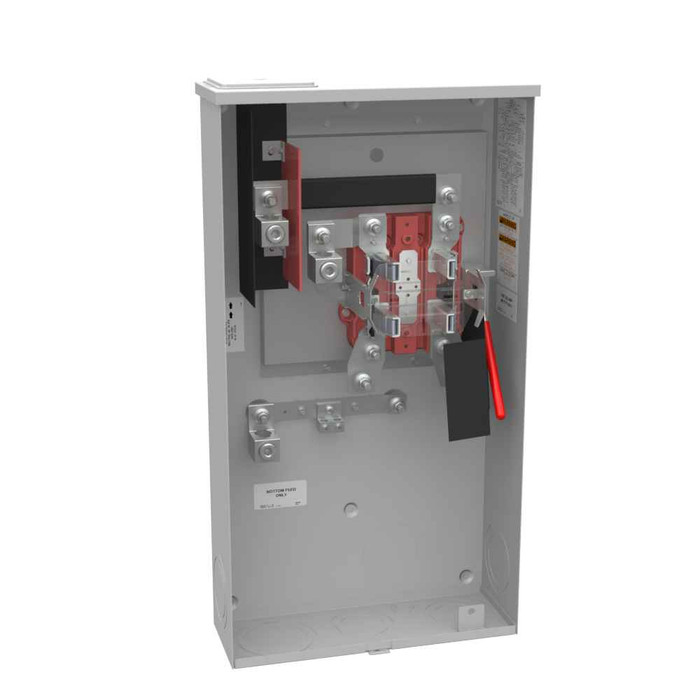

Milbank 320A 1-Phase Ringless Meter Socket with Lever Bypass and Barrel Lock Provision

Milbank 320A 1-Phase Ringless Meter Socket with Lever Bypass and Barrel Lock Provision

Professional Underground Service Metering Solution

The Milbank 320A 1-Phase Ringless Meter Socket delivers reliable electrical metering for underground service applications. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface-mount meter socket provides 320 continuous ampere capacity with lever bypass functionality and integrated barrel lock provision for enhanced security and operational flexibility.

Professional Features & Benefits

• 320 Continuous Ampere Rating: Handles high-capacity electrical loads for demanding residential and commercial applications with reliable performance.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption, improving operational efficiency.
• Barrel Lock Security: 7/8 inch knockout and angle bracket provision allows secure meter protection against unauthorized access.
• Type 3R Enclosure Rating: Weather-resistant construction protects internal components from outdoor environmental conditions.
• G90 Galvanized Steel Construction: Durable material with powder coat finish ensures long-term corrosion resistance and structural integrity.
• Underground Cable Entry: Designed specifically for underground service connections with appropriate wire range accommodation.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

• Amperage Rating: 320 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: 2 Barrel Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
• Load Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T32
• Product Height: 30 IN
• Product Length: 5.75 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.75L x 16W x30H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Single Mechanical
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 16 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Underground Service Connections
• Commercial Building Electrical Service
• Multi-Unit Residential Properties
• Professional Office Buildings
• Retail and Light Commercial Facilities
• Industrial Service Entrance Applications
• Municipal and Utility Infrastructure

Why Choose Milbank Quality?

Milbank meter sockets provide proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel material with powder coat finish ensures long-term durability, while the comprehensive wire range accommodation and professional mounting design deliver dependable performance for demanding electrical service applications.
