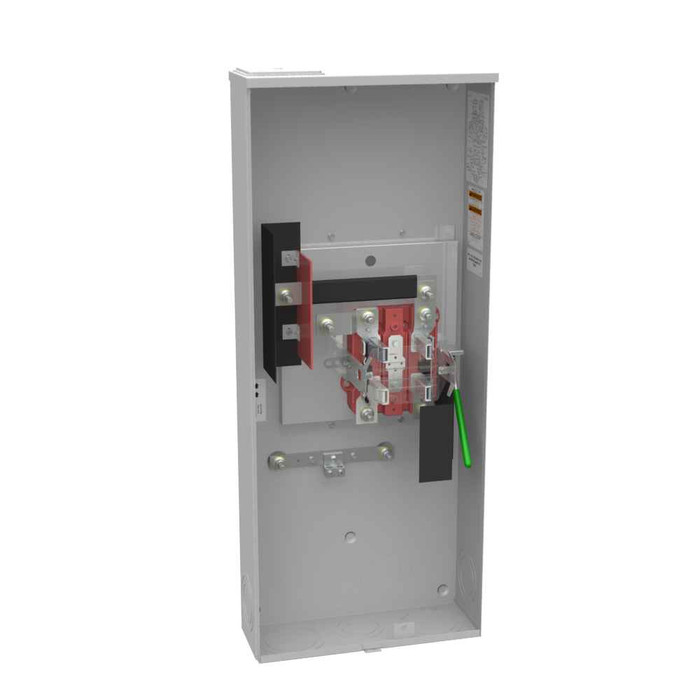

Milbank U4905-X 200A Ringless Lever Bypass Meter Socket | 4 & 5 Terminal | Large Closing Plate | Barrel Lock & K3/K2 Connector Option

Milbank 320A Ringless Lever Bypass Meter Socket with Large Closing Plate and Barrel Lock Provision

(No reviews yet) Write a Review

Model: U4905-X-K3-K2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,363.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 320A Ringless Lever Bypass Meter Socket with Large Closing Plate and Barrel Lock Provision

Professional single-phase metering solution with lever bypass capability

The Milbank 320A Ringless Lever Bypass Meter Socket delivers reliable single-phase electrical metering with professional bypass functionality. Constructed from G90 galvanized steel with powder coat finish and featuring glass polyester insulation, this UL Listed Type 3R meter socket provides 320 continuous ampere capacity at 600 volts AC. The lever bypass provision enables safe meter maintenance while the large closing plate and barrel lock provision enhance security and accessibility.

Professional Features & Benefits

  • 320 Continuous Ampere Rating: Handles high-capacity electrical loads with reliable performance for demanding applications
  • Lever Bypass Provision: Enables safe meter removal and maintenance without interrupting electrical service
  • G90 Galvanized Steel Construction: Provides superior corrosion resistance and long-term durability in outdoor environments
  • UL Listed Type 3R Rating: Meets stringent safety standards for outdoor installation and weather protection
  • Large Closing Plate Design: Facilitates easier installation and provides enhanced hub access for various conduit configurations
  • Barrel Lock Provision: 7/8 inch knockout and angle bracket enable secure utility meter protection
  • Flexible Wire Range Capacity: Accommodates line side conductors from 4 AWG to 600 kcmil and load side conductors up to 350 kcmil

Technical Specifications

  • Amperage Rating: 320 Continuous Ampere
  • Application: Meter Socket
  • Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
  • Load Side Wire Range: Two 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Height: 38.75 IN
  • Product Length: 5.75 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 5.75L x 16W x38.75H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 16 IN

Professional Applications

  • Residential High-Capacity Service Entrances
  • Commercial Building Electrical Metering
  • Multi-Unit Property Installations
  • Industrial Facility Power Distribution
  • Utility Service Upgrade Projects
  • Professional Electrical Contractor Applications

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability through UL Listed Type 3R certification and robust G90 galvanized steel construction with powder coat finish. The glass polyester insulation and professional-grade materials ensure long-term performance in demanding electrical applications, backed by comprehensive safety standards and quality manufacturing.

Manufacturer Resources

Product Specs

Amperage Rating:
320 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
Load Side Wire Range:
Two 6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Height:
38.75 IN
Product Length:
5.75 IN
Product Size:
5.75L x 16W x38.75H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
320
Product Width:
16 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Product Group:
Power Distribution

Milbank U4905-X-K3-K2 – Frequently Asked Questions

1) Does this Milbank socket include a main breaker or disconnect?
No. The U4905-X is a meter socket only, with no main breaker and no receptacles. Overcurrent protection has to come from the panel or disconnect you feed downstream of it, so budget separately for the service disconnect gear your inspector requires.
2) Can this Milbank meter socket be mounted outdoors on the side of a building?
Yes. It is UL Listed and Type 3R rated for outdoor rain-tight service, built from G90 galvanized steel with a powder coat finish and glass polyester insulation. Mounting is surface mount, so it fastens flat to the wall or a backboard.
3) Which Milbank U4905-X option do I order if the utility wants a 5th terminal?
Order U4905-X-5T9, the version with the 5th terminal at the 9 o'clock position. The plain U4905-X is the 4-terminal standard build. Two other configurations are offered: U4905-X-BLG with the barrel lock provision, and U4905-X-K3-K2 with the K3/K2 connector configuration. Utilities differ on 5th terminal position, so match the drawing they issued you.
4) Can I use this Milbank socket on a three-phase service?
No. The U4905-X is single phase, one phase only. A three-phase metering installation needs a three-phase socket with the correct terminal arrangement for that service, not this can.
5) How much wall space do I need for the Milbank U4905-X meter socket?
The enclosure measures 5.75 L x 16 W x 38.75 H inches. That 38-3/4 inch height is the number to check against your meter height requirement and any window, hose bib, or gas meter clearance on the wall before you set it.
6) What is the difference between a ringless meter socket and a ring-type one?
A ringless socket like the U4905-X has no separate sealing ring; the utility's cover plate slides over the meter and is sealed directly to the enclosure. Many utilities specify ringless and will reject a ring-type can, so confirm which style your serving utility requires before ordering. This one is ringless with a large closing plate at the hub opening.
7) Why does this Milbank socket have a lever bypass, and do I need it?
The lever bypass lets the meter be pulled and reinstalled without dropping power to the building, which is why most utilities require bypass on 320 amp class sockets. If your utility allows a non-bypass can, you do not need it, but a bypass socket can be installed where a plain one is accepted, not the other way around.
8) Does this meter socket accept a utility barrel lock?
Yes, through the barrel lock provision: a 7/8 inch knockout with an angle bracket. If your utility seals with barrel locks rather than wire seals, order the U4905-X-BLG configuration so the bracket is factory fitted.
9) Is the large closing plate on this socket for a hub, and is the hub included?
The hub opening is covered by a large closing plate, which is what you remove when you fit a conduit hub for overhead service. The plate itself is part of the enclosure; the hub sized to your service conduit is a separate item, so order it with the socket if you are going overhead rather than underground.
