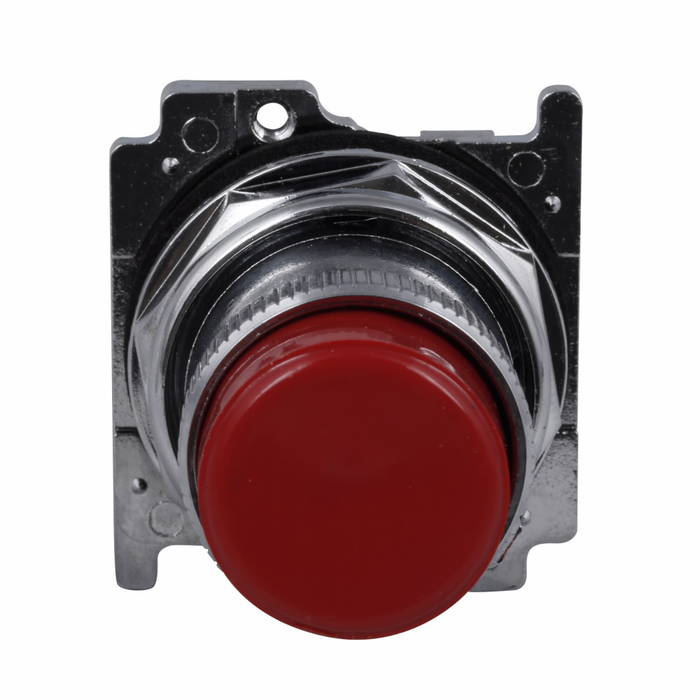

Eaton 10250T Heavy-Duty Roto-Push Operator, Red Actuator, NEMA 4X
The Eaton 10250T is a 30.5 mm Heavy-Duty Roto-Push Operator built for demanding industrial control panels. Featuring Cam 11 and a red actuator in a vertical mounting configuration, this operator is rated NEMA 3, 3R, 4, 4X, 12, and 13, making it suitable for indoor and outdoor environments exposed to dust, moisture, and washdown conditions. Backed by UL Listing and CE Marking, the 10250T delivers dependable, code-compliant performance for pushbutton control applications.
Key Features
- Trade Size: 30.5 mm Heavy-Duty operator body for industrial pushbutton stations.
- Actuator Color: Red actuator for clear visual identification on the panel.
- Mounting: Vertical mounting configuration for standard panel installation.
- Cam Configuration: Cam 11 for correct contact block actuation sequencing.
- Series: Eaton 10250T series Roto-Push operator.
- Environmental Rating: NEMA 3, 3R, 4, 4X, 12, and 13 rated for indoor, outdoor, and washdown-duty locations.
- Catalog Note: Not intended for Emergency Stop applications; select an appropriately rated E-Stop device where required.
Certifications & Compliance
- UL Listed
- CE Marked
- NEMA 3, 3R, 4, 4X, 12, 13 Rated
Technical Specifications
- Product Type: Pushbutton Operator
- Warranty: 1 year
Typical Applications
- Industrial Control Panels and Enclosures
- Machine Operator Interface Stations
- Outdoor and Wet-Location Equipment Controls
- Washdown and Food-Processing Environments
- Commercial and Industrial Electrical Installations
Why Eaton?
Eaton's 10250T Heavy-Duty Roto-Push Operator combines a rugged 30.5 mm construction with broad NEMA environmental ratings, UL Listing, and CE Marking to deliver reliable, code-compliant performance in demanding industrial settings. Its Cam 11 configuration and vertical mounting design support straightforward integration into standard control panel layouts, while the red actuator provides clear operator identification on the panel face.
Manufacturer Resources
Product Specs
- Performance Rating:
- NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
- Product Type:
- Pushbutton Operator
- Warranty:
- 1 year
- Catalog Notes:
- Not to be used for Emergency Stop application
- Mounting Method:
- Vertical
- Series:
- 10250T
- Compliances:
- CE Marked
- Certifications:
- UL Listed
- Department:
- Electrical
- Product Color:
- Red
- Configuration:
- Vertical Mount
- Listing:
- UL Listed
- Standards:
- NEMA 4X
- Product Group:
- Push Buttons
