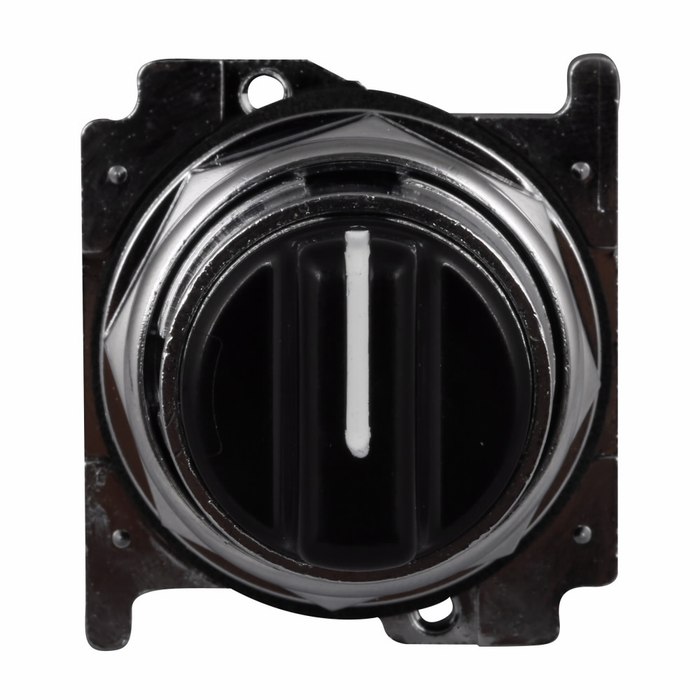

Eaton 10250T Heavy-Duty Selector Switch Operator
The Eaton 10250T is a heavy-duty selector switch operator engineered for 30.5 mm panel cutouts, featuring a Cam 2 mechanism with a 60° throw and three-position operation for precise control sequencing. Finished with a black actuator and non-illuminated for straightforward machine and panel control, this operator is rated NEMA 3, 3R, 4, 4X, 12, and 13, making it suitable for demanding indoor and outdoor industrial environments where dust, moisture, and washdown exposure are common. Part of Eaton's 10250T Series of heavy-duty operators, it integrates with compatible contact blocks and legend plates for building a complete pilot device control station.
Key Features
- Mounting Size: 30.5 mm panel cutout, the standard heavy-duty operator size used across Eaton's 10250T pilot device line for consistent panel layouts.
- Cam 2, 60° Throw: Precise rotational travel between positions for reliable, repeatable three-position selector switching in demanding duty cycles.
- Three-Position Operation: Supports three distinct switch positions, giving operators flexible control schemes such as off/hand/auto or low/off/high configurations.
- Non-Illuminated Design: Simple, durable actuator construction without integrated lighting, reducing complexity where illumination is not required.
- Black Actuator: Black actuator color for clear visual identification and consistent panel aesthetics alongside other 10250T Series operators.
- Heavy-Duty 30.5 mm Type: Heavy-duty construction rated for industrial-grade reliability and frequent actuation in production environments.
- Compact Footprint: Product width of 1.9 in, depth of 1.9 in, and height of 2 in for space-efficient panel and enclosure mounting.
- Multi-Environment NEMA Rating: Rated NEMA 3, 3R, 4, 4X, 12, and 13 for versatile use across indoor, outdoor, washdown, and dust/oil-tight applications.
Certifications & Compliance
- NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13 Rated
- CE Marked
- CSA Certified
Technical Specifications
- Number of positions: 3
- Product Type: Pushbutton Operator
- Warranty: 1 year
Typical Applications
- Industrial Control Panels and Machine Control Stations
- Three-Position Selector Switch Assemblies for Mode Selection (e.g., Off/Hand/Auto)
- Wet, Dusty, and Corrosive Environment Installations
- Outdoor and Wash-Down Duty Equipment
- OEM Equipment and Panel Builder Assemblies Requiring Heavy-Duty Operators
Why Eaton?
Eaton's 10250T Series heavy-duty selector switch operators are engineered for dependable performance in harsh industrial settings, backed by NEMA 3, 3R, 4, 4X, 12, and 13 ratings along with CE marking and CSA certification for verified quality and compliance. With robust 30.5 mm heavy-duty construction and a precise Cam 2, 60° throw mechanism, this operator delivers consistent, code-compliant three-position switching for professional electrical control applications.
Manufacturer Resources
Product Specs
- Illumination:
- Non-illuminated
- Product Width:
- 1.9 in
- Performance Rating:
- NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
- Throw type:
- 60 °
- Product Length/Depth:
- 1.9 in
- Number of positions:
- 3
- Product Height:
- 2 in
- Product Type:
- Selector Switch Operator
- Actuator color:
- Black
- Warranty:
- 1 year
- Product Category:
- Selector switch
- Series:
- 10250T
- Compliances:
- CE Marked
- NEMA rating:
- NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
- Certifications:
- CSA Certified
- Department:
- Electrical
- Product Color:
- Black
- Configuration:
- Three-Position
- Angle:
- 60°
- Standards:
- NEMA 3/3R/4/4X/12/13
- Listing:
- CSA Certified
- Product Group:
- Wiring Devices
