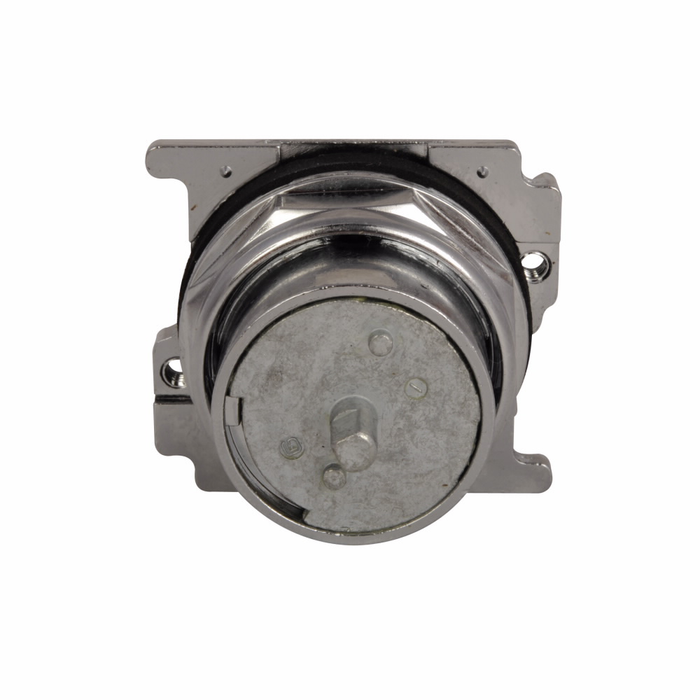

Eaton 10250T Heavy-Duty Selector Switch Operator, Cam 1, 60°

Eaton 10250T Heavy-Duty Selector Switch Operator, Cam 1, 60°

(No reviews yet) Write a Review

Model: 10250T4011

In Stock (leaves warehouse same day if ordered before 3pm ET)

$87.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 10250T Heavy-Duty Selector Switch Operator, Cam 1, 60°

The Eaton 10250T is a 30.5 mm Heavy-Duty selector switch operator built for demanding industrial control applications. This 2-position, non-illuminated operator uses a Cam 1 switching sequence with a 60° throw for reliable, repeatable actuation. Rated NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13, the 10250T is engineered to perform in indoor, outdoor, wash-down, and dust-tight environments where standard operators fall short.

Key Features

  • Operator Size: 30.5 mm Heavy-Duty format, the industry-standard size for Eaton 10250T Series control station operators.
  • Throw Type: 60° cam-actuated throw delivers a firm, positive transition between switch positions.
  • Cam Code: Cam 1 switching sequence matches compatible 10250T contact blocks for correct circuit staging.
  • Positions: 2-position selector switch operator for simple on/off or mode-select control.
  • Illumination: Non-illuminated design for straightforward selector applications without an indicating lamp.
  • Compact Footprint: 2 in product width, 2 in product length/depth, and 2.2 in product height for standard panel cutouts.
  • Environmental Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13 rated for use in wet, dusty, and wash-down locations.
  • Warranty: Backed by a 1 year manufacturer warranty.

Certifications & Compliance

  • CSA Certified
  • CE Marked
  • NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 Rated

Technical Specifications

  • Number of positions: 2
  • Product Type: Pushbutton Operator
  • Warranty: 1 year
  • Series: 10250T
  • Size: 30.5 mm
  • Cam code: Cam 1
  • Throw type: 60°
  • Illumination: Non-illuminated

Typical Applications

  • Industrial Control Panels and Enclosures
  • Machine Control Stations and Selector Switch Assemblies
  • Outdoor and Wash-Down Environment Installations
  • Dust-Tight and Corrosive-Location Equipment
  • Process Control and Automation Systems

Why Eaton?

Eaton's 10250T Series Heavy-Duty operators are CSA Certified and CE Marked, with NEMA 3, 3R, 4, 4X, 12, and 13 ratings that support demanding indoor and outdoor control environments. The Cam 1, 60° throw configuration ensures dependable, code-compliant switching for professional industrial control panel builds.

Manufacturer Resources

Product Specs

Illumination:
Non-illuminated
Product Width:
2 in
Performance Rating:
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Throw type:
60 °
Product Size:
30.5 mm
Product Length/Depth:
2 in
Number of positions:
2
Product Height:
2.2 in
Product Type:
Pushbutton Operator
Cam code:
Cam 1
Warranty:
1 year
Series:
10250T
Compliances:
CE Marked
NEMA rating:
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Certifications:
CSA Certified
Department:
Electrical
Angle:
60°
Listing:
CSA Certified
Product Group:
Motor Control & Automation
Product Subgroup:
Selector Switches

Eaton 10250T4011 – Frequently Asked Questions

1) What panel hole size does the Eaton 10250T4011 selector switch operator need?
It mounts in the standard 30.5 mm heavy-duty control station hole, the same opening used across the Eaton 10250T line. If your enclosure is already punched for 30.5 mm oiltight operators, this drops straight in. Panels punched for 22 mm operators will not take it without an adapter or a new cutout.
2) Does the Eaton 10250T4011 include contact blocks, or do I order those separately?
The 10250T4011 is the operator only, the 2-position, non-illuminated selector head with the 60 degree cam throw. Contacts are separate 10250T contact blocks that stack behind the operator, and you choose them to suit the circuit you are switching. Match them to the Cam 1 switching sequence so the circuits make and break in the order your control scheme expects.
3) Can this Eaton selector switch go in an outdoor or wash-down enclosure?
Yes. The 10250T4011 operator carries NEMA 3, 3R, 4, 4X, 12 and 13 ratings, which covers rain and sleet outdoors, hosedown and wash-down, dust-tight industrial interiors, and oil or coolant exposure. The 4X rating is the one that matters in corrosive or food-processing areas. The rating only holds if the enclosure it mounts in is rated to the same level and the operator gasket seats on a clean, flat panel face.
4) Is the Eaton 10250T4011 a two-position or three-position selector switch?
Two positions. If your control scheme needs hand/off/auto or forward/off/reverse, that is a three-position operator with a different cam code, not this part number. Ordering a two-position head for a three-position circuit leaves you without the center off.
5) Can I use this to replace an existing 10250T selector switch without repunching the panel?
Yes, provided the existing device is a 30.5 mm 10250T operator, which is the standard size for the series. Reuse the existing panel hole and, if the contact blocks are in good condition and wired to a Cam 1 two-position sequence, you can often swap just the operator head. Verify the old head's cam code and position count match, since a different cam will change which contacts close in each position.
6) What does Cam 1 with a 60 degree throw mean for how the selector switch behaves?
The cam code sets which contacts are made in each position, and the 60 degree figure is the angle the knob rotates between the two positions. Cam 1 on a two-position operator gives you a simple either/or selection, typical of a hand/off or run/stop mode select. The cam code has to match the contact block arrangement, so if you are replacing only one half of the assembly, keep Cam 1 with Cam 1.
7) Will the Eaton 10250T4011 fit behind the panel in a shallow enclosure?
Plan for roughly 2 in by 2 in of footprint and 2.2 in of height for the operator itself. Add depth for whatever contact blocks you stack on the back, since those are separate parts and each layer adds behind-panel projection. In a shallow wireway-style box, check clearance to the door and to adjacent devices before you lay out the cutouts.
8) Is this selector switch approved for use on a control panel going into a Canadian facility?
The 10250T4011 is CSA Certified and CE Marked, so it is acceptable for Canadian control panel builds and for equipment being shipped into the EU. Panel-level listing still depends on your overall assembly approval, but the operator itself is not the obstacle.
9) I need a selector switch with an indicating light. Is this the right part?
No. The 10250T4011 is a non-illuminated operator, so there is no lamp or lens in the head. If your drawing calls for an illuminated selector that lights up in a given position, you need an illuminated 10250T operator instead, which also requires the matching lamp and voltage.
