Eaton 30.5 mm Heavy-Duty Cam Selector Switch

Eaton 30.5 mm Heavy-Duty Cam Selector Switch

(No reviews yet) Write a Review

Model: 10250T3214

In Stock (leaves warehouse same day if ordered before 3pm ET)

$181.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 30.5 mm Heavy-Duty Cam Selector Switch

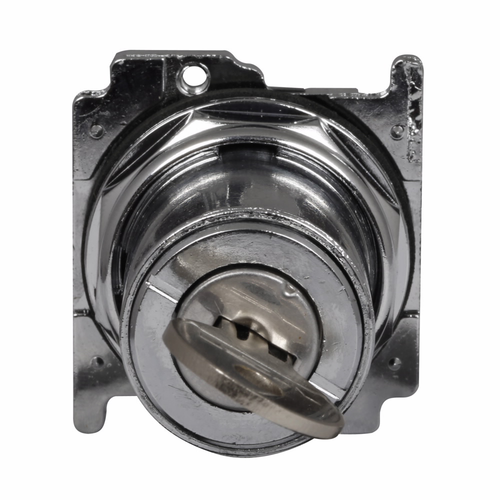

The Eaton 30.5 mm Heavy-Duty Cam Selector Switch is a key-operated control device built for demanding industrial and commercial control panel applications. Constructed to the 30.5 mm heavy-duty format, this switch features a 60° throw, 3 operating positions, and a Cam 3 cam code for precise, repeatable switching. It carries NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13 ratings, making it suitable for indoor, outdoor, washdown, and dust-tight enclosure applications where reliable, code-compliant performance is essential.

Key Features

  • Heavy-Duty 30.5 mm Format: Standard 30.5 mm heavy-duty actuator size for industrial control stations and operator panels.
  • Key-Operated Actuator: Key-operated design with key removal in the left and center positions for secure, tamper-resistant switching.
  • 60° Throw, Cam 3 Configuration: 3-position switching with a 60° throw for precise, repeatable operator control.
  • Non-Illuminated Design: Non-illuminated construction suited to standard panel indication requirements.
  • Multi-NEMA Rated Enclosure Compatibility: Rated NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13 for indoor, outdoor, washdown, and dust-tight locations.
  • Compact Panel Footprint: Product dimensions of 1.9 in width, 1.9 in height, and 2.2 in length/depth for space-conscious panel mounting.
  • 10250T Series: Part of Eaton's 10250T series of heavy-duty pushbutton and selector switch operators.

Certifications & Compliance

  • CSA Certified
  • CE Marked
  • NEMA 3, 3R, 4, 4X, 12, and 13 Rated

Technical Specifications

  • Department: Electrical
  • Warranty: 1 year
  • Product Type: Electrical Component

Typical Applications

  • Industrial Control Panels and Operator Stations
  • Machine Starter and Motor Control Interfaces
  • Outdoor and Wet-Location Equipment Enclosures
  • Washdown and Dust-Tight Industrial Environments
  • Panelboard and Switchgear Control Interfaces
  • New Construction and Control Panel Retrofits

Why Eaton?

Eaton's 10250T series delivers CSA certified, CE marked heavy-duty selector switches engineered for demanding control environments. With multi-NEMA ratings spanning indoor, outdoor, washdown, and dust-tight applications, this key-operated 30.5 mm switch provides the dependable, code-compliant performance professionals expect from Eaton's control and connectivity solutions.

Manufacturer Resources

Product Specs

Series:
10250T
Department:
Electrical
Performance Rating:
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Warranty:
1 year
Compliances:
CE Marked
Product Type:
Selector Switch
Configuration:
3-Position
Listing:
CSA Certified
Standards:
CE Marked
Product Group:
Motor Control & Automation
Product Subgroup:
Selector Switches

Eaton 10250T3214 – Frequently Asked Questions

1) Will an Eaton 10250T selector switch fit a standard 30.5 mm panel hole?
Yes. The 10250T heavy-duty selector switch is built to the 30.5 mm heavy-duty operator format, which is the standard punch size for industrial control stations and operator panels. If your enclosure or control station is already drilled for 30.5 mm heavy-duty pushbuttons, this drops into the same opening. It will not fit a 22 mm compact panel hole without an adapter.
2) Can I use this Eaton key selector switch in an outdoor or washdown enclosure?
Yes, within a suitably rated enclosure. The switch carries NEMA 3, 3R, 4, 4X, 12 and 13 ratings, which covers outdoor rain and sleet, hosedown and washdown, dust-tight, and oil-resistant indoor conditions. That makes it usable on food-processing washdown lines, exterior equipment enclosures, and dusty plant environments, as long as the enclosure it mounts in carries the same rating.
3) Where can the key be removed on this Eaton key-operated selector switch?
Key removal is in the left and center positions. That matters if you are using the switch as a lockout or permissive: an operator can pull the key with the control off or in the neutral center position, but not while it is held in the right-hand position. If your sequence needs key retention in the active position instead, this cam arrangement is not the one to order.
4) Which Eaton 10250T part numbers are available for this heavy-duty selector switch?
Four catalog numbers cover the actuator choices: 10250T15227 (key actuator), 10250T3214 (extended actuator), 10250T16536, and 10250T6371. Order by the exact catalog number, because the actuator style and cam arrangement are what differ between them.
5) Is the Eaton 10250T selector switch approved for Canadian control panels?
It is CSA Certified and CE Marked, so it is acceptable for Canadian panel builds and for equipment being shipped into CE markets. Those are the listings carried on the switch itself; the enclosure and overall panel still need their own approvals.
6) How much panel depth do I need behind this Eaton 30.5 mm switch?
The operator measures 1.9 in width, 1.9 in height, and 2.2 in length/depth. Allow for that 2.2 in behind the panel face, plus whatever your contact blocks and wiring bend radius add, before you commit to a shallow enclosure or a crowded door.
7) Can I use this key selector switch on a motor starter or HAND-OFF-AUTO circuit?
That is the intended use. The 10250T key selector is built for machine starter and motor control interfaces, industrial operator stations, and panelboard and switchgear control interfaces. The three positions with a 60 degree throw suit a HAND-OFF-AUTO layout, and the key operation keeps unauthorized staff from putting a machine into hand.
8) Is this Eaton selector switch illuminated?
No. The 10250T cam selector switch is a non-illuminated operator. If your panel drawing calls for a lit selector or an indicating position, you need an illuminated operator instead; this one relies on separate pilot lights for indication.
