Eaton Heavy-Duty 30.5 mm Selector Switch, Cam 3, 60° Throw

Eaton Heavy-Duty 30.5 mm Selector Switch, Cam 3, 60° Throw

(No reviews yet) Write a Review

Model: 10250T15237

In Stock (leaves warehouse same day if ordered before 3pm ET)

$197.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Heavy-Duty 30.5 mm Selector Switch, Cam 3, 60° Throw

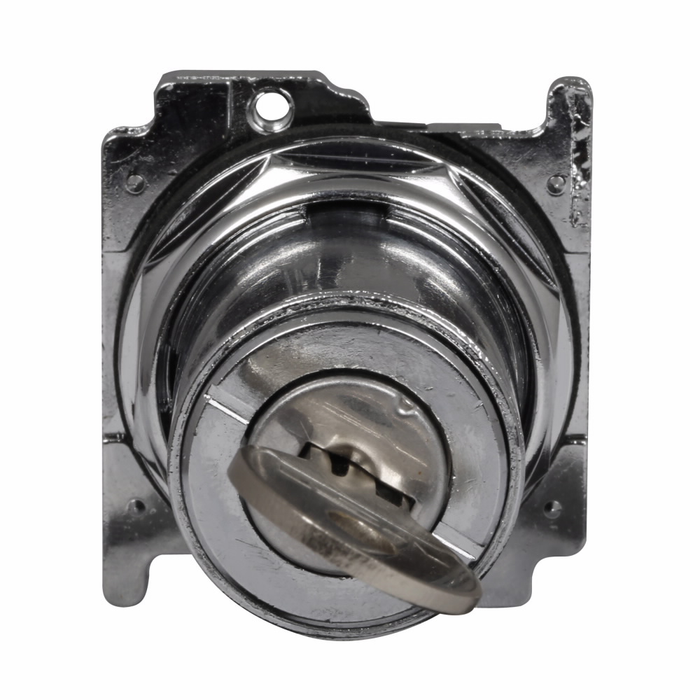

The Eaton Heavy-Duty 30.5 mm Selector Switch is a key-operated, non-illuminated control device built for demanding industrial and commercial panel applications. Part of Eaton's 10250T Series, this 3-position selector switch uses a Cam 3 code with a 60° throw and carries NEMA 3, 3R, 4, 4X, 12, and 13 ratings, making it suitable for a wide range of enclosure and environmental conditions. Key removal is available at the right and center positions, giving panel builders and electricians flexible lockout options for machine control circuits.

Key Features

  • 30.5 mm Heavy-Duty Design: Sized for standard 30.5 mm panel cutouts and built to withstand repeated actuation in industrial control applications.
  • Cam 3 Code, 60° Throw: Provides a defined 60° rotational throw for precise 3-position switching between control states.
  • 3 Switch Positions: Enables selection among three distinct circuit states for machine or process control.
  • Key-Operated Actuator: Restricts operation to authorized personnel holding the key, supporting lockout and access-control requirements.
  • Key Removal Position: Key can be removed at the right and center positions for added operational flexibility.
  • Non-Illuminated: Straightforward, non-lit operator for applications where indicator lighting is not required.
  • Multi-Rated Enclosure Protection: Rated NEMA 3, 3R, 4, 4X, 12, and 13 for use across indoor, outdoor, washdown, and dust/oil-tight enclosure conditions.
  • Compact Footprint: Measures 1.8 in wide, 2 in high, and 2.3 in deep for space-conscious panel layouts.

Certifications & Compliance

  • CSA Certified
  • CE Marked
  • NEMA 3, 3R, 4, 4X, 12, 13 Rated

Technical Specifications

  • Series: 10250T
  • Type: 30.5 mm, Heavy-Duty
  • Cam Code: Cam 3
  • Throw Type: 60°
  • Number of Positions: 3
  • Illumination: Non-illuminated
  • Actuator: Key operated
  • Key Removal Position: Right and center
  • Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
  • Product Width: 1.8 in
  • Product Height: 2 in
  • Product Length/Depth: 2.3 in
  • Compliances: CE Marked
  • Certifications: CSA Certified
  • Warranty: 1 year

Typical Applications

  • Industrial Machine Control Panels
  • Commercial and Industrial Enclosures
  • Outdoor and Wet-Location Control Stations
  • Washdown and Corrosive-Environment Equipment (NEMA 4X)
  • Dust-Tight and Oil-Tight Panel Applications (NEMA 12, 13)
  • Lockout/Tagout and Restricted-Access Control Circuits

Why Eaton?

Eaton's 10250T Series Heavy-Duty selector switches are engineered for the demands of professional panel building, combining a key-operated actuator, robust 30.5 mm construction, and broad NEMA 3, 3R, 4, 4X, 12, and 13 ratings for reliable performance across diverse environments. Backed by CSA certification and CE marking, this selector switch delivers the code-compliant, dependable operation electrical professionals expect from Eaton on every installation.

Manufacturer Resources

Product Specs

Illumination:
Non-illuminated
Performance Rating:
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Series:
10250T
Warranty:
1 year
Department:
Electrical
Actuator:
Key operated
Product Type:
Selector Switch
Product Category:
Selector switch
Throw type:
60 °
Compliances:
CE Marked
Configuration:
3-Position
Listing:
CSA Certified
Standards:
CE Marked
Product Group:
Motor Control & Automation
Product Subgroup:
Selector Switches

Eaton 10250T15237 – Frequently Asked Questions

1) Will the Eaton 10250T key selector switch fit a standard 30.5 mm panel cutout?
Yes. The 10250T heavy-duty selector switch is built for the standard 30.5 mm operator hole, so it drops into an existing 30.5 mm punch on a control panel or enclosure door. Overall the operator measures 1.8 x 2 x 2.3 inches, which is what you need to check against your panel depth and the space around neighbouring operators.
2) Which key removal positions can I order on the Eaton 10250T key-operated selector switch?
Four key removal options are offered, and each is a different part number: left only (10250T15232), all positions (10250T15237), right and center (10250T15335), and right only as a 2-position switch (10250T16111). Key removal position decides where the operator can be locked out, so pick it around how the machine circuit has to be secured, not just around the number of positions.
3) Can this Eaton selector switch be used on an outdoor or washdown control station?
Yes. The 10250T key selector carries NEMA 3, 3R, 4, 4X, 12 and 13 ratings, which covers outdoor and rain-exposed stations (3, 3R), hosedown and washdown (4), corrosive washdown (4X), and dust-tight or oil-tight industrial panels (12, 13). The rating only holds if the enclosure it goes into is rated to the same level and the operator is gasketed properly at the cutout.
4) Is a key-operated selector switch the right choice for lockout of a machine control circuit?
For restricting who can change a control state, yes, a key operator is the right tool: the switch only moves with the key in it, and the key pulls out at defined positions so the circuit stays where it was left. Choose the key removal option that matches the state you need held. Note this is a control-circuit operator, not a disconnecting means. Energy isolation for lockout/tagout still has to be done at a rated disconnect or breaker.
5) What does Cam 3 with a 60 degree throw mean for my control circuit?
Cam code and throw together define how the contact blocks make and break as the operator turns. Cam 3 on the 10250T runs a 60 degree rotational throw across three positions, so each detent is 60 degrees apart and the contact sequence is fixed by that cam. If your panel drawing calls out a different cam code, the contact truth table will not match and you need the cam the print specifies.
6) Do contact blocks come with the Eaton 10250T selector switch?
What you are ordering here is the operator itself, the key-actuated 30.5 mm selector with the Cam 3 mechanism. Contact blocks are separate 10250T Series components chosen to match how many normally open and normally closed circuits your control scheme needs, so budget for those on the same order if the panel is being built from scratch.
7) Does the Eaton 10250T key selector switch meet Canadian and European requirements?
It is CSA Certified and CE Marked, which covers the two things most commonly asked on export machinery and on panels destined for Canadian jobs. That pairing is what an OEM panel builder shipping across borders typically needs on the operator devices.
8) Is this Eaton selector switch illuminated?
No. The 10250T key selector is a non-illuminated operator, so there is no lamp module and no need to run a voltage-matched light to it. If the panel spec calls for a lit position indicator, you want an illuminated operator instead and a separate pilot light is the usual workaround.
