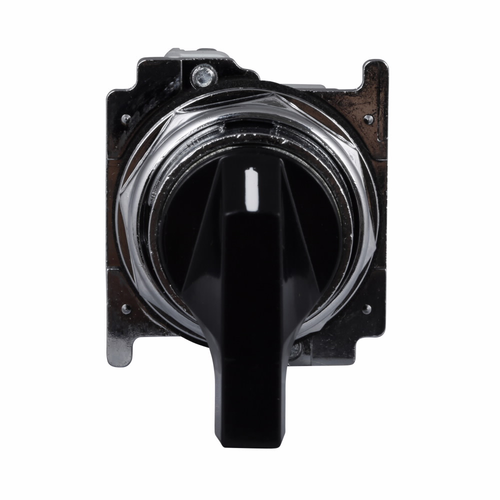

Eaton 10250T Heavy-Duty Selector Switch Operator, Cam 3, 60° Throw, Black
The Eaton 10250T Heavy-Duty Selector Switch Operator is a 30.5 mm, non-illuminated, three-position pushbutton operator built for demanding industrial control panels. Featuring a Cam 3 code with a 60° throw and a black actuator, this operator is rated NEMA 3, 3R, 4, 4X, 12, and 13, making it suitable for indoor and outdoor, wet, dusty, and corrosive-duty environments. As part of Eaton's 10250T series, it delivers reliable, code-compliant switching performance for professional electrical installations.
Key Features
- Size: 30.5 mm heavy-duty operator body for standard panel cutouts.
- Three-Position Selector: 3 positions for precise multi-state control selection.
- Cam Code: Cam 3 configuration with a 60° throw type for defined switching action.
- Illumination: Non-illuminated design for straightforward manual selector applications.
- Actuator Color: Black actuator for clear panel visibility and standard operator identification.
- Product Width: 1.9 in, sized for compact control station layouts.
- NEMA Rating: NEMA 3, 3R, 4, 4X, 12, and 13 for indoor/outdoor, washdown, and dust-tight enclosure use.
Certifications & Compliance
- CE Marked
- NEMA 3 Rated
- NEMA 3R Rated
- NEMA 4 Rated
- NEMA 4X Rated
- NEMA 12 Rated
- NEMA 13 Rated
Technical Specifications
- Number of positions: 3
- Product Type: Pushbutton Operator
- Warranty: 1 year
Typical Applications
- Industrial Control Panels and Machine Interfaces
- Manufacturing and Process Equipment Control Stations
- Outdoor and Wet-Location Control Enclosures
- Washdown and Corrosive-Duty Environments
- Multi-Position Mode Selection Systems
Why Eaton?
Eaton's 10250T series heavy-duty operators are engineered with rugged 30.5 mm construction and broad NEMA 3, 3R, 4, 4X, 12, and 13 ratings to withstand harsh industrial and outdoor conditions. CE Marked and backed by a 1-year warranty, the 10250T selector switch operator delivers dependable, code-compliant performance for professional electrical and industrial control installations.
Manufacturer Resources
Product Specs
- Product Size:
- 30.5 mm
- Number of positions:
- 3
- Product Type:
- Selector Switch
- Actuator color:
- Black
- Warranty:
- 1 year
- Illumination:
- Non-illuminated
- Product Width:
- 1.9 in
- Performance Rating:
- NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
- Throw type:
- 60 °
- Cam code:
- Cam 3
- Product Category:
- Selector switch
- Series:
- 10250T
- Compliances:
- CE Marked
- NEMA rating:
- NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
- Department:
- Electrical
- Product Color:
- Black
- Angle:
- 60°
- Listing:
- CE Marked
- Configuration:
- Three-Position
- Product Group:
- Disconnect Switches
