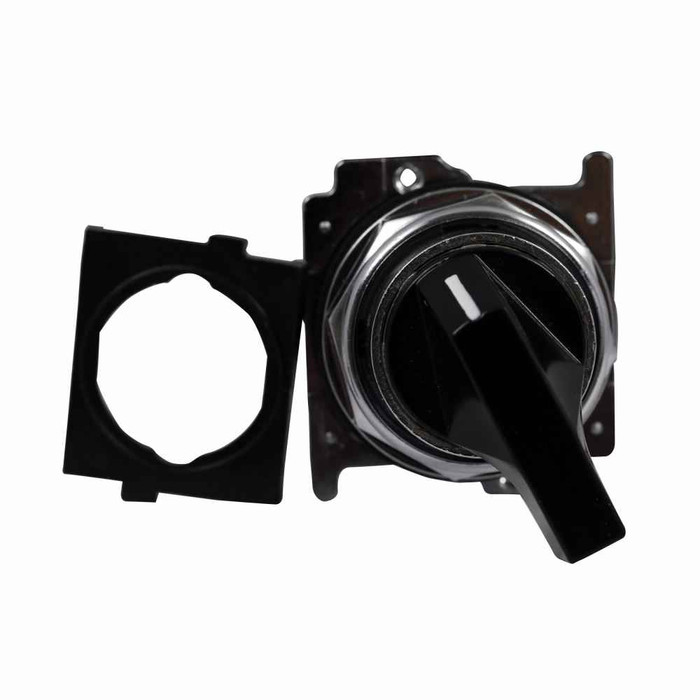

Eaton 10250T Heavy-Duty Selector Switch Operator 30.5mm Two-Position 60° Throw NEMA 3/4/12/13

Eaton 10250T Heavy-Duty Selector Switch Operator 30.5mm Two-Position 60° Throw NEMA 3/4/12/13

Professional Heavy-Duty Control Solution for Industrial Applications

The Eaton 10250T Heavy-Duty Selector Switch Operator delivers reliable two-position control with 60° throw operation in a compact 30.5mm design. This professional-grade selector switch features comprehensive NEMA ratings including Types 3, 3R, 4, 4X, 12, and 13 for versatile indoor and outdoor applications. Built with durable construction and CE marking compliance, this non-illuminated operator provides dependable performance in demanding industrial environments.

Professional Features & Benefits

• 30.5mm Heavy-Duty Design: Compact profile with robust construction ensures reliable operation in space-constrained installations while maintaining professional durability standards.
• Two-Position 60° Throw: Precise positioning control with clear operational feedback for accurate switching and positive engagement in critical control applications.
• Comprehensive NEMA Ratings: Types 3, 3R, 4, 4X, 12, and 13 certification provides versatile protection against weather, corrosion, dust, and oil for indoor/outdoor use.
• Cam 1 Configuration: Standardized cam code ensures proper contact sequencing and reliable switching performance for consistent operational control.
• CE Marked Compliance: European conformity marking demonstrates adherence to safety and performance standards for international applications.
• Non-Illuminated Operation: Clean, professional appearance without indicator lighting reduces complexity while maintaining clear operational status visibility.
• Black Actuator Finish: Professional appearance with durable color that resists fading and maintains clean aesthetics in industrial environments.

Technical Specifications

• Actuator Color: Black
• Cam Code: Cam 1
• Compliances: CE Marked
• Illumination: Non-illuminated
• Nema Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Number Of Positions: 2
• Performance Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Product Category: Selector switch
• Product Details: 30.5 mm, Heavy-Duty
• Product Size: 30.5 mm
• Series: 10250T
• Throw Type: 60 °

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Machine Operations
• Motor Control Centers and Switchgear Applications
• Process Control and Automation Systems
• Manufacturing Equipment and Production Lines
• Commercial Building Control Systems
• Water Treatment and Utility Control Applications
• Emergency and Safety Control Systems

Why Choose Eaton Quality?

Eaton delivers proven reliability through comprehensive NEMA environmental ratings and CE compliance certification. The heavy-duty construction and professional-grade materials ensure long-term durability in demanding industrial applications, while the standardized design provides consistent performance and easy integration into existing control systems.
