Eaton 1352B-6517 50 Series Pho...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$888.50
$838.50

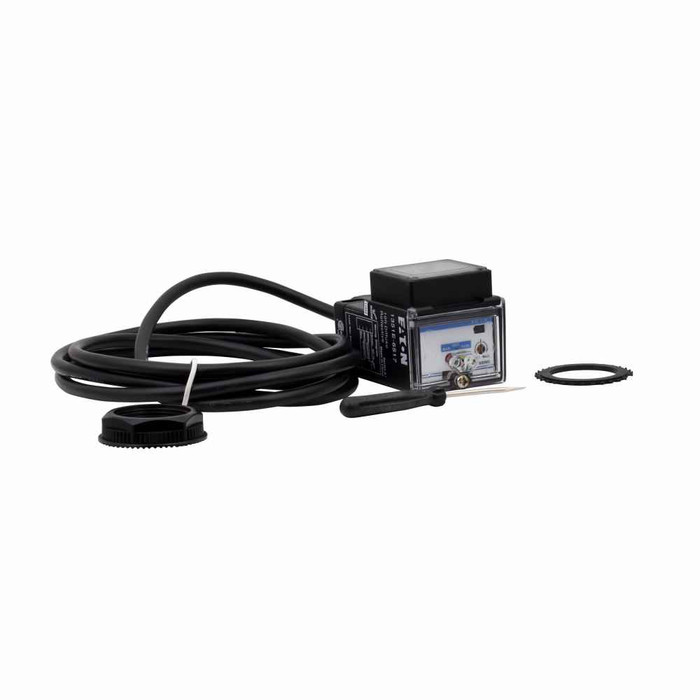

Eaton 1352B-6517 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 72 In., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 6.6 Ft. ( 2m ) Cable, 10-30 Vdc input, Reverse polarity, 6 Ft. ( 1.8m )

Eaton 1352B-6517 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 72 In., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 6.6 Ft. ( 2m ) Cable, 10-30 Vdc input, Reverse polarity, 6 Ft. ( 1.8m )

(No reviews yet) Write a Review

Model: 1352B-6517
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$888.50
$838.50
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton 1251B-6517 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 70 Ft., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 6.6 Ft. ( 2m ) Cable, 10-30 Vdc input, Reverse polarity, Thu-Beam, 6 Ft. ( 1.8m )

Eaton 1251B-6517 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 70 Ft., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 6.6 Ft. ( 2m ) Cable, 10-30 Vdc input, Reverse polarity, Thu-Beam, 6 Ft. ( 1.8m )

Model: EAT-1251B-6517

Eaton 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 70 Ft., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 6.6 Ft. ( 2m ) Cable, 10-30 Vdc input, Reverse...

Eaton

$1,090.80
$1,040.80
Eaton 1250B-6517 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 100 Ft., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 6.6 Ft. ( 2m ) Cable, 10-30 Vdc input, Reverse polarity, Thu-Beam, 6 Ft. ( 1.8m )

Eaton 1250B-6517 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 100 Ft., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 6.6 Ft. ( 2m ) Cable, 10-30 Vdc input, Reverse polarity, Thu-Beam, 6 Ft. ( 1.8m )

Model: EAT-1250B-6517

Eaton 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 100 Ft., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 6.6 Ft. ( 2m ) Cable, 10-30 Vdc input, Reverse...

Eaton

$1,090.80
$1,040.80
Eaton 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 72 In., 250 mA max DC, NPN and PNP Open Collector, 250 mA at 30 Vdc, 6.6 Ft. ( 2m ) Cable, 10-30 Vdc input, Reverse polarity, 6 Ft. ( 1.8m )

Manufacturer Resources

Product Specs

Cable Type:
Polyvinyl Chloride (PVC)
Catalog Notes:
Ranges based on 3-inch retroreflector for reflex sensors; 90% reflectance card for diffuse reflective sensors
Certifications:
CSA Certified
Compliances:
Contact Manufacturer
Connection:
6.6 ft (2 m) cable
Contact Configuration:
NPN and PNP open collector
Contact Rating:
250 mA at 30 Vdc
Cord Length:
72 ft
Enclosure Material:
Lens: nylon
Environmental Rating:
NEMA 1, NEMA 3, NEMA 4, NEMA 12, NEMA 13
Input Voltage:
10-30 Vdc
Led Indicator:
Output status: red
Maximum Dc Current:
250 mA
Operating Mode:
Diffuse reflective
Operating Temperature Max:
158 °F
Operating Temperature Min:
-40 °F
Product Height:
3.19 in
Product Length Depth:
1.64 in
Product Weight:
.5125 lb
Product Width:
1.83 in
Protection:
Reverse polarity
Sensor Type:
Diffuse reflective
Switch Type:
Photoelectric
Product Group:
Electrical
!
