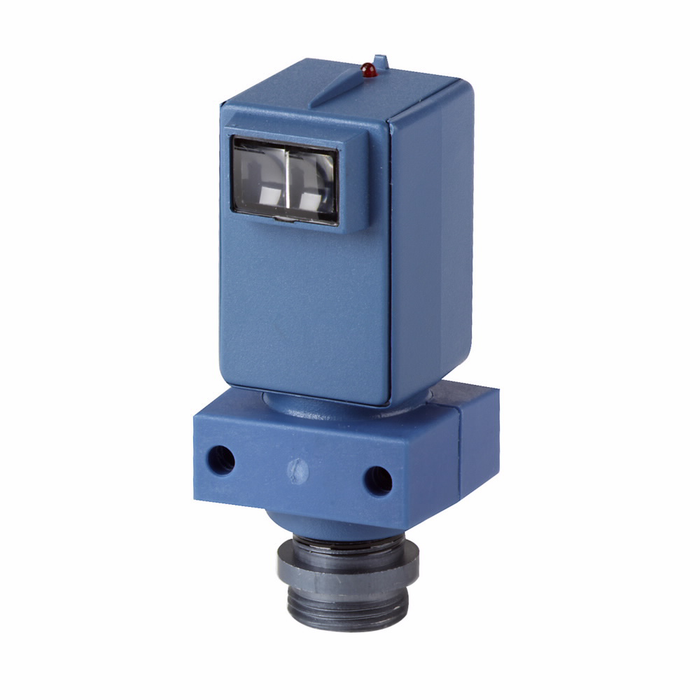

Eaton 55 Series Right Angle Photoelectric Sensor

Eaton 55 Series Right Angle Photoelectric Sensor

(No reviews yet) Write a Review

Model: 1455AD6507

In Stock (leaves warehouse same day if ordered before 3pm ET)

$599.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton 55 Series Right Angle Photoelectric Sensor

The Eaton 55 Series Right Angle Photoelectric Sensor is a non-polarized retroreflective photoelectric sensor built for reliable object detection in industrial automation and machine control applications. Featuring a 30 Ft. sensing distance (based on a 3-inch retroreflector, sold separately), this sensor delivers NPN and PNP open collector outputs at 50 mA max DC and a 50 mA at 30 Vdc contact rating, operating on a 10-30 Vdc input. Housed with a nylon lens and connected via a 4 Pin Mini Connector, it is CSA Certified and rated for NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, and NEMA 13 environments.

Key Features

  • Sensing Distance: 30 Ft. retroreflective range for detecting targets using a 3-inch retroreflector (retroreflector sold separately).
  • Durable Construction: Nylon lens enclosure for long service life in demanding environments.
  • Sensor Type: Non-polarized retroreflective photoelectric sensor with right-angle housing for tight installation spaces.
  • Output Configuration: NPN and PNP open collector outputs, 50 mA max DC, with a 50 mA at 30 Vdc contact rating.
  • Input Voltage: 10-30 Vdc input range for flexible integration into control circuits.
  • Protection: Auto reset short circuit protection to safeguard the sensor during overload conditions.
  • Connector: 4 Pin Mini Connector with a 72 ft. PVC cord for straightforward wiring.
  • LED Indicator: Red output status LED for at-a-glance diagnostics.

Certifications & Compliance

  • CSA Certified
  • NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, and NEMA 13 Rated

Technical Specifications

  • Product Height: 3.19 in
  • Product Width: 1.64 in
  • Product Length/Depth: 1.83 in
  • Cord Length: 72 ft
  • Operating Temperature - Max: 158 °F
  • Operating Temperature - Min: -40 °F
  • Cable Type: Polyvinyl Chloride (PVC)
  • Enclosure Material: Lens: nylon
  • Warranty: 3 year

Typical Applications

  • Industrial Automation and Machine Control
  • Conveyor and Material Handling Systems
  • Packaging Line Object Detection
  • Panel and Control Cabinet Sensing Circuits
  • Retrofit and New Equipment Installations

Why Eaton?

Eaton engineers the 55 Series Photoelectric Sensor with a durable nylon lens, CSA certification, and broad NEMA environmental ratings to withstand demanding industrial conditions. With auto reset short circuit protection and dual NPN/PNP open collector outputs, this sensor offers the flexibility and reliability professionals expect for code-compliant automation and control wiring. Backed by a 3 year warranty, it's a dependable choice for industrial and commercial electrical projects.

Manufacturer Resources

Product Specs

Product Height:
3.19 in
Cord length:
72 ft
Operating temperature - max:
158 °F
Operating temperature - min:
-40 °F
Warranty:
3 year
Operating mode:
Non polarized retroreflective
Switch Classification:
Photoelectric
Contact configuration:
NPN and PNP open collector
Cable type:
Polyvinyl Chloride (PVC)
Certifications:
CSA Certified
Product Width:
1.64 in
Enclosure material:
Lens: nylon
LED indicator:
Output status: red
Maximum DC current:
50 mA
Product Length/Depth:
1.83 in
Sensor type:
Retroreflective
Protection:
Auto reset short circuit
Amperage Rating:
50 mA
Input voltage:
10-30 Vdc
Compliances:
Contact Manufacturer
Environmental rating:
NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Product Type:
Photoelectric Sensor
Department:
Electrical
Product Material:
Nylon
Voltage Rating:
10-30 Vdc
Listing:
CSA Certified
Product Group:
Wiring Devices
Product Subgroup:
Switches
Product Length:
1.83 in

Eaton 1455AD6507 – Frequently Asked Questions

1) Does the Eaton 55 Series retroreflective sensor come with a reflector?
No. The 55 Series right angle sensor ships without a reflector, and you need one to make it work. The 30 ft sensing range is based on a 3 inch retroreflector, so order that target separately and mount it opposite the sensor head.
2) What are the two connection options on the Eaton 1455AD sensor?
Two ways to land it: a 4-pin mini connector version (1455AD6507) for quick disconnect on machines already wired with mini cordsets, or a factory cable version (1455AD6517) with a 6.6 ft (2 m) pigtail. Pick the connector version if you want to swap the head without pulling wire.
3) Can this sensor be washed down or used outdoors?
Environmental rating covers NEMA 1, 3, 4, 6, 12 and 13, which takes in outdoor rain exposure, hosedown, oil and coolant, and temporary submersion. Operating range runs -40 F to 158 F, so unheated warehouses and freezer dock areas are within spec. It is CSA Certified.
4) Will this sensor reliably detect shiny or reflective packaging?
Be careful here. The 55 Series operates in non-polarized retroreflective mode, meaning it reads any light bounced back to the receiver. A mirror-finish target, shrink wrap or a bright metal can reflect enough light to look like the reflector and cause a missed detection. For shiny targets a polarized retroreflective or a diffuse proximity sensor is the better pick; for matte cartons, cases and totes the non-polarized version is fine and gives more available range.
5) Does the Eaton 1455AD sensor need external short circuit protection?
No added protection is required on the output. The sensor has auto reset short circuit protection built in, so a shorted output load shuts the drive down and it recovers on its own once the fault is cleared, instead of destroying the transistor.
6) How do I tell if the sensor is seeing its reflector during setup?
There is a red output status LED on the housing. Aim the head at the 3 inch retroreflector and watch the LED change state as you break and remake the beam. That is the quickest way to confirm alignment over a long 30 ft shot before you commit the bracket.
7) What is the lens and cable made of on this Eaton photoelectric sensor?
The lens is nylon and the cord is PVC jacketed. Nylon holds up to knocks on a conveyor line better than glass, but check chemical exposure if the sensor sits in a solvent or aggressive washdown area, since PVC cable is the limiting material there.
