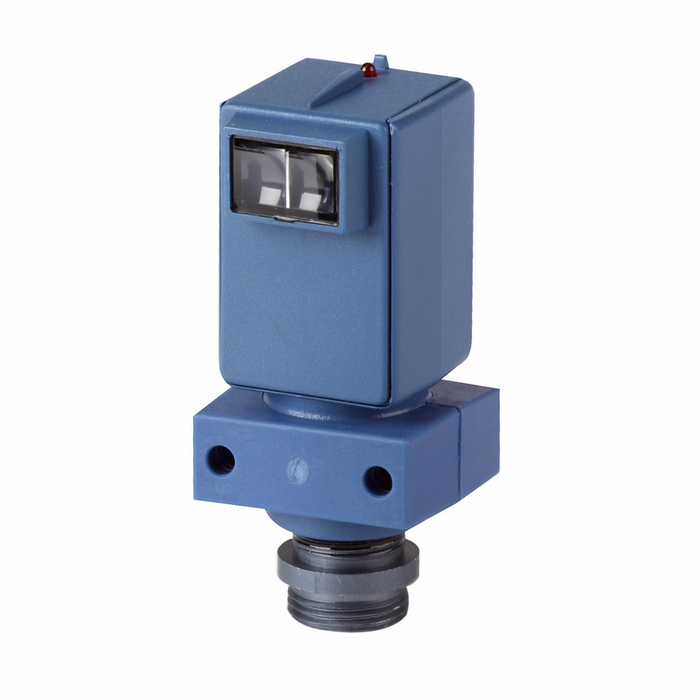

Eaton Right Angle Diffuse Reflective Photoelectric Sensor, Nylon Lens

The Eaton Right Angle Diffuse Reflective Photoelectric Sensor is a compact, right-angle photoelectric switch built for reliable object detection in demanding industrial environments. Featuring a nylon lens, diffuse reflective operating mode, and a rugged housing rated NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, and NEMA 13, this Eaton sensor is engineered to hold up in washdown, dusty, and wet-location settings alike. With a 300 mA maximum AC/DC current rating and a wide input voltage range, it delivers dependable performance across a variety of control and automation applications.

Key Features

  • Compact Right-Angle Design: Product Width 1.64 in, Length/Depth 1.83 in, Height 3.19 in for tight mounting locations.
  • Durable Construction: Nylon lens housing resists the wear of industrial sensing environments.
  • Diffuse Reflective Sensing: Photoelectric switch type operating in diffuse reflective mode for direct object detection without a separate reflector.
  • Electrical Rating: Input voltage 20-264 Vac at 50/60 Hz or 15-30 Vdc (NPN), with a maximum AC/DC current of 300 mA and contact rating of 300 mA AC/DC at 20-264Vac/15-30Vdc.
  • NPN Output: DC contact configuration is NPN open collector with a red LED output-status indicator.
  • Built-In Protection: Latching short-circuit protection helps safeguard the sensor and connected circuit.
  • Cabled Connection: Integral 6.6 ft (2 m) PVC cable simplifies wiring to control equipment.
  • Wide Operating Range: Rated from -40 °F to 158 °F for use in extreme ambient conditions.

Certifications & Compliance

  • CSA Certified
  • NEMA 1 Rated
  • NEMA 3 Rated
  • NEMA 4 Rated
  • NEMA 6 Rated
  • NEMA 12 Rated
  • NEMA 13 Rated

Technical Specifications

  • Warranty: 3 year
  • Department: Electrical
  • Product Type: Electrical Component

Typical Applications

  • Industrial Automation and Machine Control
  • Object and Part Presence Detection
  • Conveyor and Material Handling Systems
  • Wet, Dusty, and Washdown-Location Installations
  • Commercial and Industrial Electrical Control Panels

Why Eaton?

Eaton engineers this photoelectric sensor with a durable nylon lens, latching short-circuit protection, and multi-NEMA-rated housing so it performs reliably across harsh industrial conditions. Backed by a 3-year warranty and CSA certification, it's built to deliver consistent, code-compliant performance for professional automation and control work.

Manufacturer Resources

Product Specs

Connection:
6.6 ft (2 m) cable
Environmental Rating:
NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Warranty:
3 year
LED indicator:
Output status: red
Sensor Type:
Diffuse reflective
Cord Length:
72 ft
Catalog Notes:
Ranges based on a 90% reflectance card
Product Height:
3.19 in
Operating Mode:
Diffuse reflective
Cable Type:
Polyvinyl Chloride (PVC)
Product Length/Depth:
1.83 in
Operating Temperature Max:
158 °F
Operating temperature - min:
-40 °F
Department:
Electrical
Product Width:
1.64 in
Switch Classification:
Photoelectric
Compliances:
Contact Manufacturer
Product Type:
Photoelectric Sensor
Product Material:
Nylon
Configuration:
Right Angle
Voltage Rating:
20-264V AC / 15-30V DC
Amperage Rating:
300mA
Listing:
CSA Certified
Product Group:
Wiring Devices
Product Subgroup:
Switches
Product Length:
1.83 in
Product Weight:
0.588 lb

Eaton 1356A-6517 – Frequently Asked Questions

1) Does the Eaton right angle photoelectric sensor need a separate reflector or receiver to work?
No. It's a diffuse reflective sensor, so the emitter and receiver are in the one housing and it senses light bounced straight back off the target. Nothing mounts on the opposite side of the conveyor or opening. If your application has a shiny or very dark target, be aware the published sensing ranges are based on a 90% reflectance card, so low-reflectance objects will detect at shorter distances. For long spans or unreliable target surfaces, a through-beam or retroreflective sensor is the better choice.
2) Can this Eaton sensor run on 120V AC, or is it DC only?
It handles both. The input range is 20-264V AC at 50/60 Hz or 15-30V DC, so a 120V AC control circuit and a 24V DC panel supply are both within spec. Maximum switched current is 300 mA AC/DC, which is fine for driving a PLC input or a small interposing relay but not a contactor coil of any size.
3) Is this Eaton photoelectric sensor rated for washdown areas?
Yes. The housing carries NEMA 1, 3, 4, 6, 12 and 13 ratings, which covers hosedown and wet locations (4 and 6), dust and falling dirt (12), and coolant or oil spray (13). It's also CSA Certified. Operating range is -40 F to 158 F, so unheated warehouses and cold storage docks are within spec.
4) Does this Eaton sensor come with a cable, or do I need a cordset?
It ships with an integral PVC cable, 6.6 ft (2 m) long, so there's no connector to buy and no mating cordset to stock. Route it back to your junction box or panel; if you need more than about six feet of reach you'll be splicing in an enclosure rather than plugging in an extension.
5) What happens if the output on this Eaton photoelectric sensor gets shorted?
The sensor has latching short-circuit protection, so a shorted output shuts the driver down and holds it off rather than letting it cook. Clear the fault and cycle power to reset. There's also a red LED on the housing that shows output status, which makes it quick to tell at the machine whether the sensor is seeing the target or the wiring is the problem.
6) Will this Eaton sensor switch a motor starter or solenoid valve directly?
No, not directly. The output is an open collector transistor rated 300 mA AC/DC, which suits a PLC input, a small pilot light, or an interposing relay coil. Anything with real inrush, like a contactor or most solenoid valves, needs a relay between the sensor and the load.
7) Is the lens on this Eaton sensor glass or plastic?
Nylon. That holds up to knocks and vibration better than glass in material handling work, though in environments with aggressive solvents or constant abrasive dust you should plan on periodic lens cleaning to keep the diffuse sensing reliable.
