Eaton 1256A-6501 55 Series Pho...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$715.43
$665.43

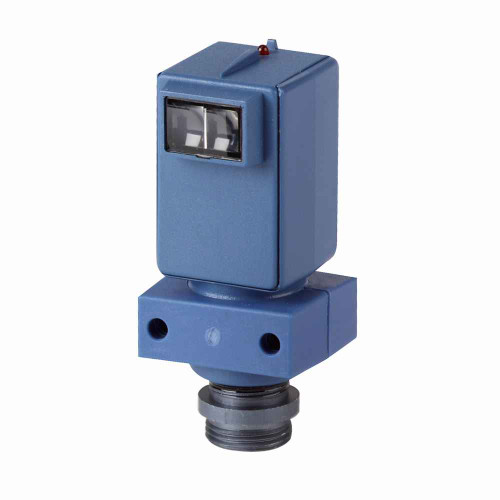

Eaton 1256A-6501 55 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 70 Ft., Body: Noryl, Lens: Nylon enclosure, 50 mA max AC, L1 Switched, 50 mA at 132 Vac, 3 Pin Mini Connector, 90-132 Vac input, Reverse polarity, Thu-Beam

Eaton 1256A-6501 55 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 70 Ft., Body: Noryl, Lens: Nylon enclosure, 50 mA max AC, L1 Switched, 50 mA at 132 Vac, 3 Pin Mini Connector, 90-132 Vac input, Reverse polarity, Thu-Beam

(No reviews yet) Write a Review

Model: 1256A-6501

In Stock (leaves warehouse same day if ordered before 3pm ET)

$715.43
$665.43
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton 55 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 70 Ft., Body: Noryl, Lens: Nylon enclosure, 50 mA max AC, L1 Switched, 50 mA at 132 Vac, 3 Pin Mini Connector, 90-132 Vac input, Reverse polarity, Thu-Beam

Manufacturer Resources

Product Specs

Catalog Notes:
For complete system; order 1 source and 1 detector. Minimum object size is 0.4 x 0.7 inches (10 x 18 mm).
Certifications:
CSA Certified
Compliances:
Contact Manufacturer
Connection:
3-pin mini connector
Contact Configuration:
L1 switched
Contact Rating:
50 mA at 132 Vac
Enclosure Material:
Lens: nylon
Environmental Rating:
NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Input Voltage:
90-132 Vac
Led Indicator:
Output status: red
Maximum Ac Current:
50 mA
Operating Mode:
Thru-beam
Operating Temperature Max:
158 °F
Operating Temperature Min:
-22 °F
Product Height:
3.19 in
Product Length Depth:
1.83 in
Product Weight:
.3375 lb
Product Width:
1.64 in
Protection:
Reverse polarity
Sensor Type:
Through beam
Product Group:
Electrical
Department:
Electrical
Switch Classification:
Photoelectric
