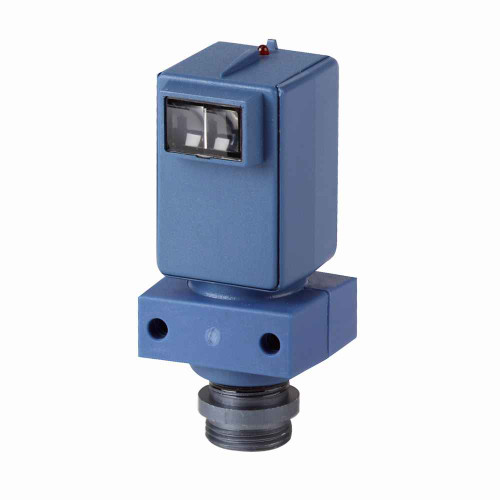

Eaton 55 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 70 Ft., Body: Noryl, Lens: Nylon enclosure, NPN and PNP Open Collector, 4 Pin Mini Connector, 10-30 Vdc input, Reverse polarity, Thu-Beam
Manufacturer Resources
Product Specs
- Catalog Notes:
- For complete system; order 1 source and 1 detector. Minimum object size is 0.4 x 0.7 inches (10 x 18 mm).
- Certifications:
- UL Listed
- Compliances:
- Contact Manufacturer
- Connection:
- 4-pin mini connector
- Contact Configuration:
- NPN and PNP open collector
- Enclosure Material:
- Lens: nylon
- Environmental Rating:
- NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
- Input Voltage:
- 10-30 Vdc
- Led Indicator:
- Output status: red
- Operating Mode:
- Thru-beam
- Operating Temperature Max:
- 158 °F
- Operating Temperature Min:
- -22 °F
- Product Height:
- 3.19 in
- Product Length Depth:
- 1.83 in
- Product Weight:
- .3375 lb
- Product Width:
- 1.64 in
- Protection:
- Reverse polarity
- Sensor Type:
- Through beam
- Switch Type:
- Photoelectric
- Product Group:
- Electrical
