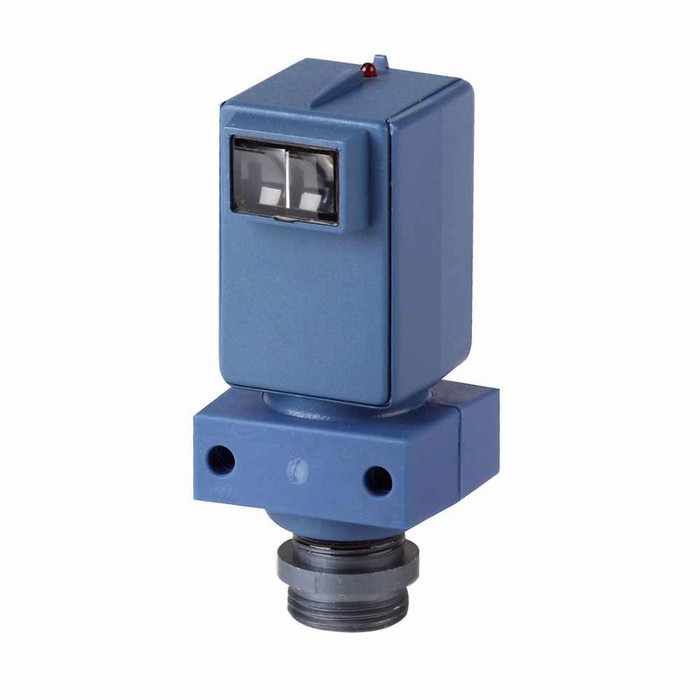

Eaton 1555AD6517 55 Series Pho...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$688.40
$638.40

Eaton 1555AD6517 55 Series Photoelectric Sensor, Photoelectric, Sensor distance depends on the fiberoptic cables used, 50 mA, NPN/PNP Open Collector, 50 mA at 30 Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, Auto reset short circuit

(No reviews yet) Write a Review

Model: 1555AD6517

In Stock (leaves warehouse same day if ordered before 3pm ET)

$688.40
$638.40
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
Eaton 55 Series Photoelectric Sensor, Photoelectric, Sensor distance depends on the fiberoptic cables used, 50 mA, NPN/PNP Open Collector, 50 mA at 30 Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, Auto reset short circuit

Manufacturer Resources

Product Specs

Cable Type:
Polyvinyl Chloride (PVC)
Catalog Notes:
Glass fiber optic cables not included. Ranges based on 3-inch retroreflector for reflex mode; 90% reflectance card for diffuse reflective mode
Certifications:
CSA Certified
Compliances:
Contact Manufacturer
Connection:
6.6 ft (2 m) cable
Contact Configuration:
NPN and PNP open collector
Contact Rating:
50 mA at 30 Vdc
Cord Length:
72 ft
Enclosure Material:
Body: noryl
Environmental Rating:
NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Input Voltage:
10-30 Vdc
Led Indicator:
Output status: red
Maximum Dc Current:
50 mA
Operating Mode:
Fiber-optic
Operating Temperature Max:
158 °F
Operating Temperature Min:
-40 °F
Product Height:
3.19 in
Product Length Depth:
1.83 in
Product Weight:
.5875 lb
Product Width:
1.64 in
Protection:
Auto reset short circuit
Sensor Type:
Fiberoptic
Switch Type:
Photoelectric
Product Group:
Electrical
