Eaton 1456AS2040 55 Series Pho...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$928.97
$878.97

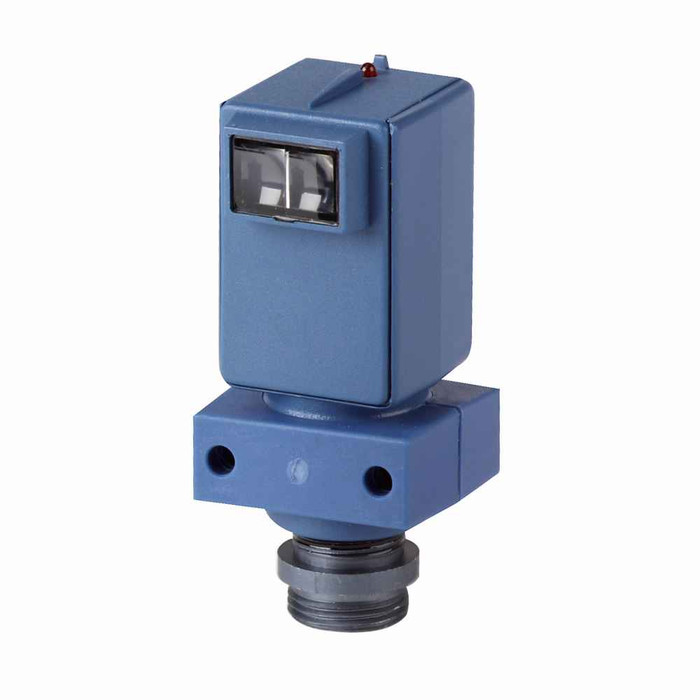

Eaton 1456AS2040 55 Series Photoelectric Sensor, Sensor distance: 15 Ft., Body: Noryl, 300 mA AC/DC at 20-264Vac/15-30Vdc, 3 Pin Mini Connector, 20–264 Vac 50/60 Hz or 15–30 Vdc (NPN) input, Latching short circuit, Polarized Retroreflective

Eaton 1456AS2040 55 Series Photoelectric Sensor, Sensor distance: 15 Ft., Body: Noryl, 300 mA AC/DC at 20-264Vac/15-30Vdc, 3 Pin Mini Connector, 20–264 Vac 50/60 Hz or 15–30 Vdc (NPN) input, Latching short circuit, Polarized Retroreflective

(No reviews yet) Write a Review

Model: 1456AS2040

In Stock (leaves warehouse same day if ordered before 3pm ET)

$928.97
$878.97
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton 1455AD6503 55 Series Photoelectric Sensor, Sensor distance: 30 Ft., Body: Noryl, 300 mA AC/DC at 20-264Vac/15-30Vdc, 3 Pin Mini Connector, 20–264 Vac 50/60 Hz or 15–30 Vdc (NPN) input, Latching short circuit, Non Polarized Retroreflective

Eaton 1455AD6503 55 Series Photoelectric Sensor, Sensor distance: 30 Ft., Body: Noryl, 300 mA AC/DC at 20-264Vac/15-30Vdc, 3 Pin Mini Connector, 20–264 Vac 50/60 Hz or 15–30 Vdc (NPN) input, Latching short circuit, Non Polarized Retroreflective

Model: EAT-1455AD6503

Eaton 55 Series Photoelectric Sensor, Sensor distance: 30 Ft., Body: Noryl, 300 mA AC/DC at 20-264Vac/15-30Vdc, 3 Pin Mini Connector, 20–264 Vac 50/60 Hz or 15–30 Vdc (NPN) input, Latching short...

Eaton

$872.76
$822.76
Eaton 55 Series Photoelectric Sensor, Sensor distance: 15 Ft., Body: Noryl, 300 mA AC/DC at 20-264Vac/15-30Vdc, 3 Pin Mini Connector, 20–264 Vac 50/60 Hz or 15–30 Vdc (NPN) input, Latching short circuit, Polarized Retroreflective

Manufacturer Resources

Product Specs

Certifications:
UL Listed
Compliances:
Contact Manufacturer
Connection:
3-pin mini connector
Contact Configuration:
DC: NPN open collector
Contact Rating:
300 mA AC/DC at 20-264Vac/15-30Vdc
Enclosure Material:
Lens: nylon
Environmental Rating:
NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Input Voltage:
20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN)
Led Indicator:
Output status: red
Maximum Ac Current:
300 mA
Maximum Dc Current:
300 mA
Operating Mode:
Polarized retroreflective
Operating Temperature Max:
158 °F
Operating Temperature Min:
-40 °F
Product Height:
3.19 in
Product Length Depth:
1.83 in
Product Weight:
.5875 lb
Product Width:
1.64 in
Protection:
Latching short circuit
Sensor Type:
Polarized retroreflective
Product Group:
Electrical
Department:
Electrical
Switch Classification:
Photoelectric
