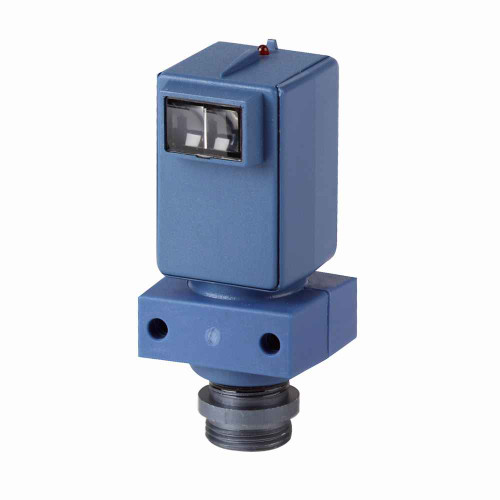

Eaton 55 Series Photoelectric Sensor, Sensor distance 15 Ft., Body: Noryl, 300 mA AC/DC at 20-264Vac/15-30Vdc, 6.6 Ft. (2m) Cable, 20–264 Vac 50/60 Hz or 15–30 Vdc (NPN) input, Latching short circuit
Manufacturer Resources
Product Specs
- Cable Type:
- Polyvinyl Chloride (PVC)
- Catalog Notes:
- Ranges based on 3-inch retroreflector (not included). For complete system; order sensor and retroreflector. Polarized sensors may not operate with retroreflective tape. Test selected tape before installation.
- Certifications:
- CSA Certified
- Compliances:
- Contact Manufacturer
- Connection:
- 6.6 ft (2 m) cable
- Contact Configuration:
- AC: L1 switched
- Contact Rating:
- 300 mA AC/DC at 20-264Vac/15-30Vdc
- Cord Length:
- 72 ft
- Enclosure Material:
- Lens: nylon
- Environmental Rating:
- NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
- Input Voltage:
- 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN)
- Led Indicator:
- Output status: red
- Maximum Ac Current:
- 300 mA
- Maximum Dc Current:
- 300 mA
- Operating Mode:
- Polarized retroreflective
- Operating Temperature Max:
- 158 °F
- Operating Temperature Min:
- -40 °F
- Product Height:
- 3.19 in
- Product Length Depth:
- 1.83 in
- Product Weight:
- .5875 lb
- Product Width:
- 1.64 in
- Protection:
- Latching short circuit
- Sensor Type:
- Polarized retroreflective
- Switch Type:
- Photoelectric
