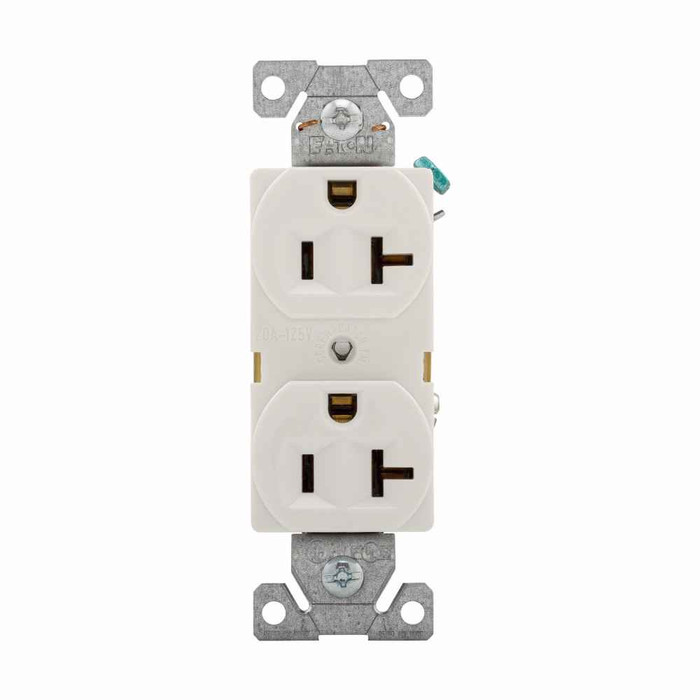

Eaton Arrow Hart heavy-duty industrial specification grade duplex receptacle, #14-10 AWG, 20A, Industrial, Flush, 125V, Back and side, Brass, Nylon, 5-20R, Duplex, Screw, Glass-filled nylon

Eaton Arrow Hart Heavy-Duty Industrial Grade Duplex Receptacle 20A 125V NEMA 5-20R with Brass Contacts

(No reviews yet) Write a Review

Model: EAT-536

In Stock (leaves warehouse same day if ordered before 3pm ET)

$8.03
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Arrow Hart Heavy-Duty Industrial Grade Duplex Receptacle 20A 125V NEMA 5-20R with Brass Contacts

Professional specification grade power distribution for demanding industrial applications

The Eaton Arrow Hart Heavy-Duty Industrial Grade Duplex Receptacle delivers reliable 20A, 125V power distribution with professional NEMA 5-20R configuration. Built with brass contacts and glass-filled nylon construction, this flush-mount duplex receptacle accommodates #14-10 AWG wiring with versatile back and side wiring options for efficient installation in industrial environments.

Professional Features & Benefits

  • 20A Current Rating: Handles demanding electrical loads with reliable power delivery for industrial equipment and heavy-duty applications.
  • 125V Operating Voltage: Standard voltage compatibility ensures broad application versatility across commercial and industrial facilities.
  • Brass Contact Construction: Superior conductivity and corrosion resistance provide long-lasting electrical performance and connection reliability.
  • Glass-Filled Nylon Housing: Enhanced durability and impact resistance withstand harsh industrial environments and frequent use.
  • NEMA 5-20R Configuration: Industry-standard duplex receptacle design ensures compatibility with standard plugs and equipment.
  • Dual Wiring Options: Back and side wiring capability provides installation flexibility and accommodates various electrical box configurations.
  • UL Listed: Meets rigorous safety standards for reliable performance and code compliance in professional installations.

Technical Specifications

  • Certifications: UL
  • Compliances: RoHS Compliant
  • Product Height: 1.78 in
  • Product Length Depth: 4.38 in
  • Product Weight: .22 lb
  • Product Width: 1.91 in

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Manufacturing Facilities
  • Commercial Workshop Environments
  • Heavy-Duty Equipment Power Distribution
  • Professional Service Areas
  • Maintenance and Repair Facilities
  • Specification Grade Electrical Systems
  • Code-Compliant Industrial Installations

Why Choose Eaton Quality?

Eaton Arrow Hart receptacles deliver proven reliability with UL listing and RoHS compliance, ensuring professional-grade performance in demanding applications. The combination of brass contacts, glass-filled nylon construction, and specification-grade design provides the durability and safety required for industrial electrical distribution systems.

Manufacturer Resources

Product Specs

Certifications:
UL
Compliances:
RoHS Compliant
Product Height:
1.78 in
Product Length Depth:
4.38 in
Product Weight:
.22 lb
Product Width:
1.91 in
Product Type:
Receptacles
Product Group:
Wiring Devices
