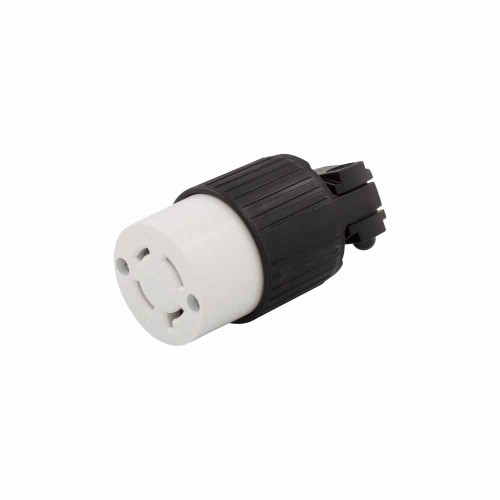

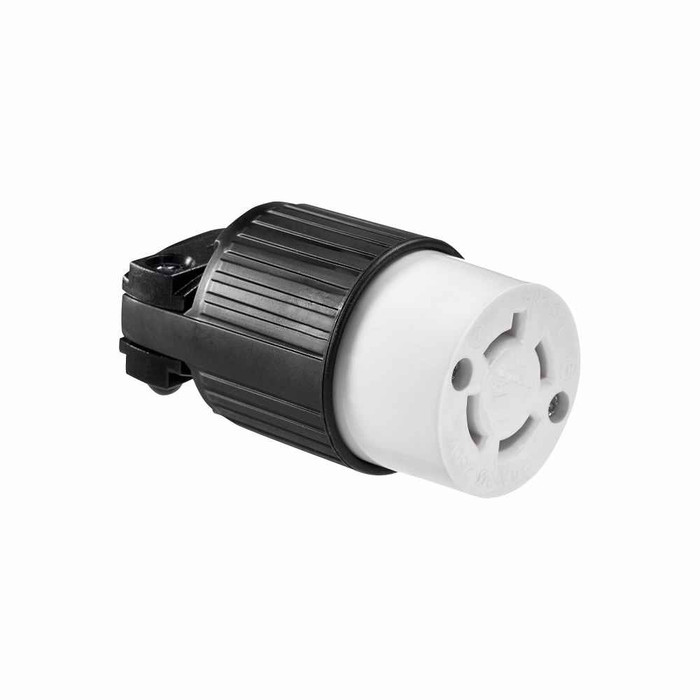

Eaton L1520C Arrow Hart ultra grip locking connector, #18-10 AWG, 20A, Industrial, 250V, Back wiring, Black, white, Ultra grip, L15-20, Three-pole, Four-wire, Nylon

Eaton Arrow Hart Ultra Grip L15-20 Locking Connector 20A 250V Three-Pole Four-Wire Industrial Grade

(No reviews yet) Write a Review

Model: L1520C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$103.91
$53.91
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Arrow Hart Ultra Grip L15-20 Locking Connector 20A 250V Three-Pole Four-Wire Industrial Grade

Professional Industrial Locking Connector with Ultra Grip Technology

The Eaton Arrow Hart Ultra Grip locking connector delivers reliable industrial-grade performance with 20A capacity and 250V three-phase rating. Featuring thermoplastic construction with brass contacts and back wiring capability, this L15-20 three-pole, four-wire connector provides secure connections for demanding industrial applications with watertight locking receptacle functionality.

Professional Features & Benefits

  • 20A Amperage Rating: Handles substantial electrical loads for industrial equipment and machinery applications.
  • L15-20 NEMA Configuration: Standard three-phase locking design ensures proper phase rotation and secure connections.
  • Ultra Grip Technology: Enhanced grip design provides superior connection security and ease of operation.
  • Watertight Locking Receptacle: Protects connections from moisture and environmental contaminants in industrial settings.
  • Brass Contact Material: Corrosion-resistant contacts ensure reliable conductivity and long service life.
  • Thermoplastic Construction: Durable material withstands industrial environments and temperature variations.
  • Back Wiring Method: Simplified installation with secure wire termination for professional applications.

Technical Specifications

  • Amperage Rating: 20 A
  • Application: Industrial
  • Color: Black
  • Contact Material: Brass
  • Cord Diameter: 0.25-0.69 in (6.4 mm-17.5 mm)
  • Department: Electrical
  • Design Type: Standard locking connector
  • Device Grade: Commercial
  • Face Body Material: Thermoplastic
  • Material: Thermoplastic
  • Nema Configuration: L15-20
  • Number Of Poles: Three-pole
  • Number Of Wires: 4
  • Operating Temperature: -20 to 60 �C (-4 to 140 �F)
  • Product Details: Locking connector
  • Product Group: Electrical
  • Special Features: Watertight locking receptacle
  • Voltage Rating: 3� 250 V
  • Wiring Method: Back

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Manufacturing Equipment
  • Commercial Kitchen Appliances
  • Heavy Machinery Connections
  • Three-Phase Motor Applications
  • Professional Workshop Equipment
  • Industrial Process Equipment
  • Commercial HVAC Systems

Why Choose Eaton Quality?

Eaton Arrow Hart connectors provide dependable performance with commercial-grade construction and brass contact materials for long-term reliability. The thermoplastic housing withstands operating temperatures from -20 to 60�C, ensuring consistent performance across diverse industrial environments.

Manufacturer Resources

Product Specs

Amperage Rating:
20 A
Application:
Industrial
Contact Material:
Brass
Cord Diameter:
0.25-0.69 in (6.4 mm-17.5 mm)
Design Type:
Standard locking connector
Device Grade:
Commercial
Face Body Material:
Thermoplastic
Nema Configuration:
L15-20
Number Of Poles:
Three-pole
Number Of Wires:
4
Operating Temperature:
-20 to 60 °C (-4 to 140 °F)
Special Features:
Watertight locking receptacle
Voltage Rating:
3Ø 250 V
Wiring Method:
Back
Product Group:
Electrical
Department:
Electrical
Product Details:
Locking connector
Product Color:
Black
Product Material:
Thermoplastic
