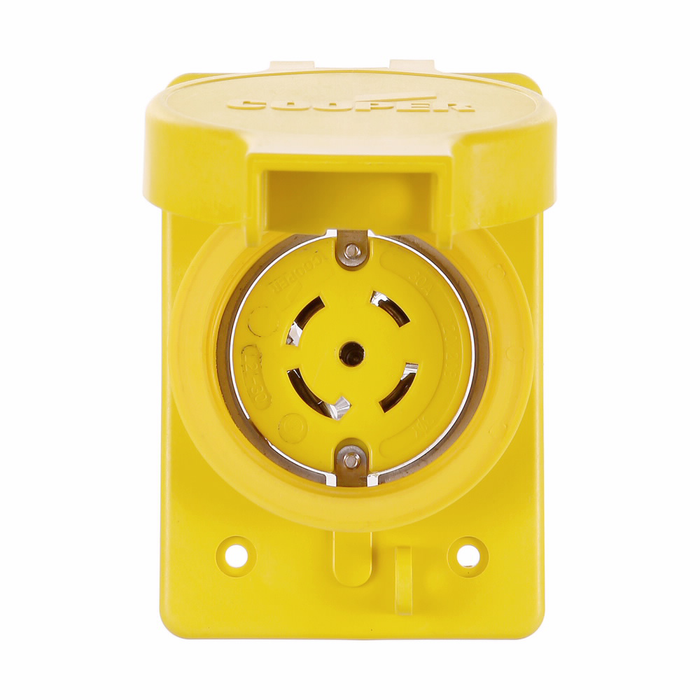

Eaton Arrow Hart Watertight Locking Receptacle, 30A 120/208V Industrial Grade
The Eaton Arrow Hart Watertight Locking Receptacle is an extra heavy-duty industrial specification grade single receptacle built for demanding power distribution applications. Rated 30A at 3øY 120/208V with a NEMA L21-30 configuration, this locking receptacle features a glass filled nylon face/body, nickel plated bronze contacts, and a watertight design backed by a NEMA 3R environmental resistance rating for wet and damp locations. It is cULus Listed and RoHS Compliant, making it a dependable choice for industrial, commercial, and outdoor power connections.
Key Features
- Amperage Rating: 30A for reliable industrial power delivery.
- Voltage Rating: 3øY 120/208 V, four-pole, five-wire configuration for three-phase distribution.
- NEMA Configuration: L21-30 locking configuration ensures a secure, twist-lock connection.
- Device Grade: Extra heavy-duty industrial specification grade for demanding environments.
- Durable Construction: Glass filled nylon face/body with nickel plated bronze contacts and overall thermoplastic material for strength and corrosion resistance.
- Watertight Design: Special watertight feature rated NEMA 3R for wet-location performance.
- Wiring Method: Back-wired design accepts #14-8 AWG wire across 5 wires.
- Dimensions: 4.25 in width x 6.75 in length/depth x 4 in height for a compact industrial footprint.
- Color: Yellow housing for high-visibility industrial identification.
Certifications & Compliance
- cULus Listed
- RoHS Compliant
- NEMA 3R Environmental Resistance
Technical Specifications
- Amperage Rating: 30A
- Number of wires: 5
- Number Of Poles: Four-pole
- Contact Material: Nickel plated bronze
- Voltage Rating: 3øY 120/208 V
- Allowable Wire Size: #14-8 AWG
- Face/Body Material: Glass filled nylon
Typical Applications
- Industrial Power Distribution Systems
- Portable and Temporary Power Equipment
- Outdoor and Wet-Location Installations
- Generator and Standby Power Connections
- Heavy Machinery and Industrial Equipment Wiring
Why Eaton?
Eaton's Arrow Hart line of watertight locking devices is engineered to extra heavy-duty industrial specification grade standards, combining glass filled nylon and nickel plated bronze construction with cULus Listed and RoHS Compliant credentials. The NEMA 3R watertight rating and secure L21-30 locking configuration make this receptacle a dependable, code-compliant choice for professional electrical installations that demand long-term durability in harsh conditions.
Manufacturer Resources
Product Specs
- Number Of Poles:
- Four-pole
- Contact material:
- Nickel plated bronze
- Product Width:
- 4.25 in
- Voltage Rating:
- 120/208V
- Amperage Rating:
- 30A
- Device grade:
- Extra heavy-duty industrial specification grade
- Product Color:
- Yellow
- NEMA configuration:
- L21-30
- Product Length/Depth:
- 6.75 in
- Special features:
- Watertight
- Application:
- Industrial
- Wiring method:
- Back
- Face/body material:
- Glass filled nylon
- Product Height:
- 4 in
- Product Type:
- Locking Receptacle
- Product Material:
- Thermoplastic
- Design type:
- Single receptacle
- Allowable wire size:
- #14-8 AWG
- Environmental resistance:
- NEMA 3R
- Receptacle type:
- Locking
- Compliances:
- RoHS Compliant
- Number of wires:
- 5
- Certifications:
- cULus Listed
- Department:
- Electrical
- Configuration:
- NEMA L21-30
- Listing:
- cULus
- Standards:
- NEMA 3R
- Product Group:
- Wiring Devices
