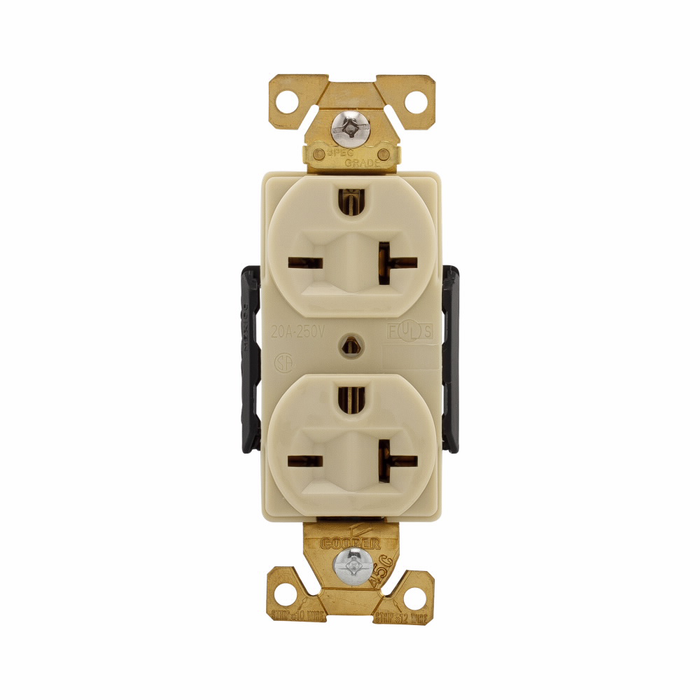

Eaton Arrow Hart Extra Heavy-Duty Industrial Specification Grade Duplex Receptacle

Eaton Arrow Hart Extra Heavy-Duty Industrial Specification Grade Duplex Receptacle

(No reviews yet) Write a Review

Model: AH5462V

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Arrow Hart Extra Heavy-Duty Industrial Specification Grade Duplex Receptacle

The Eaton Arrow Hart Extra Heavy-Duty Industrial Specification Grade Duplex Receptacle is engineered for professionals who demand dependable performance in commercial and industrial electrical systems. Built to extra heavy-duty industrial specification grade standards, this duplex receptacle delivers a robust, code-compliant connection point for two devices from a single wiring location. The unit is UL Listed and RoHS Compliant, giving electrical contractors and facility managers confidence in both safety certification and environmental responsibility. Its compact device footprint allows for straightforward installation into standard outlet boxes across new construction and retrofit projects.

Key Features

  • Industrial Specification Grade: Extra heavy-duty industrial specification grade construction built for demanding commercial and industrial electrical applications.
  • Duplex Configuration: Dual-outlet design allows two devices to be connected from a single receptacle, reducing wiring points.
  • Compact Device Dimensions: Measures .88 in wide by 1.3 in deep by 4.19 in high, fitting standard device box installations.
  • UL Listed: Certified to UL safety standards for reliable, code-compliant electrical performance.
  • RoHS Compliant: Manufactured without restricted hazardous substances, supporting environmentally responsible electrical projects.
  • Arrow Hart Heritage: Backed by the Eaton Arrow Hart line, recognized for specification-grade wiring devices in professional electrical work.

Certifications & Compliance

  • UL Listed
  • RoHS Compliant

Technical Specifications

  • Warranty: Refer to warranty document.
  • Certifications: UL
  • Product Type: Receptacle
  • Department: Electrical
  • Product Width: .88 in
  • Product Length/Depth: 1.3 in
  • Product Height: 4.19 in

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Duplex Outlet Wiring in Panels and Device Boxes
  • Heavy-Duty Equipment Power Connections
  • Renovation and New Construction Projects
  • Demanding Industrial and Facility Environments

Why Eaton?

Eaton's Arrow Hart wiring devices are built to extra heavy-duty industrial specification grade standards, backed by UL Listing and RoHS compliance for safe, dependable performance. This duplex receptacle is designed for professionals who need code-compliant, reliable wiring devices for demanding commercial and industrial electrical work.

Manufacturer Resources

Product Specs

Product Width:
.88 in
Warranty:
Refer to warranty document.
Product Length/Depth:
1.3 in
Compliances:
RoHS Compliant
Product Height:
4.19 in
Certifications:
UL
Product Type:
Duplex Receptacle
Department:
Electrical
Listing:
UL Listed
Grade:
Industrial Specification Grade
Configuration:
Duplex
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets
Product Weight:
0.129 lb
Product Length:
1.3 in

Eaton AH5462V – Frequently Asked Questions

1) What does industrial specification grade mean on the Arrow Hart AH5462V, and is it a step above a spec grade outlet?
Grade on the AH5462V is industrial specification grade, extra heavy-duty. That is the tier Eaton uses for receptacles going into plant floors, shops and facility equipment circuits where a device gets plugged and unplugged constantly. By comparison, the Pass & Seymour 26352W is listed as specification grade and the Bryant 5362B as heavy-duty, so the Eaton sits at the top end of that group for duty rating.
2) Is the Eaton AH5462V receptacle UL Listed and RoHS compliant for a spec job?
Both. The AH5462V is UL Listed and carries RoHS compliance, which covers the two boxes most commercial and institutional submittals ask about on a wiring device. If your spec calls out a hospital grade or GFCI device instead, this is not that part.
3) What is the closest equivalent to the Eaton Arrow Hart AH5462V duplex receptacle from another brand?
The Bryant 5362B is the nearest straight swap. It is a heavy-duty grade 20A/125V duplex receptacle, matching the Arrow Hart AH5462V's duplex configuration and industrial specification grade construction in a standard device-box body. Bryant also lists the 5362BI, a 20A/125V heavy-duty duplex in the same family, if you want the alternate color option on the same base device.
4) Can I use the Eaton AH5462V in a patient care area of a hospital?
No. The AH5462V is an industrial specification grade duplex receptacle, not a hospital grade device. For patient care spaces, use the Pass & Seymour 2097HGI, a hospital grade 20A duplex self-test GFCI receptacle in ivory, which carries both the hospital grade listing and self-test GFCI protection the AH5462V does not provide.
5) Will the Arrow Hart AH5462V work in a hazardous or wet industrial location?
The AH5462V is a standard device-box duplex receptacle for commercial and industrial wiring, not a sealed or explosionproof device. For classified areas, use the Appleton FSQC Series interlocked explosionproof receptacle, or the Appleton U-Line ECS factory-sealed 15 and 20 amp 3-pole plug and receptacle set where a factory-sealed cord connection is the requirement.
6) If I am standardizing duplex receptacles across a facility, what are the comparable options to the Eaton AH5462V?
For a like-for-like straight duplex in the heavy-duty and spec grade band, the Bryant 5362B and 5362BI are both 20A/125V heavy-duty duplex receptacles, and the Pass & Seymour 26352W is a 20A 125V heavy-duty spec grade decorator-style duplex in white. The Eaton AH5462V is the extra heavy-duty industrial specification grade choice. Decide on device style first, since the P&S is a decorator face and the others are standard.
7) Does the Eaton AH5462V meet a tamper-resistant requirement for a school or daycare?
The AH5462V is an industrial specification grade duplex and is not a tamper-resistant device. Where the code official is enforcing TR receptacles in occupied spaces, the Pass & Seymour 3232TRW Trademaster tamper-resistant duplex in white covers that requirement. Keep the Eaton for mechanical rooms, shops and equipment areas.
8) I need a twist-lock connection for equipment, not a straight-blade duplex. What replaces the AH5462V?
The Eaton Arrow Hart AH5462V is a straight-blade duplex device and will not accept a locking plug. For locking connections, use the Bryant 70520FR 7 Series NEMA flanged locking receptacle for a surface or panel-mounted flanged inlet-style outlet, or the Pass & Seymour Turnlok 30A non-NEMA single receptacle where the equipment uses a 30A Turnlok configuration.
9) Can the Arrow Hart AH5462V be used on a 277V motor circuit?
No. The AH5462V is a 125V-class duplex receptacle for general commercial and industrial device box wiring. For a 277V motor circuit, use the Bryant 430R9W, a 4750DR series 2-pole 3-wire 277V motor-duty receptacle built for that voltage and duty.
10) What is the exact part number to order this Eaton Arrow Hart industrial duplex receptacle under?
Order it as Eaton Arrow Hart AH5462V. That is the manufacturer part number for the extra heavy-duty industrial specification grade duplex receptacle, and it is the single model this device is sold under.
