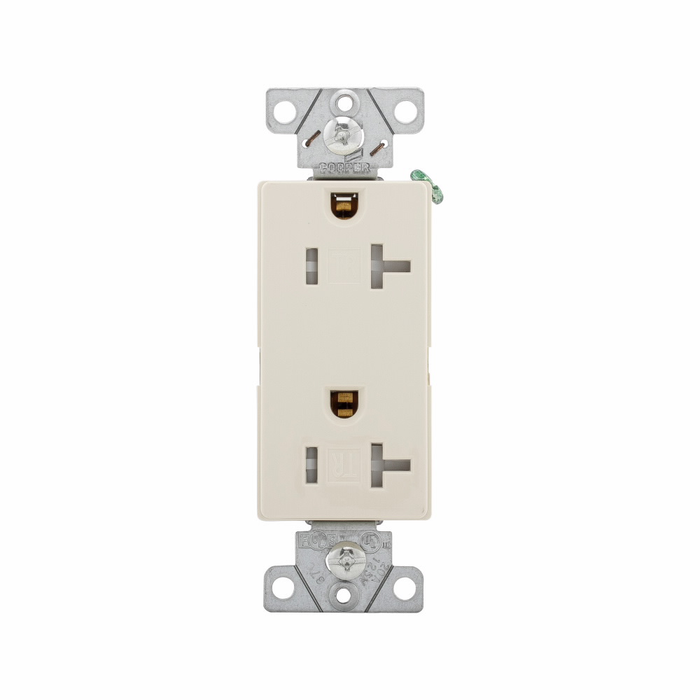

Eaton Heavy-Duty Industrial Specification Grade Decorator Duplex Receptacle

Eaton Heavy-Duty Industrial Specification Grade Decorator Duplex Receptacle

(No reviews yet) Write a Review

Model: TR6352LA-BOX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$12.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Heavy-Duty Industrial Specification Grade Decorator Duplex Receptacle

The Eaton Heavy-Duty Industrial Specification Grade Decorator Duplex Receptacle is engineered for professional electrical installations that demand consistent, code-compliant performance. This decorator-style duplex receptacle accepts a #14-10 AWG wire range for flexible termination on a variety of branch-circuit conductors, and it is cULus Listed for verified safety and quality. Built to industrial specification grade standards, it is suited for commercial, institutional, and industrial environments where durability and dependable contact performance are essential.

Key Features

  • Wire Range: Accepts #14-10 AWG conductors, giving installers flexibility across common branch-circuit wire gauges.
  • Industrial Specification Grade: Heavy-duty construction built to specification grade standards for demanding commercial and industrial applications.
  • Decorator Duplex Configuration: Slim, modern decorator styling combines two receptacle outlets in a single compact device.
  • Compact Device Dimensions: Measures approximately .84 in wide, 4.19 in high, and 1.32 in deep for standard wallbox compatibility.
  • Listed for Compliance: cULus Listed to support safe, code-compliant installations.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Product Width: .84 in
  • Product Height: 4.19 in
  • Product Length/Depth: 1.32 in
  • Certifications: cULus Listed
  • Warranty: Refer to warranty document.
  • Product Type: Receptacle

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Office, Retail, and Institutional Buildings
  • Wiring Device Retrofits and Upgrades
  • New Construction Projects
  • General-Purpose Duplex Outlet Applications

Why Eaton?

Eaton builds this decorator duplex receptacle to industrial specification grade standards, backing it with cULus Listing so electrical professionals can specify it with confidence. The combination of a broad #14-10 AWG wire range and specification-grade construction makes it a dependable choice for demanding, code-compliant electrical work.

Manufacturer Resources

Product Specs

Product Width:
.84 in
Warranty:
Refer to warranty document.
Product Height:
4.19 in
Product Length/Depth:
1.32 in
Certifications:
cULus Listed
Product Type:
Duplex Receptacle
Department:
Electrical
Configuration:
Duplex
Listing:
cULus
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets
Product Length:
1.32 in
Product Weight:
0.22 lb

Eaton TR6352LA-BOX – Frequently Asked Questions

1) Will this Eaton decorator receptacle fit a standard wallbox?
Yes. The device measures .84 x 4.19 x 1.32 inches, which is a standard single-gang decorator strap footprint, and the 1.32 inch depth keeps it shallow enough for typical wallbox wire fill. It takes a decorator (rectangular opening) wallplate, not a duplex-hole plate.
2) What else does ZenSupply carry if I need a white spec grade decorator duplex instead of this Eaton?
The Pass & Seymour 26352W is the closest cross-brand match, a 20A 125V heavy-duty spec grade decorator duplex in white. Same decorator body style and same grade class, different manufacturer, so it is a straight swap if your job spec calls for white or for P&S.
3) Can the Eaton TR6352LA-BOX be used where a GFCI is required at the outlet, or do I need a different receptacle?
No - the Eaton TR6352LA-BOX is a standard decorator duplex receptacle with no ground-fault protection built in. Where the outlet itself must provide GFCI protection, the Pass & Seymour 2097HGI is a hospital grade 20A duplex self-test GFCI receptacle in ivory, which covers both the GFCI requirement and hospital grade work in patient-care areas. Use the Eaton downstream of protection, or on circuits that do not require it.
4) Does the Eaton TR6352LA-BOX work in a hazardous or classified area?
No. The Eaton TR6352LA-BOX is a cULus Listed general-purpose decorator duplex receptacle for commercial, institutional and industrial rooms, not a classified-location device. For hazardous areas, the Appleton FSQC Series interlocked explosionproof receptacle is the correct family, and the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set is a 3-pole factory-sealed alternative. These are not interchangeable with a wallbox duplex device.
5) What is the closest cross-brand equivalent to the Eaton TR6352LA-BOX decorator duplex receptacle?
The Pass & Seymour 26352W is the nearest match in form and class: it is a 20A 125V heavy-duty spec grade decorator duplex receptacle in white. Like the Eaton TR6352LA-BOX, it is a specification grade decorator-style duplex device, so it drops into the same single-gang wallbox and takes the same decorator wallplate. The visible difference is color - the P&S unit is white, where the Eaton part number carries the LA (light almond) designation.
6) For a tenant unit or any dwelling area needing tamper-resistant outlets, is the Eaton TR6352LA-BOX the right device or should I pick something else?
Where the job calls specifically for a tamper-resistant device, the Pass & Seymour 3232TRW Trademaster tamper-resistant duplex receptacle in white is the one to spec - tamper resistance is built into its shutters. The Eaton TR6352LA-BOX is an industrial specification grade decorator duplex built for commercial and institutional work; property managers standardizing on TR for residential-occupancy rooms should use the TR device in those locations.
7) Is the Eaton TR6352LA receptacle listed for code-compliant commercial work?
It is cULus Listed, which covers installations in both the US and Canada. That listing plus spec grade construction is what inspectors and electrical contractors look for on commercial, institutional, and industrial branch circuits.
8) What is the difference between a spec grade receptacle and a residential grade one for an office build-out?
Specification grade devices like this Eaton decorator duplex use heavier contact construction intended for repeated plug cycles in commercial and institutional spaces. Residential grade parts are built for far lighter duty. For office, retail, or institutional buildings where tenants plug and unplug daily, the spec grade device is the one that holds blade tension over time.
9) Is this Eaton decorator duplex tamper resistant?
Tamper resistance is not part of what this Eaton spec grade decorator duplex is built around. Where a code-required tamper-resistant outlet is called for, such as dwelling units, schools, or daycare spaces, the Pass & Seymour 3232TRW Trademaster tamper-resistant duplex is the device to specify.
10) Can I use this receptacle for a locking or twist-lock connection?
No. This Eaton device is a straight-blade decorator duplex. If the equipment needs a locking connection, the Bryant 70520FR flanged locking receptacle or the Pass & Seymour Turnlok 30A single receptacle are the locking-style options to look at instead.
11) I am standardizing outlets across a building in a light almond finish - what is the color logic between the Eaton TR6352LA-BOX and the comparable spec grade duplexes?
The Eaton TR6352LA-BOX carries the LA light almond designation in a decorator face. If white is the building standard, the Pass & Seymour 26352W is a heavy-duty spec grade decorator duplex in white with the same decorator wallplate opening. If the standard is ivory in a traditional face, the Bryant 5362BI is a heavy-duty 20A/125V duplex in ivory. Match the face style first - decorator and traditional devices need different wallplates.
12) What looks like a substitute for the Eaton TR6352LA-BOX but will not accept a standard cord cap?
Locking devices. The Bryant 70520FR is a 7 Series NEMA flanged locking receptacle and the Pass & Seymour Turnlok 30A non-NEMA single receptacle is a twist-lock single outlet - both need a matching locking plug and neither takes a straight-blade cord. The Bryant 430R9W 4750DR is a 2-pole 3-wire 277V motor-duty receptacle, a different voltage and duty class entirely. The Eaton TR6352LA-BOX is a straight-blade decorator duplex for ordinary plug-in loads.
13) What is the correct part number to order this Eaton decorator receptacle?
Order Eaton TR6352LA-BOX. That is the manufacturer part number for the heavy-duty industrial spec grade decorator duplex, supplied in box quantity.
