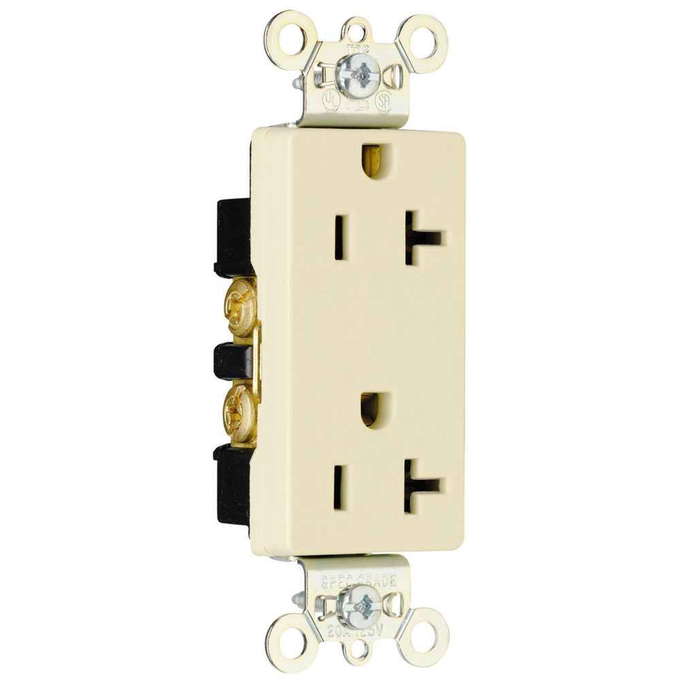

Pass & Seymour 26352 20A 125V Heavy-Duty Specification Grade Decorator Duplex Receptacle

Pass & Seymour 26352 20A 125V Heavy-Duty Specification Grade Decorator Duplex Receptacle

(No reviews yet) Write a Review

Model: 26352I

In Stock (leaves warehouse same day if ordered before 3pm ET)

$28.00
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour 26352W 20A 125V Heavy-Duty Spec Grade Decorator Duplex Receptacle, White

The Pass & Seymour 26352W is a 20A, 125V heavy-duty specification grade decorator duplex receptacle finished in white, engineered for demanding commercial and industrial wiring applications. Backed by cULus Listing and Federal Spec Listed status, this receptacle combines a compact heavy-duty body with an impact-resistant nylon face for long-lasting performance. Its auto-ground clip and corrosion-resistant plated steel strap deliver dependable grounding and structural integrity in high-use installations.

Key Features

  • Electrical Rating: 20A, 125V heavy-duty specification grade construction for demanding commercial use.
  • Auto-Ground Clip: Assures positive ground for reliable, code-compliant grounding performance.
  • Heavy-Duty Compact Design: Easier installation and long-lasting performance in high-traffic applications.
  • Temperature Performance: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current; operating range of +60°C maximum continuous to -40°C minimum without impact.
  • Durable Construction: Corrosion-resistant plated steel strap locked into the assembly to prohibit the strap from bending away from the body.
  • Impact-Resistant Nylon Face: Adds toughness and durability against everyday wear.
  • Split-Circuit Wiring: Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Terminal Design: Tri-drive terminal and mounting screws with terminal compartments isolated from each other for positive conductor containment; fits standard #26 opening wallplates.

Certifications & Compliance

  • Federal Spec Listed
  • cULus Listed

Technical Specifications

  • Country Of Origin: Mexico
  • Product Finish: Matte
  • Product Height: 2.635 in
  • Product Line: Pass & Seymour
  • Product Width: 1.322 in
  • Product Depth: 0.78 in

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Specification-Grade Wiring Device Upgrades
  • Decorator-Style Duplex Outlet Replacement
  • Heavy-Duty, High-Use Receptacle Installations
  • Renovation and New Construction Wiring

Why Pass & Seymour?

Pass & Seymour builds the 26352W with a corrosion-resistant plated steel strap, impact-resistant nylon face, and isolated terminal compartments to deliver dependable, code-compliant performance. With Federal Spec and cULus Listing, this heavy-duty specification grade duplex receptacle is built for professionals who need reliable electrical connections in demanding environments.

Manufacturer Resources

Spec Sheet

Product Specs

Product Material:
Nylon
Voltage Rating:
125V
Listing:
cULus
Product Type:
Duplex Receptacle
Department:
Electrical
Product Group:
Wiring Devices
Amperage Rating:
20A
Product Subgroup:
Receptacles & Outlets
Product Width:
1.322 in
Product Height:
2.635 in
Product Depth:
0.78 in

Pass & Seymour 26352I – Frequently Asked Questions

1) Will a standard decorator wallplate fit the Pass & Seymour 26352 receptacle?
Yes. The 26352 is a decorator-style duplex and takes standard #26 opening wallplates, so any decorator/rocker-style plate in your building's finish will cover it. Plates are not included, so add them to the order.
2) Can the Pass & Seymour 26352 be split-wired for two separate circuits?
It can. There's a break-off line-contact connecting tab on the brass side that snaps out with pliers, letting you feed the top and bottom halves from different circuits or switch one half. Terminal compartments are isolated from each other, which keeps stray strands out of the adjacent connection once you've split it.
3) Is the 26352 approved for a government or federal job spec?
The 26352 is Federal Spec Listed and carries a cULus Listing, which is what most government and institutional specs call for on spec-grade wiring devices. That listing combination is the usual gate on federal and public-agency submittals.
4) Will the 26352 fit in a shallow or crowded existing box?
Body depth is 0.78 in, with the device measuring 2.635 in by 1.322 in, and Pass & Seymour builds this one on a heavy-duty compact body, so it goes back into older shallow boxes with less fight than a full-size spec device. That compact body is the reason it is a reasonable retrofit choice on renovation work rather than new boxes only.
5) My facility requires hospital grade outlets. Can I use the Pass & Seymour 26352?
No. The Pass & Seymour 26352 is a heavy-duty specification grade device, cULus Listed and Federal Spec Listed, but it is not a hospital grade receptacle. Where patient care areas call for hospital grade, the Leviton 16262-HGW is a hospital grade duplex receptacle in white, supplied in packs of 100. Use the 26352 for general commercial and industrial circuits where spec grade is acceptable.
6) What is the closest equivalent to the Pass & Seymour 26352 from another brand?
The Pass & Seymour 26352 is a 20A, 125V heavy-duty specification grade decorator duplex receptacle. The closest decorator-style peer is the Leviton 16342 Decora Plus commercial grade duplex receptacle, rated 20-amp 125-volt NEMA 5-20R in white. Both are flush decorator-face duplex devices at the same 20A/125V rating; the Leviton is listed as commercial grade while the 26352 is a heavy-duty specification grade device with an impact-resistant nylon face and auto-ground clip.
7) If I do not need the decorator face, what 20A/125V heavy-duty duplex should I use instead?
For a standard straight-blade face rather than a decorator opening, the Bryant 5362B is a heavy-duty 20A/125V duplex receptacle, and the Bryant 5362BI is the same heavy-duty 20A/125V duplex in ivory. The Pass & Seymour 26352 carries the same 20A, 125V rating but uses a decorator face that fits standard #26 opening wallplates, so the wallplate style differs between the two choices.
8) Can I use the 26352 on a 15A circuit, or does it need a 20A circuit?
The 26352 is rated 20A at 125V. On a 20A branch circuit it carries the full rating; wired on a 15A circuit the breaker still governs, so you get 15A of usable capacity from a 20A-rated device. The 20A face also accepts the T-slot 20A plug a 15A-only receptacle will not take.
9) Do I still need to run a separate ground wire to this receptacle in a metal box?
The 26352 has an auto-ground clip that bonds the strap to a grounded metal box through the mounting screw. The green grounding terminal is still there and local practice or the job spec may require a bonding jumper to it, so treat the clip as a backup path rather than a reason to skip the wire.
10) What colors does the Pass & Seymour 26352 come in?
Two: white (26352-W) and ivory (26352I). The face is matte nylon, so it matches other matte spec-grade devices rather than the glossy residential look. If you are standardizing a building, pick the one that matches your existing plates since there is no other color on this model.
11) Will this receptacle hold up in an unheated warehouse or a cold loading dock?
Yes. Operating range runs from +60 C maximum continuous down to -40 C minimum without impact, and the nylon face is impact-resistant, so cold-weather brittleness at the face is not the failure point it is on cheaper thermoplastic devices. The device also holds a maximum 30 C rise at full rated current after 50 overload cycles at 150% of rating.
12) How is a spec-grade receptacle like this different from a commercial-grade 20A outlet?
On the 26352 the differences are physical: a corrosion-resistant plated steel strap locked into the assembly so it cannot bend away from the body, an impact-resistant nylon face, and tri-drive terminal and mounting screws. In the commercial-grade tier we carry the Leviton Decora Plus 16342, also 20A 125V NEMA 5-20R in white, and the Leviton 16352-1PW heavy-duty straight blade duplex. Decorator face either way; the spec-grade body is the one to put on high-cycle outlets and the one a federal spec will accept.
13) I need more than two outlets at one location but only have one box. Is this the right part?
The 26352 is a duplex, two outlets in one single-gang opening. If you need four at one yoke, the Bryant 21254IGO is a quad straight-blade receptacle, NEMA 5-20R, 20A, which gives you four openings on a single device. For a single large outlet, the Eaton 6450W is an industrial spec grade decorator single receptacle.
14) Will the Pass & Seymour 26352 work in a hazardous or wash-down area?
No. The Pass & Seymour 26352 is a nylon-faced decorator duplex receptacle for standard commercial and industrial boxes. For classified or sealed locations, the Appleton FSQC Series interlocked explosionproof receptacle and the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set, 3-pole, are the devices built for that duty. Keep the 26352 to general interior branch circuits.
15) I only need 15A devices. What is the comparable option to the 26352?
The Pass & Seymour 26352 is a 20A, 125V device. For 15A circuits, the Eaton Arrow Hart 5262W is a heavy-duty industrial duplex receptacle rated 15A 125V with a 5-15R configuration in gray, and the Eaton 816W-BOX is a commercial specification grade single receptacle rated 15A. Note the Eaton 816W is a single rather than a duplex outlet.
16) I need more than two outlets at one location. What should I use instead of two 26352 receptacles?
The Bryant 21254IGO is a quad straight-blade receptacle, NEMA 5-20R, rated 20A, giving four outlets in one device at the same 20A rating as the Pass & Seymour 26352 duplex. The 26352 provides two outlets in a decorator face and offers a break-off connecting tab for split-circuit wiring if you need the two halves on separate circuits.
17) Is the Bryant 430R9W or Eaton 7379 an alternative to the Pass & Seymour 26352?
Neither is interchangeable. The Bryant 430R9W 4750DR is a 2-pole 3-wire 277V motor-duty receptacle, and the Eaton 7379 is an industrial locking receptacle rated 50A, 600V/250V AC/DC in black, classed extra heavy duty. The Pass & Seymour 26352 is a 20A, 125V straight-blade decorator duplex for standard 125V branch circuits, so the voltage and the plug configuration differ in both cases.
18) Where is the Pass & Seymour 26352 made?
Country of origin is Mexico. Worth knowing on public jobs where domestic-content language applies to wiring devices.
