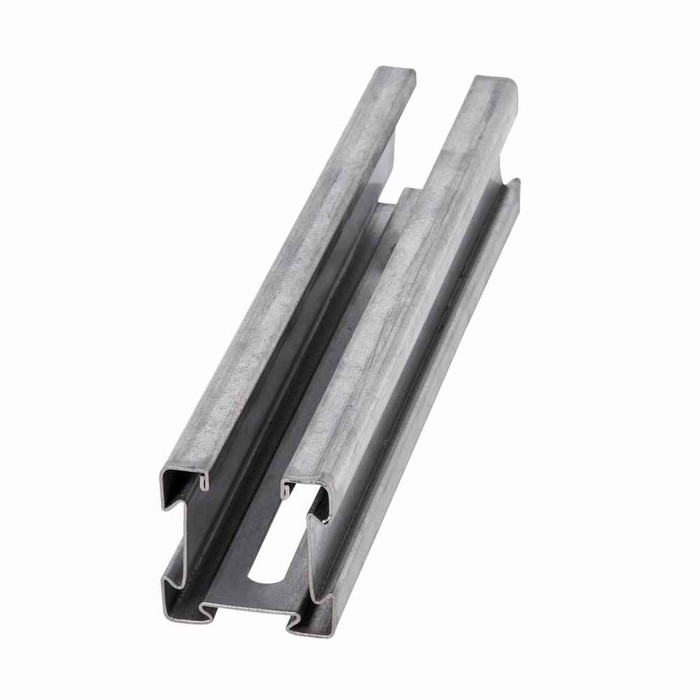

Eaton B-Line series 4Dimension strut channel
Manufacturer Resources
Product Specs
- Certifications:
- Not Applicable
- Channel Type:
- 4D22
- Hole Pattern:
- S
- Material Gauge:
- 18 Gauge
- Product Height:
- 2.12 IN
- Product Length Depth:
- 120 IN
- Product Weight:
- 16.03 LB
- Product Width:
- 2.12 IN
- Department:
- Electrical
- Product Finish:
- Stainless steel type 316
- Product Material:
- Steel
B-LINE 4D22S-120SS6 – Frequently Asked Questions
1) Is the 4D22S-120SS6 strut channel stainless, and will it hold up outdoors or in a wet environment?
It is Type 316 stainless steel, which is the grade specified for coastal, chemical, wastewater, food processing and washdown areas where plain galvanized strut corrodes out. If your run is indoors and dry, 316 is more corrosion protection than the job needs; if it is on a roof near salt air, in a tunnel, or over a pool deck, this is the material to spec.
2) Do standard strut nuts and fittings work with 2.12 inch B-Line 4Dimension channel?
Hardware has to match the channel series. The 4D22 is a 2.12 inch square 4Dimension section, not the 1-5/8 inch profile most generic spring nuts and fittings are cut for, so order nuts, clamps and brackets called out for the 4Dimension 4D22 size. Mixing in 1-5/8 inch fittings leaves the nut loose in the slot and the connection will not develop its rated grip.
3) What does the S in 4D22S mean for the hole pattern?
The S designates the slotted hole pattern, so the channel comes punched along its length rather than solid. Slotted strut lets you drop a spring nut in anywhere along the run and adjust hanger spacing on site without drilling, which is what you want for pipe trapezes, cable tray supports and conduit racks. If your layout needs an unpunched face for a continuous weld or a clean finish, the slotted version is the wrong pick.
4) What gauge is this B-Line 4Dimension channel?
18 gauge steel. That is a lighter wall than the 12 gauge strut used for heavy structural trapezes, so the 4D22S suits conduit runs, small pipe, cable tray and equipment mounting rather than long-span heavy loads. Where the drawing calls out a specific gauge, match it; substituting a lighter section into a run sized for 12 gauge changes the load capacity of the support.
5) What part number do I order for the 10 foot 316 stainless 4Dimension slotted strut?
Order Eaton B-Line 4D22S-120SS6. The number reads out as the 4D22 channel profile, S for slotted, 120 for the 120 inch length and SS6 for Type 316 stainless. That is the whole configuration, so there is nothing further to specify on the channel itself; fittings, nuts and end caps are ordered separately.
